echnical Specification
POE-24-7W-G-WH (Low-Power)
Dimensions 72 x 45 x 33 mm (2.8 x 1.8 x 1.3")
Weight 72.1g (2.5 oz)
Output voltage 24V DC @ 0.3A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset capability Yes
Reset button Yes
Rated voltage 100-240V AC @ 50/60Hz
Input current 0.3A @ 120V AC, 0.2A @240V AC
Inrush current <40A peak @ 120V AC, <70A peak @ 230V AC
Efficiency 80+%
Output ripple 1% Max.
Switching frequency 65 kHz
Line regulation ? 3%
Load regulation ? 5%
2-pair powering Pins 4, 5 (+) and pins 7, 8 (-)
4-pair powering –
Storage temperature -30 to 70°C (-22 to 158°F)
Ambient operating temperature 0 to 40°C (32 to 104°F)
Operating humidity 35 to 95% noncondensing
AC connector IEC-320 C6
Data IN / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 µs) power
Peak pulse current 36A (10/1000 µs) data
Shunt capacitance <5 pf data
Response time <1 ns
Certifications CE, FCC, IC, UL
POE-24-12W-G (Mid-Power)
Dimensions 87 x 44 x 29 mm (3.4 x 1.7 x 1.1")
Weight 99 g (3.5 oz)
Output voltage 24V DC @ 0.5A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset capability Yes
Reset button Yes
Rated voltage 100-240V AC @ 50/60Hz
Input current 0.3A @ 120V AC, 0.2A @ 240V AC
Inrush current <30A peak @ 120V AC, <60A peak @ 230V AC
Efficiency 75+%
Output ripple 1% Max.
Switching frequency 50 kHz
Line regulation ? 3%
Load regulation ? 5%
2-pair powering Pins 4, 5 (+) and pins 7, 8 (-)
4-pair powering -
Storage temperature -30 to 70°C (-22 to 158° F)
Ambient operating temperature 0 to 40° C (32 to 104° F)
Ambient operating humidity 35 to 95% noncondensing
AC connector IEC-320 C6
Data IN / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 µs) power
Peak pulse current 36A (10/1000 µs) data
Shunt capacitance <5 pF data
Response time <1 ns
Certifications CE, FCC, IC, UL

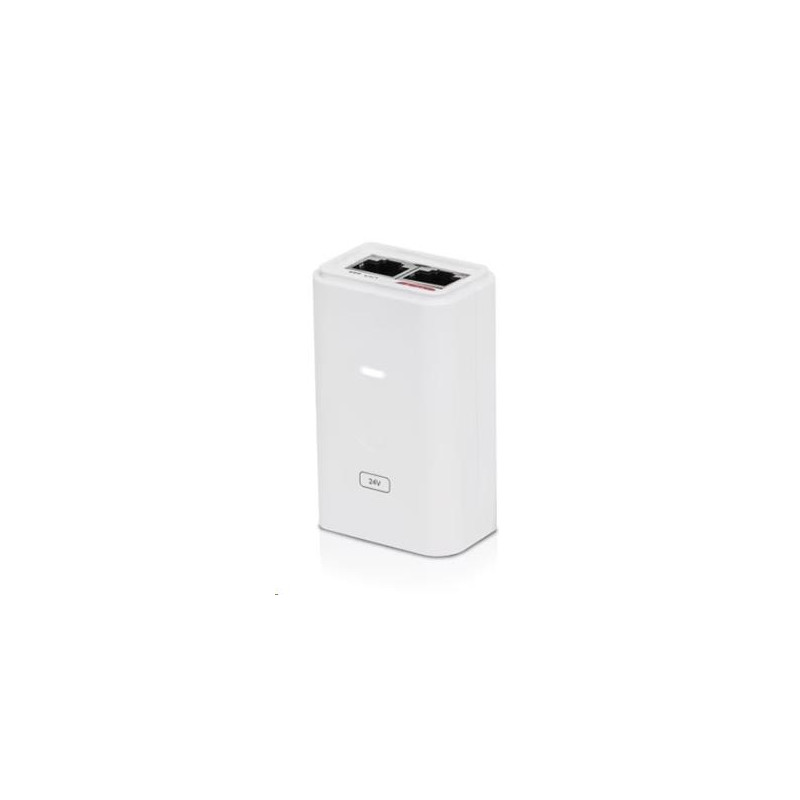

POE-24-24W-G (Hi-Power)
Dimensions 88 x 57 x 33 mm (3.5 x 2.2 x 1.3")
Weight 159 g (5.6 oz)
Output voltage 24V DC @ 1.0A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset capability Yes
Reset button Yes
Rated voltage 100-240V AC @ 50/60Hz
Input current 0.6A @ 120V AC, 0.4A @ 240V AC
Inrush current <60A peak @ 120V AC, <120A peak @ 230V AC
Efficiency 80+%
Output ripple 1% Max.
Switching frequency 65 kHz
Line regulation ? 3%
Load regulation ? 5%
2-pair powering Pins 4, 5 (+) and pins 7, 8 (-)
4-pair powering -
Storage temperature -30 to 70°C (-22 to 158° F)
Ambient operating temperature 0 to 40° C (32 to 104° F)
Ambient operating humidity 35 to 95% noncondensing
AC connector IEC-320 C6
Data IN / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 µs) power
Peak pulse current 36A (10/1000 µs) data
Shunt capacitance <5 pF data
Response time <1 ns
Certifications CE, FCC, IC, UL
