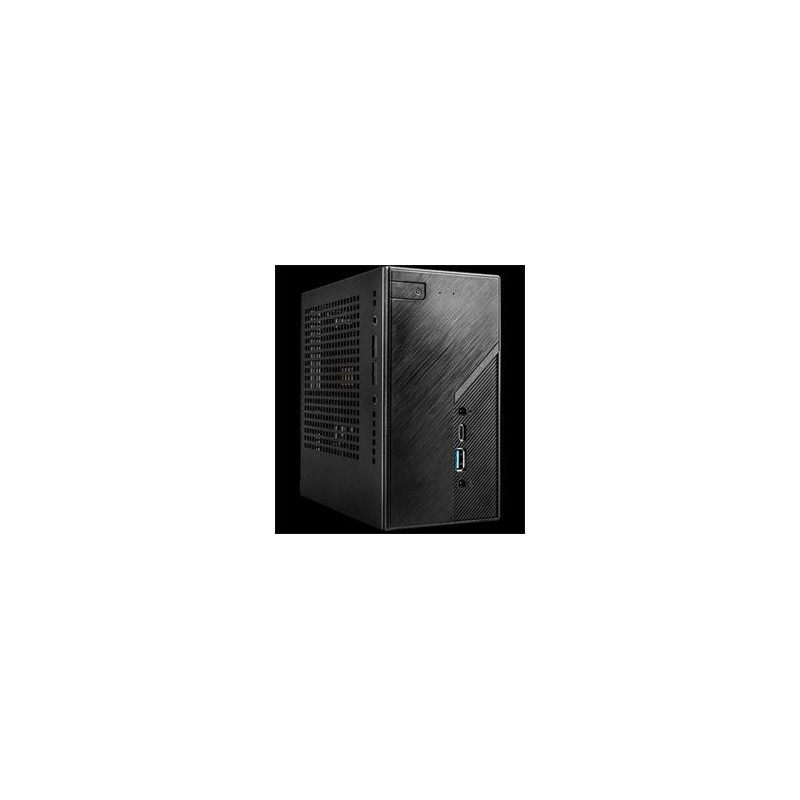

ASRock mini PC B660 1x LGA1700 (65W),2x SODIMM DDR4, 2xM.2+2x 2,5 SATA,1Gb LAN, HDMI, DP, VGA, 120W

Mini PC B660 podporuje procesory Intel 12. generace (LGA1700) do 65W. Nabízí 2 sloty pro DDR4 RAM až 64GB, multivideo výstupy včetně HDMI a DisplayPort, a sloty pro 2 M.2 SSD a 2 HDD/SSD s RAID. Disponuje také gigabitovým LAN a různými USB porty. Rozměry: 155 x 155 x 80 mm.
Skladem
5 470 Kč bez DPH 4 520 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
ASROCK
1503893
DESKMINI B660/B/BB/BOX
24 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu
DeskMini B660 Series
  • Supports 12th Gen Intel Core™ Processors (LGA1700), up to 65W
  • Dual DDR4-3200MHz SO-DIMMs, up to 64GB
  • Multi Video Outputs:2 x DisplayPort, HDMI & D-Sub
  • 1 x USB 3.2 Gen2x2 Type-C port (20 Gb/s)
  • 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (with USB Type-C Alt Mode)
  • 1 x USB 3.2 Gen2 Type-A port (10 Gb/s)
  • 1 x Blazing M.2 (PCIe Gen5 x4) Slot
  • 1 x Hyper M.2 (PCIe Gen4 x4) Slot
  • 2 x 2.5" HDD/SSD with RAID 0/1
  • 1 x M.2 Key-E for Wi-Fi

DeskMini B660

  • CPU
    - Supports 12th Gen Intel® Core™ Processors (LGA1700), Max. TDP 65W
  • Cooler
    - Supports Intel® CPU Cooler (Max. Height ? 47mm)
  • Memory
    - Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC)
  • Chipset
    - Intel® B660
  • Graphics
    - HDMI (4K@60Hz)
    - DisplayPort 1.4
    - DisplayPort 1.4 (over USB Type-C Alt Mode)
    - D-Sub

    *Supports up to 4 displays simultaneously
  • Audio
    - Realtek ALC269 Audio Codec
  • Storage
    - 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)
    - 1 x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

    *Supports Intel® Optane™ Technology
    Supports NVMe SSD as boot disks
    Supports Intel® Volume Management Device (VMD)
  • LAN
    - Gigabit LAN (Intel® I219V)
  • WLAN
    - 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel® CNVi (Integrated Wi-Fi/BT)
  • Front I/O
    - 1 x MIC-In
    - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
    - 1 x Head Phone with MIC Jack
  • Rear I/O
    - 1 x DC-In Jack (Compatible with the 19V power adapter)
    - 1 x D-Sub Port
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode)
    - 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
    - 2 x USB 2.0 Ports (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED
  • Connectors
    - 1 x USB 2.0 Header
    - 1 x Front Panel Header
    - 2 x 4-Pin fan connectors (CPU, SYS)
    - 1 x Internal Speaker Header (4-Pin)
    - 1 x Audio Header (4-Pin)
  • Accessory
    - 2 x SATA Data with Power Cable
    - 1 x 120W/19V adapter
    - 1 x Screws Pack
  • Dimension
    - 155 x 155 x 80 mm (1.92L)
  • OS
    - Microsoft® Windows® 10 64-bit / 11 64-bit
