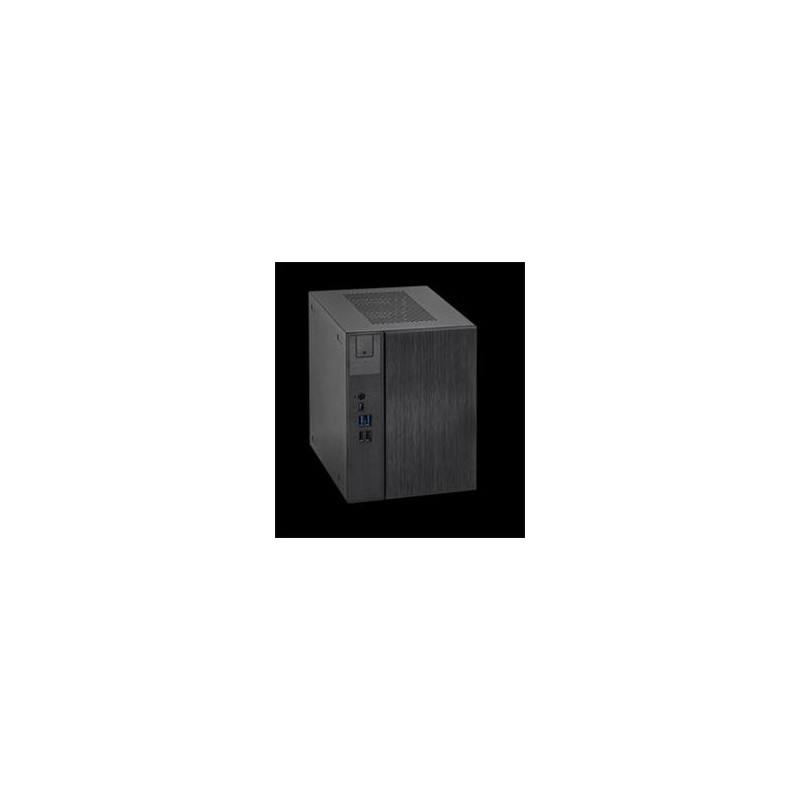

ASRock PC DeskMeet B660 LGA1700(65W), 4x DIMM DDR4, PCIe x16, 2x M.2 + M.2E, 3x SATA,1Gb LAN, HDMI, DP, VGA, 500W
Deskový počítač podporuje procesory Intel 12. generace, má 4 sloty pro DDR4 paměť až 128GB, PCIe x16, 2 M.2 a 3 SATA porty. Nabízí vícero grafických výstupů, 1Gb LAN a kompaktní rozměr 8L s napájením 500W.
6 694 Kč bez DPH 5 533 Kč
Popis produktu
- Supports 12th Gen Intel Core™ Processors (LGA1700)
- Supports MAX Height ? 54mm CPU Cooler
- Supports 4 x DDR4-3200MHz DIMMs, up to 128GB
- 1 x PCIe 4.0 x16
- Graphics Output Options:DisplayPort, HDMI & D-Sub
- 3 x SATA3
- 1 x Hyper M.2 (PCIe Gen4 x4 & SATA3)
1 x Hyper M.2 (PCIe Gen4 x4) - 1 x USB 3.2 Gen1 Type-C Port
- 4 x USB 3.2 Gen1 Type-A port (2 Front, 2 Rear)
- 4 x USB 2.0 Type-A port (2 Front, 2 Rear)
- 1 x M.2 Key-E for Wi-Fi
- 500W power supply (80+ Bronze)
- 8 Liter compact size
-
CPU- Supports 12th Gen Intel® Core™ Processors (LGA1700)
-
Cooler- Supports Intel® CPU Cooler (Max. Height ? 54mm)
-
Memory- Supports Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM slots (Max. 128GB)
- Supports DDR4 3200/2933/2800/2666/2400/2133 non-ECC, un-buffered memory*
*Supports DDR4 3200 natively. -
Chipset- Intel® B660
-
Graphics- Supports a discrete Dual slot Graphics card up to 20CM
-
Audio- Realtek ALC897 Audio Codec
-
Storage- 3 x SATA3 6.0Gb/s ports
- 1 x Hyper M.2 Socket (M2_1), supports type 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
*Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
Supports Intel® Volume Management Device (VMD) -
LAN- Giga PHY Intel® I219V
-
Expansion Slots- 1 x PCIe 4.0 x 16
- 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel® CNVi (Integrated Wi-Fi/BT) -
Front I/O- 1 x Headphone/Headset Jack
- 1 x USB 3.2 Gen1 Type-C
- 2 x USB 3.2 Gen1 Type-A
- 2 x USB 2.0 Type-A -
Rear I/O- 1 x DisplayPort 1.4
- 1 x HDMI
- 1 x D-Sub
- 2 x USB 2.0
- 2 x USB 3.2 Gen1 Type-A
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone -
Connectors- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis/Water Pump Fan Connectors (4-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Header
- 1 x USB 2.0 Headers (Support 2 USB 2.0 ports) (Supports ESD Protection) -
Volume (liters)- 8L
-
Power Unit- 500W power supply (80+ Bronze, peak 550W)
-
Accessory- Quick Installation Guide
- 2 x SATA Data Cables
- 1 x Screws Package -
Dimension- 168 (W) x 219.3 (D) x 218.3(H) mm (excl. Protrusions)
- 168 (W) x 236.1 (D) x 221.6(H) mm (incl. Protrusions) -
OS- Microsoft® Windows® 10 64-bit / 11 64-bit
Deskový počítač podporuje procesory Intel 12. generace, má 4 sloty pro DDR4 paměť až 128GB, PCIe x16, 2 M.2 a 3 SATA porty. Nabízí vícero grafických výstupů, 1Gb LAN a kompaktní rozměr 8L s napájením 500W.
