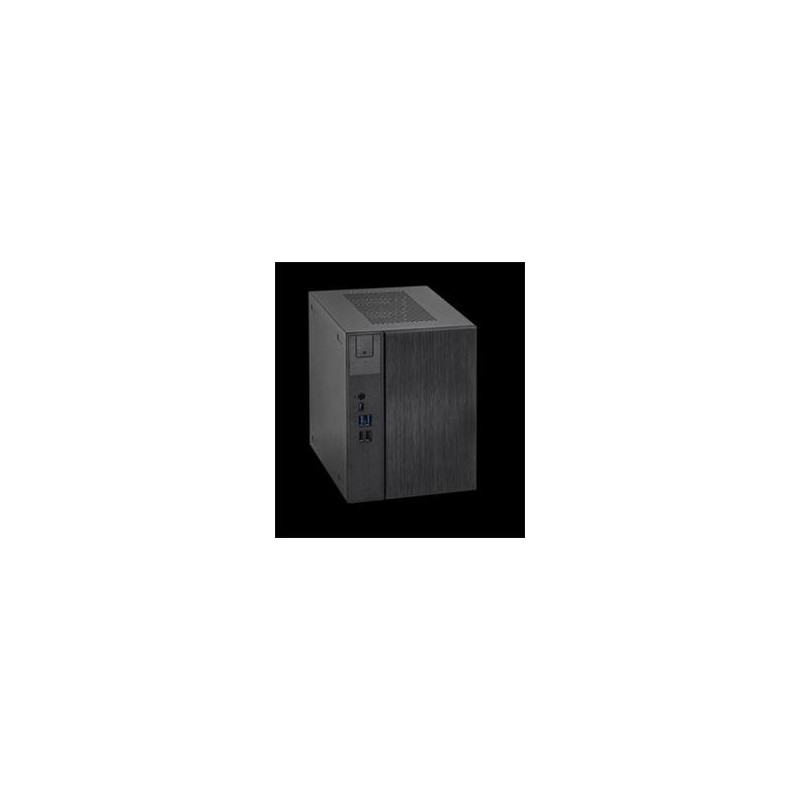

ASRock PC DeskMeet X300 1x AM4 APU(65W),4x DIMM DDR4, PCIe x16, M.2 + M.2E, 2x SATA,1Gb LAN, HDMI, DP, VGA, 500W

Kompaktní počítačový systém s podporou procesorů AMD AM4 do 65W. Nabízí 4 DIMM DDR4 sloty s max. kapacitou 128GB. Obsahuje 1 PCIe x16, 2 SATA3 porty a Ultra M.2. Výstupy zahrnují HDMI, DP a VGA, přičemž síťová konektivita je zajištěna gigabitovým LAN. Napájení zajišťuje efektivní 500W zdroj.
Na objednávku
5 449 Kč bez DPH 4 503 Kč

ASROCK
1452916
DESKMEET X300/B/BB/BOX
24 měsíců

Popis produktu
  • Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors, up to 65W
  • Supports MAX Height ? 54mm CPU Cooler
  • Supports 4 x DDR4-3200MHz DIMMs, up to 128GB
  • 1 x PCIe 3.0 x16
  • Graphics Output Options:DisplayPort, HDMI & D-Sub
  • 2 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4)
  • 1 x USB 3.2 Gen1 Type-C Port
  • 4 x USB 3.2 Gen1 Type-A port (2 Front, 2 Rear)
  • 4 x USB 2.0 Type-A port (2 Front, 2 Rear)
  • 1 x M.2 Key-E for Wi-Fi
  • 500W power supply (80+ Bronze)
  • 8 Liter compact size
  • CPU
    - Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors, up to 65W
  • Cooler
    - Supports AMD AM4 CPU Cooler (Max. Height ? 54mm)
  • Memory
    - Supports Dual Channel DDR4 Memory Technology
    - 4 x DDR4 DIMM slots (Max. 128GB)
    - AMD Ryzen 5000/4000 series – 3200MHz
    - AMD Ryzen 3000/2000 series – 2933MHz
    - Supports ECC & non-ECC, un-buffered memory*

    *For Ryzen Series APUs (Cezanne, Renoir and Picasso), ECC is only supported with PRO CPUs.
  • Chipset
    - AMD X300
  • Graphics
    - Supports a discrete Dual slot Graphics card up to 20CM
  • Audio
    - Realtek ALC897 Audio Codec
  • Storage
    - 2 x SATA3 6.0Gb/s ports (RAID 0/1)
    - 1 x Ultra M.2 (2280) PCIe Gen3 x4 slot
  • LAN
    - Gigabit LAN (RealtekRTL8111H)
  • Expansion Slots
    - 1 x PCIe 3.0 x 16
    - 1 x M.2 (key E 2230) slot for Wi-Fi + BT Module
  • Front I/O
    - 1 x Headphone/Headset Jack
    - 1 x USB 3.2 Gen1 Type-C port
    - 2 x USB 3.2 Gen1 Type-A port
    - 2 x USB 2.0 Type-A port
  • Rear I/O
    - 1 x DisplayPort
    - 1 x HDMI
    - 1 x D-Sub
    - 2 x USB 2.0
    - 2 x USB 3.2 Gen1 Type-A
    - 1 x RJ-45 LAN Port
    - 1 x Audio Jack (Line out)
  • Connectors
    - 1 x Chassis Intrusion Header
    - 1 x CPU Fan Connector (4-pin)
    - 1 x Chassis/Water Pump Fan Connectors (4-pin)
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Header
    - 1 x USB 2.0 Headers (Support 2 USB 2.0 ports) (Supports ESD Protection)
    - 1 x COM Port Header (Optional for X300-ITX/COM model)
  • Volume (liters)
    - 8L
  • Power Unit
    - 500W power supply (80+ Bronze, peak 550W)
  • Accessory
    - Quick Installation Guide
    - 2 x SATA Data Cables
    - 1 x Screws Package
  • Dimension
    - 168 (W) x 219.3 (D) x 218.3(H) mm (excl. Protrusions)
    - 168 (W) x 236.1 (D) x 221.6(H) mm (incl. Protrusions)
  • OS
    - Microsoft® Windows® 10 64-bit / 11 64-bit
