HDMI (počet)
1
Mini/micro HDMI (počet)
0
Výrobce GPU
NVIDIA
Modelové označení výrobce

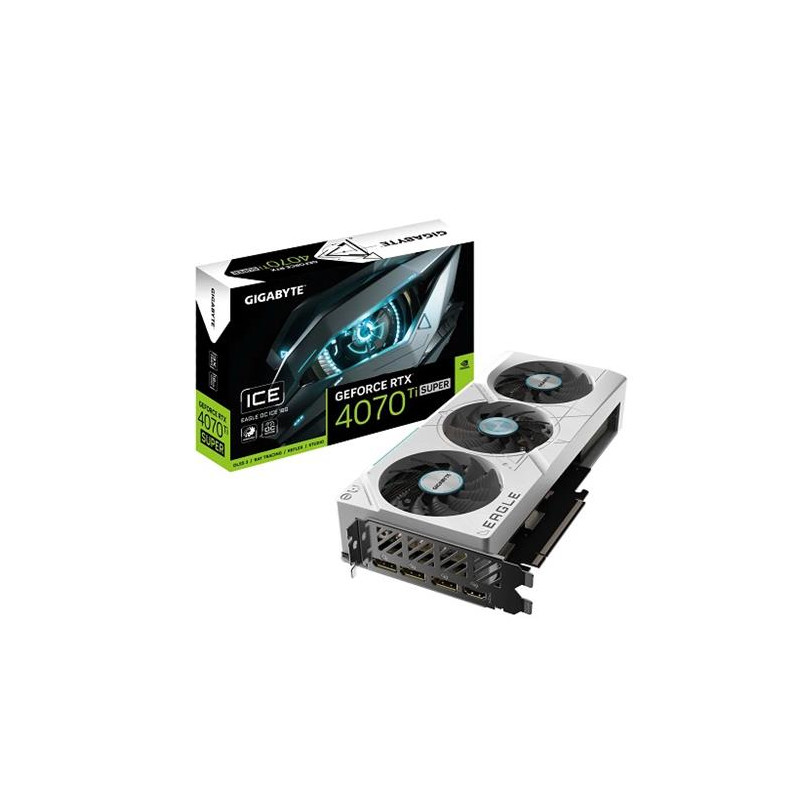

GIGABYTE GeForce RTX 4070 Ti SUPER EAGLE ICE
Modelová řada GPU
GeForce RTX 4070 Ti SUPER
Provedení grafiky
Interní
Typ chlazení
Aktivní chlazení
Paměť (GB)
16 GB
Typ paměti
GDDR6x
Šířka paměťové sběrnice
256-bit
Základní frekvence jádra (GHz)
2,61
Max. frekvence jádra (GHz)
2,64
Rozhraní
PCI Express 4.x
Počet napájecích pinů
1 x 16-pin
Počet portů mini DP
0
Počet portů HDMI
1
Počet portů USB Type-C
0
Počet portů Display port (DP)
3
Počet portů mini HDMI
0
Počet portů DVI
0
Počet portů D-SUB
0
DirectX
12.x
Gaming verze
Ne
OC verze
Ano
Omezení těžby (LHR)
Ne
Podsvícení RGB
Ano
Doporučený výkon zdroje
750
Počet ventilátorů
3
Herní provedení
Ano
Klíčové vlastnosti
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4070 Ti SUPER
Integrated with 16GB GDDR6X 256bit memory interface
WINDFORCE Cooling System
RGB Fusion
Dual BIOS
Protection metal back plate
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Specifikace
Grafika
GeForce RTX™ 4070 Ti SUPER
Takt jádra
2640 MHz (Reference card: 2610 MHz)
CUDA® jader
8448
Takt paměti
21 Gbps
Kapacita paměti
16 GB
Typ paměti
GDDR6X
Paměťová sběrnice
256 bit
Sběrnice karty
PCI-E 4.0
Maximální rozlišení digitálního výstupu
7680x4320
Monitorů současně
4
Velikost karty
L=261 W=126 H=50 mm
Formát PCB
ATX
DirectX
12 Ultimate
OpenGL
4.6
Doporučený výkon napájecího zdroje
750W
Napájecí konektory
16 pin *1
Výstup
DisplayPort 1.4a *3
HDMI 2.1a *1
Příslušenství
1. Quick guide
2. One 16-pin to two 8-pin power adaptor
