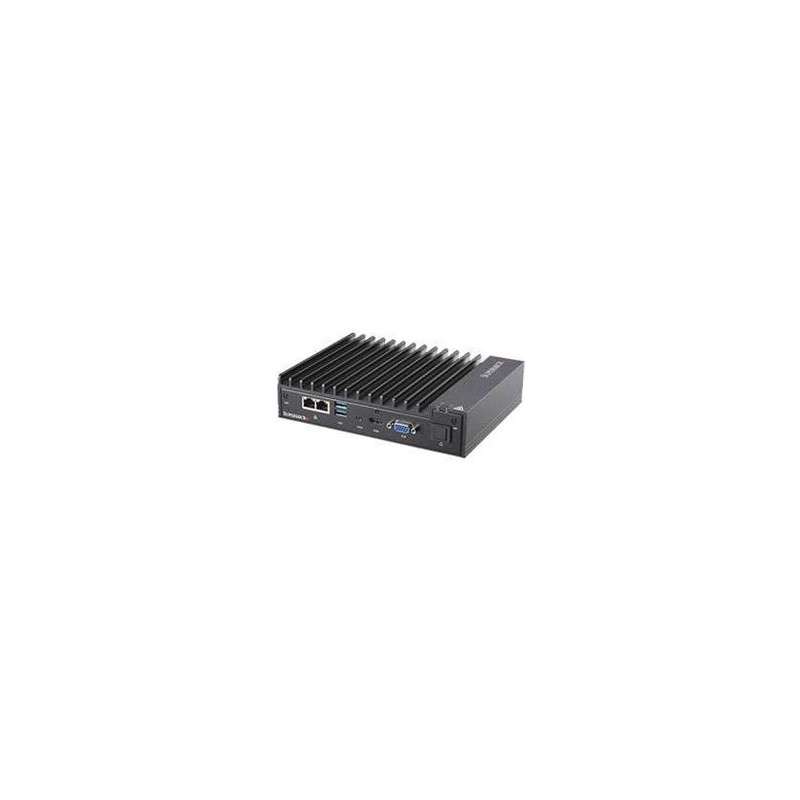

SUPERMICRO mini server 1x Pentium N4200, 1x DDR3 SO-DIMM, 40W PSU, 1x M.2, 2x 1Gb LAN

Product SKUs SYS-E100-9APP SuperServer E100-9APP (Black) Motherboard Super X11SAN Processor/Cache CPU Intel® Pentium™ Processor N4200 FCBGA 1296 System-on-Chip CPU TDP support 6W System Memory Memory Capacity 1x 204-pin DDR3L SO-DIMM socket Memory Type 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3L, 204-pin gold-plated DIMMs DIMM Sizes 8GB, 4GB, 2GB Memory Voltage 1.35 V On-Board Devices Network Controllers Dual GbE LAN with Intel i210-AT controller Video Intel HD Graphics Input / Output LAN 2 RJ45 Gigabit Ethernet LAN ports USB 1 USB 3.1 (Type C, front) 2 USB 3.0 (front) 4 USB 2.0 (rear) COM Port 4 COM ports (4 headers); 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control Video 1 VGA, 1 HDMI, 1 Intel HD Graphics Audio ALC 888S HD Audio, 1 HD Audio header (Mic-in/Line-out) TPM 1 TPM 2.0 Chip onboard Others 1 DIO via DB9 Chassis Form Factor 3.5" SBC Model CSE-E101 Dimensions Width 7.68" (195mm) / 11.81" (300mm) - pkg. Height 1.73" (44mm) / 5.12" (130mm) - pkg. Depth 5.94" (151mm) / 11" (279mm) - pkg. Available Colors Black Front Panel Buttons Power On/Off button LEDs Power LED and Hard drive activity LED Expansion Slots PCI-Express 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2) Drive Bays Internal 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket) System Cooling Fans Fan-less design Power Supply Lockable 12V DC 40W power adapter System BIOS BIOS Type 64Mb SPI Flash EEPROM with AMI UEFI BIOS BIOS Features Plug and Play (PnP) DMI 2.3 ACPI 5.0 USB Keyboard support SMBIOS 2.7.1 UEFI Management Software SuperDoctor® 5 Watch Dog Power Configurations ACPI Power Management ATX Power connector Control of power-on for recovery from AC power loss CPU thermal trip support for processor protection Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms
