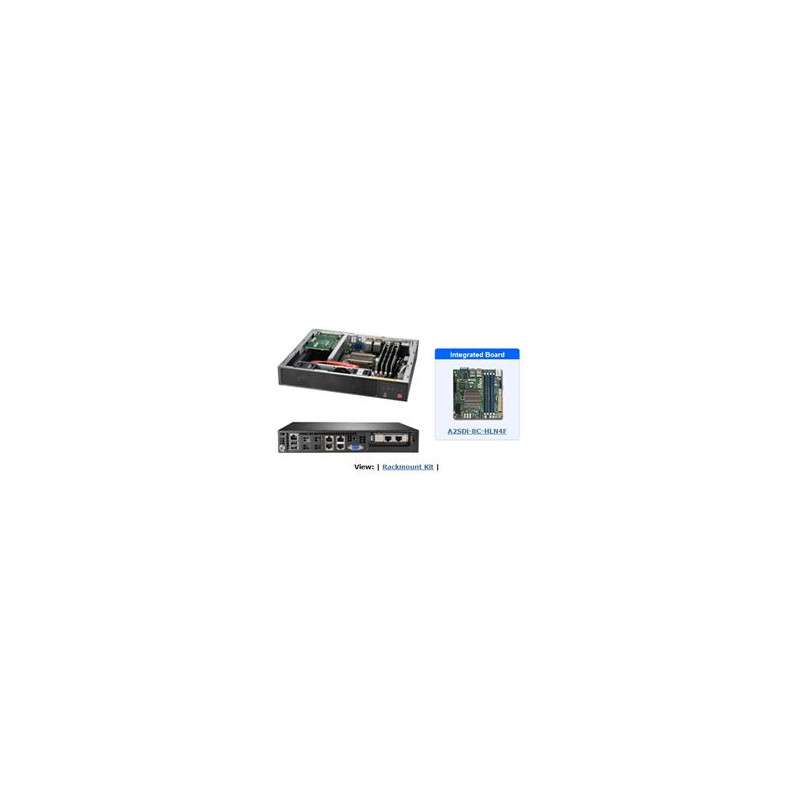

SUPERMICRO mini server Atom C3758, 4x DDR4 ECC, 84W, M.2, 4x 1Gb LAN, IPMI

Product SKUs SYS-E300-9A-8C SuperServer E300-9A-8C (Black) Motherboard Super A2SDi-8C-HLN4F Processor/Cache CPU Intel® Atom® processor C3758 8 Cores, 2.2GHz CPU TDP support 25W FCBGA 1310 System Memory Memory Capacity 4x DDR4 DIMM sockets Supports up to 256GB DDR4 ECC RDIMM Supports up to 64GB DDR4 ECC/non-ECC UDIMM Memory Type 2400/2133/1866MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM DIMM Sizes 64GB, 32GB, 16GB, 8GB, 4GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset System on Chip SATA SoC controller for 4 SATA3 (6Gbps) ports Network Controllers Quad Gigabit Ethernet LAN via Intel® C3000 SoC Graphics Aspeed AST2400 Input / Output SATA 2 SATA3 (6Gbps) ports LAN 4 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port USB 2 USB 2.0 ports (rear) Display 1 VGA port DOM 1 SuperDOM (Disk on Module) power connector TPM TPM 2.0 header Chassis Form Factor Mini-1U Model CSE-E300 Dimensions Width 10" (254mm) / 15" (381mm) - pkg. Height 1.7" (43mm) / 10.87" (276mm) - pkg. Depth 8.9" (226mm) / 5.59" (142mm) - pkg. Weight Gross Weight: 7.5 lbs (3.4 kg) Net Weight: 3.45 lbs (1.56 kg) Available Colors Black Front Panel Buttons Power On/Off button LEDs Power LED (Hard drive activity LED) Expansion Slots PCI-Express 1 PCI-E 3.0 x4 AOC slot (LP) Drive Bays / Storage Internal Support up to 2 SSD when AOC area is not occupied. Need optional cable CBL-SAST-1034 M.2 Interface: PCI-E 3.0 x2 Form Factor: M Key 2242/2280 System Cooling Fans 2x 40mm chassis fan Power Supply 84W DC power adapter System BIOS BIOS Type AMI UEFI BIOS Features UEFI 2.4 SMBIOS 2.7.1 Management Software OOB IPMI 2.0 KVM with dedicated LAN NMI SuperDoctor® 5 Watch Dog Power Configurations ACPI / APM Power Management CPU thermal trip support for processor protection Power-on mode for AC power recovery Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
