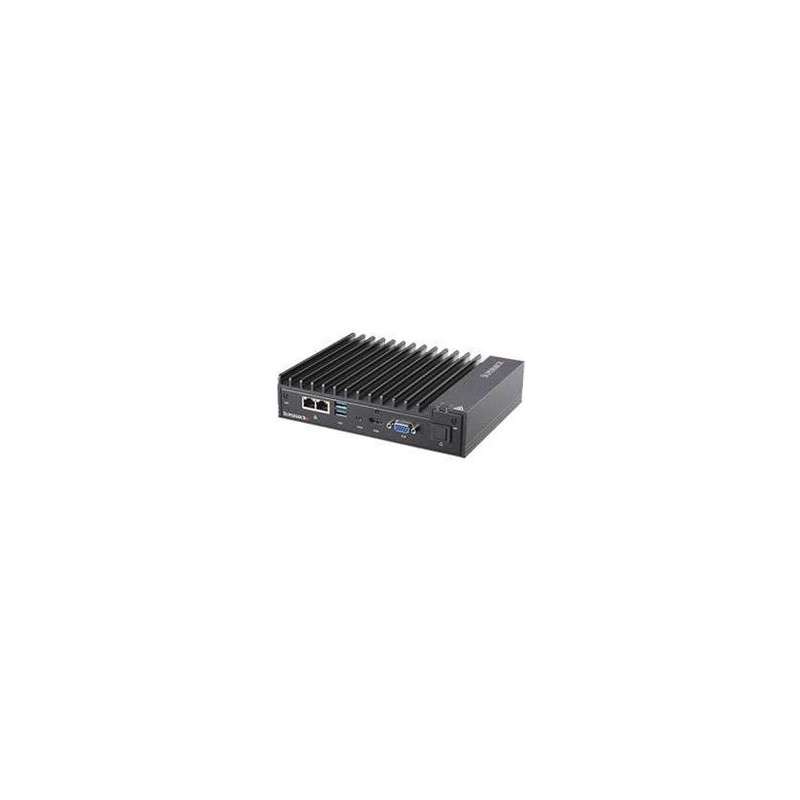

SUPERMICRO mini server i3-7100U, 2x DDR4 SO-DIMM, 60W PSU, 1x M.2, 2x 1Gb LAN

Product SKUs SYS-E100-9S-L SuperServer E100-9S-L (Black) Motherboard Super X11SSN-L-WOHS Processor/Cache CPU 7th Generation Intel® Core i3-7100U Processor Single Socket FCBGA 1356 System-on-Chip CPU TDP support 15W System Memory Memory Capacity Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots Memory Type DDR4 up to 2133MHz DIMM Sizes 16GB, 8GB, 4GB Memory Voltage 1.2V On-Board Devices Chipset System on Chip Network Controllers Single LAN with Intel® I210IT Single LAN with Intel® PHY I219LM Video Intel® HD Graphics 620 Input / Output USB 1 USB 3.1 (Type C) 2 USB 3.0 (rear via header) 4 USB 2.0 (rear via headers) Video Output 1 DP (Display Port) port 1 HDMI port COM Port 4 COM ports (4 headers) 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control Audio 1 HD Audio header (Mic-in/Line-Out) (option) Others 1 DIO via DB9 Chassis Form Factor 3.5" SBC Model CSE-E101-01 Dimensions Width 7.68" (195mm) / 11.81" (300mm) - pkg. Height 1.73" (44mm) / 5.12" (130mm) - pkg. Depth 5.94" (151mm) / 11" (279mm) - pkg. Weight Net Weight: 2.65 lbs (1.2 kg) Available Colors Black Front Panel Buttons Power On/Off button LEDs Power LED and Hard drive activity LED Expansion Slots PCI-Express 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2, 1 SATA Gen3) M.2 Interface: SATA and PCIe 3.0 x1 and USB 2.0 Form Factor: B-Key 2280 Drive Bays Internal 1 M.2 2280 B-Key for SATA or PCIe SSD System Cooling Fans Fan-less design Power Supply Lockable 12V DC 60W power adapter System BIOS BIOS Type AMI UEFI Management Software SuperDoctor® 5 Watch Dog Power Configurations +12V DC Power Input ACPI Power Management Control of power-on for recovery from AC power loss Force Power On by Jumper CPU thermal trip support for processor protection Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
