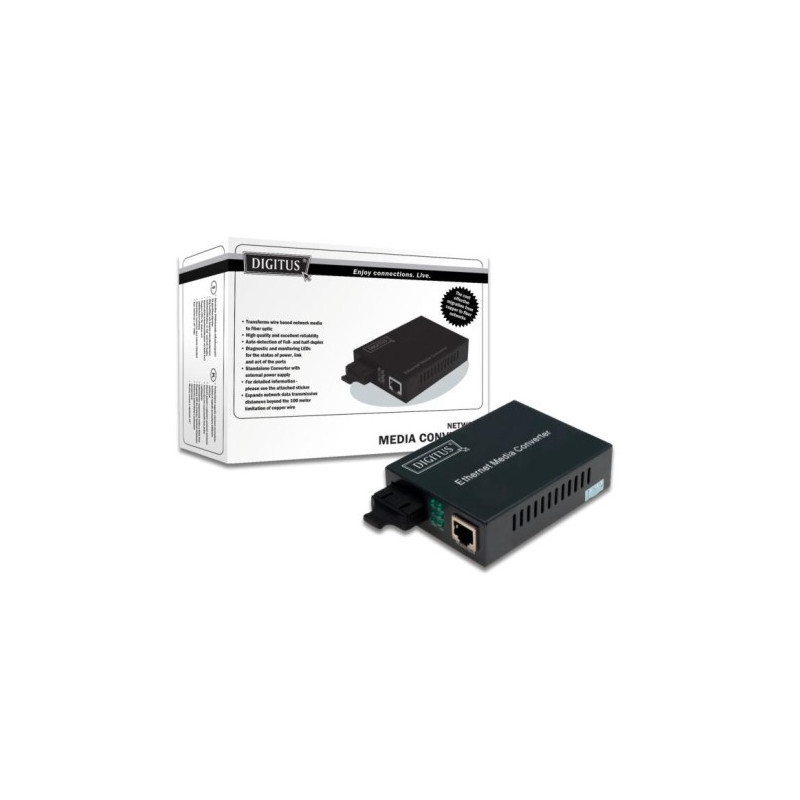

DIGITUS Media Converter, Multimode, 10 100Base-TX to 100Base-FX, Incl. PSU ST connector, Up to 2km

Optický konvertor 100Base-T na 100 Base FX s konektorem ST, lze použít samostatně nebo je možné přikoupit rackové šasi.

DIGITUS Media Converter, Multimode, 10/100Base-TX to 100Base-FX, Incl. PSU ST connector, Up to 2km

The perfect converter solution for various fiber media

Transforms wire based network media to fiber optic
High quality and excellent reliability
10/100Base-TX to 100Base-FX
Connectors: 1x RJ45, 1x ST Duplex
Distance up to 2km
Wavelength: 1310nm
Multimode Dual Fiber
Automatic Cable detection - Auto MDI / MDI-X function
Auto-Negotiation of Full- and half-duplex
Diagnostic and monitoring LEDs for the status of power, link and act of the ports
Link Fault Pass Through (LFP) Function for easier Network Maintenance
Suitable for 50/125µm and 62.5/125µm Fiber Cables
Transmission Power: Minimum -22 dBm, Maximum -12 dBm
Sensitivity Receiving Power: Minimum -30 dBm
Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet
128kB Data Buffer
Operating Temperature: 0 to 55°C
Dimensions (L x W x H): 95mm x 70mm x 26mm
Weight: 200g
Standalone Converter with external power supply
Input Supply Voltage: 5V DC
Max. Current: 800mA
Power Consumption: 2.5W

Package Content
Media Converter
Quick Installation Guide
Power Adapter



Výrobek je dodáván s manuálem pouze v anglickém jazyce.
