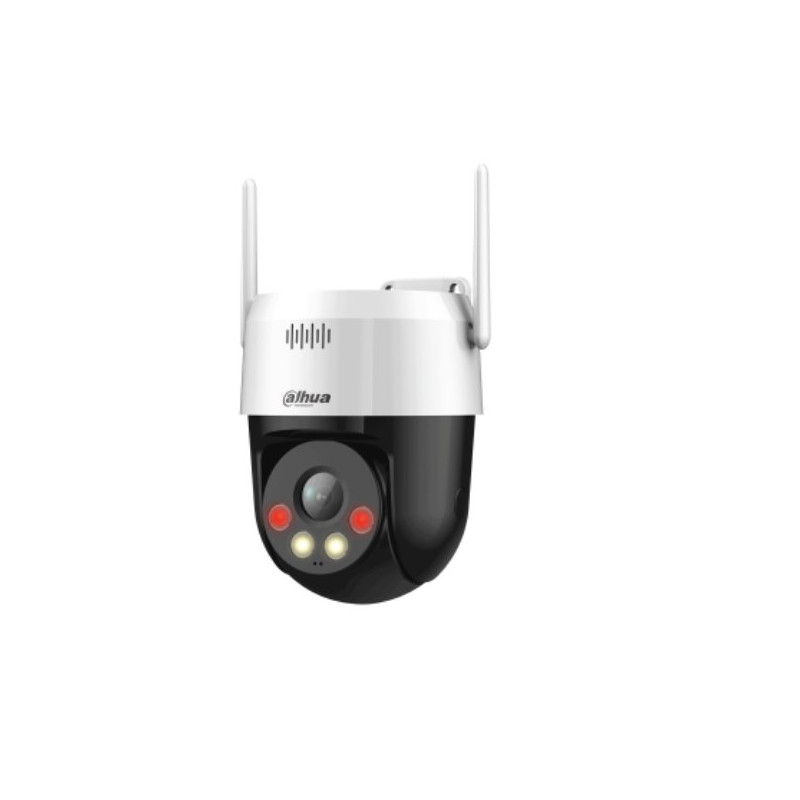

Dahua IP kamera CP5AE-PV, 4mm 5MP Wireless Network PT Camera
5MP bezdrátová PT kamera s CMOS snímačem a rozlišením 2560×1920. Podporuje obousměrný audio přenos, detekci pohybu a aktivní odstrašení pomocí světla a zvuku. Video komprese Smart H.265+ a až 256 GB paměti na SD kartu. Pracuje od –30 °C do +55 °C, ideální pro vnitřní i venkovní použití.
3 663 Kč bez DPH 3 027 Kč
Popis produktu
5MP Wireless Network PT Camera
Series Overview
The Active Defense series of small PT cameras raises the bar on performance. After detecting an intrusion, it triggers sound and light alarms, and then instantly relays vital information on the intrusion to the mobile client, keeping you informed no matter where you are. It supports two-way talk, allowing you to communicate with people in front of the camera in real time.It also can record full-color videos and information of key events using Smart Dual Illuminators, effectively reducing light pollution.
Camera
Image Sensor
1/2.8" CMOS
Pixel
5 MP
Max. Resolution
2560 (H) × 1920(V)
Electronic Shutter Speed
1 s–1/100,000 s
Illuminator Number
2 (IR light); 2 (warm light)
Lens
Focal Length
4.0 mm
Max. Aperture
F1.6
Field of View
4.0 mm: H: 80.4°; V: 58.1°; D: 104.8°
Close Focus Distance
4.0 mm: 0.3 m (0.98 ft)
PTZ
Pan/Tilt Range
Pan: 0° to 345°;
Tilt: 0° to +80°
Preset
300
Smart Event
IVS
Tripwire; intrusion; linkage tracking
Human Detection
Yes
SMD
SMD3.0
Active Deterrence
Light Warning
Warm light warning;
Flash duration: 5 s–30 s;
Flash frequency: high, medium, low
Sound Warning
Offers 1 sound alarm and 10 custom sound alarms can be imported;
Sound can be set from 0%–100%;
Play times can be set from 1-10.
Video
Video Compression
Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
Resolution
5M (2560 × 1920); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate
Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Video Bit Rate
H264: 104 kbps-8,192 kbps
H265: 41 kbps-8,192 kbps
Day/Night
Auto (ICR); Color/B/W
WDR
DWDR
Image Rotation
180°
Audio
Audio Compression
PCM; G.711a; G.711Mu; G.726;
Network
Network Port
RJ-45 (10/100 Base-T)
Wi-Fi Standard
IEEE802.11b;IEEE802.11g;IEEE802.11n
Wi-Fi Frequency Range
2.4 GHz
Power Transmission
?20 dBm@2400–2483.5 MHz
Storage
Micro SD card (256 GB); FTP
Browser
IE: IE 7 and later versions; Chrome; Firefox; Safari
Management Software
Smart PSS;DMSS;Player;ConfigTool;NVR;Smart Player
Mobile Client
iOS;Android
Certification
Certifications
CE
Power
Power Supply
12 VDC, 1 A ± 10% (included)
Environment
Operating Temperature
–30 °C to +55 °C (–22 °F to +131 °F)
Operating Humidity
?95%
Structure
Product Dimensions
140.5 mm × ?111.0 mm (5.53" × ?4.37")
Net Weight
0.5 kg (1.10 lb)
Gross Weight
1 kg (2.20 lb)
Series Overview
