Product SKUs

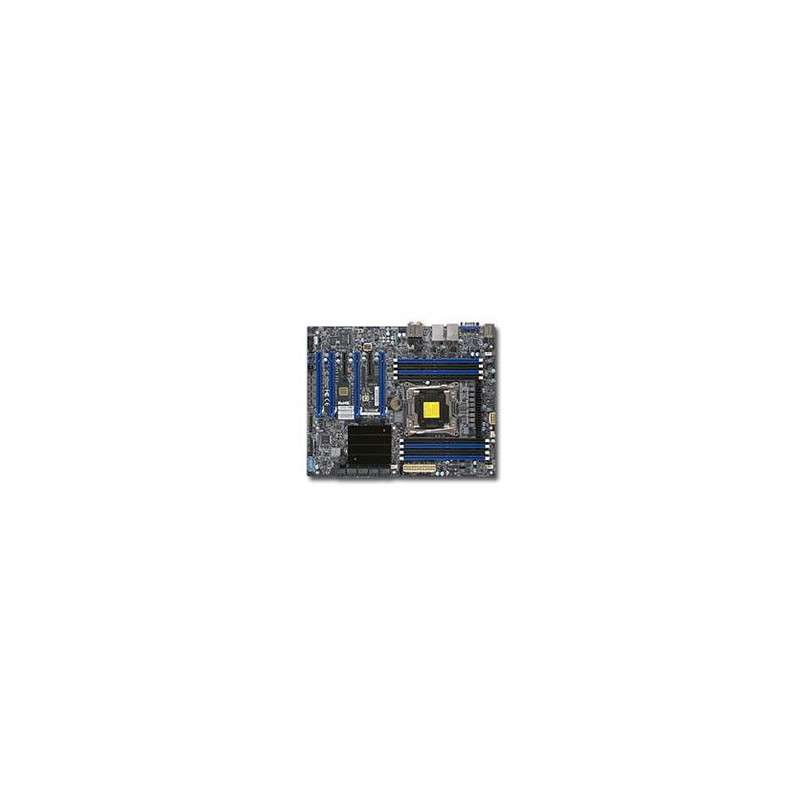

MBD-X10SRA-F X10SRA-F
Physical Stats
Form Factor ATX
Dimensions 12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU Intel® Core? i7 Processor (Socket R3), Intel® Core? i7 Processor Extreme Edition (Socket R3), Intel® Xeon® Processor E5-1600 v3, Intel® Xeon® Processor E5-1600 v4, Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
Single Socket LGA-2011-3 (Socket R3) supported, CPU TDP support Up to 160W TDP
Cores / Cache Up to 22 cores † / Up to 55MB† cache
Note † BIOS version 2.0 or above is required
Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 1TB 3DS ECC LRDIMM, DDR4-2400MHz, in 8 DIMM slots8 288-pin DDR4 DIMM slots;
Up to 512GB ECC LRDIMM ;
Up to 128GB DDR4 ECC/non-ECC UDIMM (available with Core i7 only)
Memory Type 2400?/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C612
SATA Intel® C612 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI OOB Bios refresh function is not supported
Network Controllers Intel® i210 Gigabit Ethernet ControllerShare with IPMISupports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio ALC 1150 HD Audio
Input / Output
SATA 10 SATA3 (6Gbps) port
LAN 2 RJ45 Gigabit Ethernet LAN ports
USB 8 USB 3.0 ports (6 rear + 2 headers); 4 USB3.0 ports could be upgraded to 4 USB3.1(10 Gb/s) ports (2 rear, 2 by header)(BOM option)
Video Output 1 VGA port
Serial Port / Header 1 COM Port (1 header)
TPM TPM Header
Expansion Slots
PCI-E 4 PCI-E 3.0 x16
2 PCI-E 2.0 x1 (in x4 slot)
*4 PCI-E3.0x16 slots are running at 16/16/NA/8 or 16/8/8/8
*PCI-E Slot#1 (x4) and Slot#4 (x16) are disabled when an Intel Core i7-5820K is installed
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features Plug and Play (PnP)
APM 1.2
DMI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI 2.3.1
RTC (Real Time Clock) Wakeup
Management
Software IPMI2.0, SuperDoctor® 5, SuperDoctor® III, Watchdog
Power Configurations ACPI Power Management
Keyboard Wakeup from Soft-Off
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT
FAN 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for on/off control, Status monitoring for speed control, Thermal control tachometer fan connectors
Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED CPU / System Overheat LED, Suspend static indicator LED
Other Features Chassis intrusion detection, Chassis intrusion header, Chipkill support, RoHS
Operating Environment
Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
