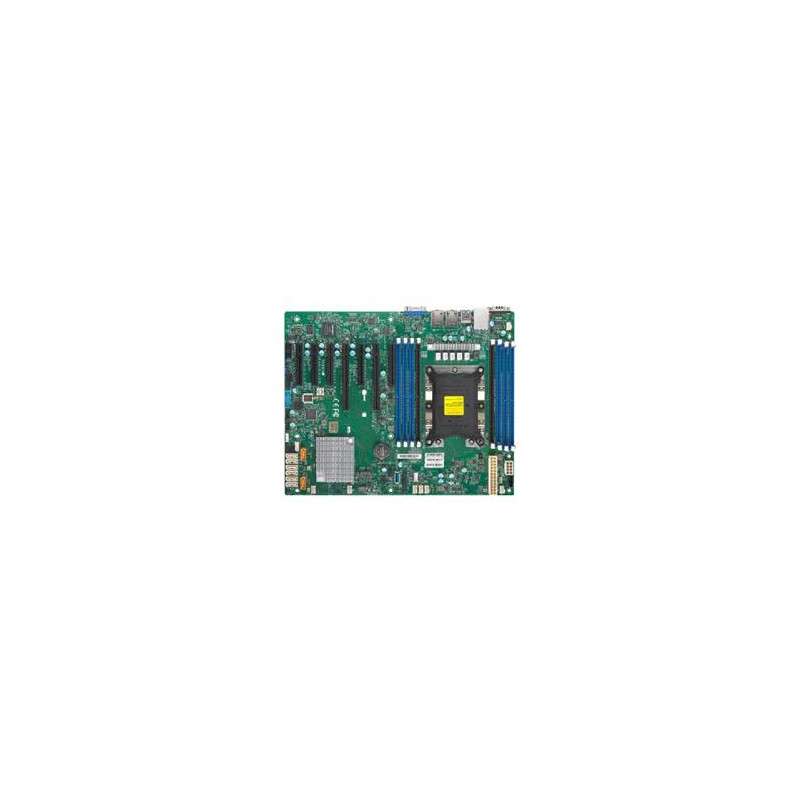

SUPERMICRO MB 1xLGA3647, iC621, 8x DDR4 ECC, 8xSATA3, 1xM.2, PCI-E 3.0 6,1(x8,x1),2x LAN,IPMI

Product SKUs MBD-X11SPL-F X11SPL-F Physical Stats Form Factor ATX Dimensions 12" x 9.6" (30.48cm x 24.38cm) Processor/Cache CPU 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP Cores / Cache Up to 28 cores Note BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP System Memory Memory Capacity Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots; Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only) Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes RDIMM: 8GB, 16GB, 32GB, 64GB LRDIMM: 32GB, 64GB, 128GB 3DS LRDIMM: 64GB, 128GB, 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C621 SATA Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with 1GbE with Intel® I210 Graphics ASPEED AST2500 BMC Input / Output SATA 8 SATA3 (6Gbps) port LAN 2 RJ45 Gigabit Ethernet LAN ports USB 8 USB 2.0 ports (2 rear + 6 via headers) 5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM TPM Header Expansion Slots PCI-E 2 PCI-E 3.0 x8 (in x16 slot), 4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) M.2 M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2280, 22110 Key: M-Key Double Height Connector System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.0 RTC (Real Time Clock) Wakeup SMBIOS 3.0 or later Management Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT Temperature CPU thermal trip support, PECI LED CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED Other Features ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SPL-F 1 X11SPL-F Motherboard I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SPL-F with EMI Gasket Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SPL-F 1 X11SPL-F Motherboard QRG MNL-1950-QRG 1 Motherboard Quick Reference Guide I/O Cables CBL-0044L 6 57.5 cm SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SPL-F with EMI Gasket Optional Parts List Name Part Number Qty Description TPM security module AOM-TPM-9670H SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor TPM security module AOM-TPM-9670V SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor TPM security module AOM-TPM-9671H SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor TPM security module AOM-TPM-9671V SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor Chassis (Optimized for X11SPL-F) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC512F-350B1 SC813MFTQC-350CB2 SC813MFTQC-R407CB SC113MFAC2-341CB SC113MFAC2-R606CB SC113MFAC2-605CB SC515-350 SC515-R407 SC514-R407C SC823TQ-653LPB SC825TQC-R740LPB SC213LT-600LPB SC213A-R740LPB SCLA25TQC-R609LP SC823MTQC-R802LPB SC825MBTQC-R802LPB SC833T-653B SC842TQC-668B = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU Server (Optimized for X11SPL-F) Server Name SSG-5049P-E1CR45L SSG-5049P-E1CR45H
