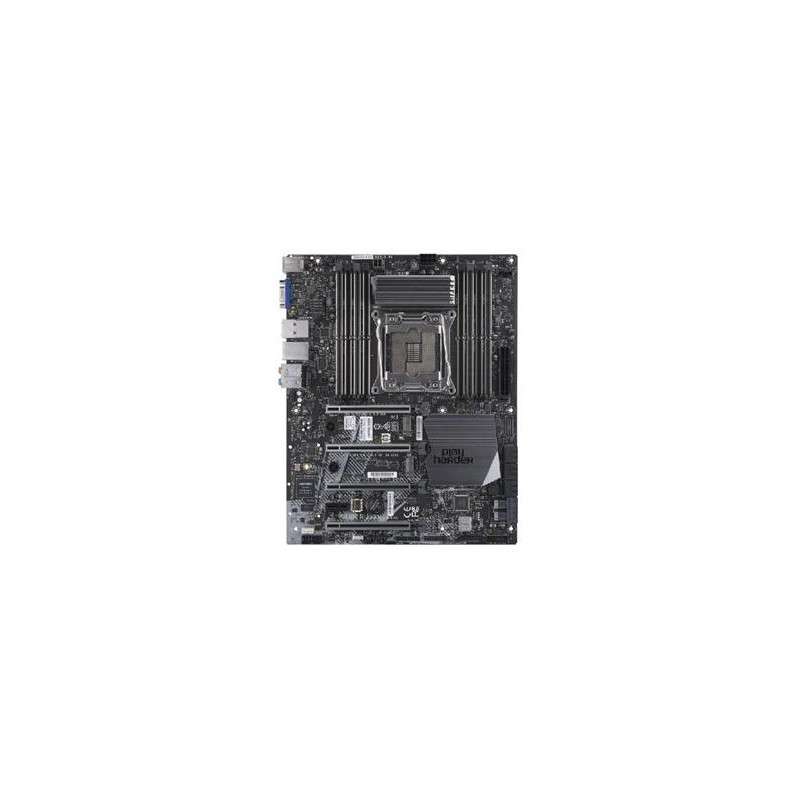

SUPERMICRO MB 1xLGA2066, x299, 8x DDR4,6xSATA3, 5xPCIe 3.0(depending on CPU), M.2, 2xLAN, HD Audio, VGA, IPMI

Product SKUs MBD-C9X299-PGF C9X299-PGF Physical Stats Form Factor ATX Dimensions 12" x 9.6" (30.48cm x 24.38cm) Processor/Cache CPU Intel® 10th Generation Core? i9 Extreme X-series, Intel® 7th Generation Core? i7 X-series, Intel® 9th Generation Core? i7 X-series, Intel® 9th Generation Core? i9 X-series, Intel® Core? i9 Extreme X-series Processor Single Socket LGA-2066 (Socket R4) supported, CPU TDP support Up to 165W TDP Support Intel Skylake-X refresh CPU System Memory Memory Capacity 256GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 8 DIMM slots Memory Type 2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V On-Board Devices Chipset Intel® X299 SATA 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 ***OOB Bios refresh function is not supported.*** Network Controllers Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Aquantia 5G LAN chip AQC108 Audio ALC 1220 HD Audio Input / Output LAN 2 RJ45 Gigabit Ethernet LAN ports USB 4 USB 2.0 ports (4 via headers) 4 USB 3.2 Gen1 ports (2 rear + 2 via headers) 4 USB 3.2 Gen2 ports (3 Type A, 1 Type C) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header) TPM 1 TPM Header Expansion Slots PCI-E 4 PCI-E 3.0 x16, 1 PCI-E 3.0 x1 ***4xPCI-E3.0 x16 Slots(8/NA/16/16 or 8/8/8/16 or NA/4/8/16(Skylake-X 28 Lanes) or NA/4/4/8(Kabylake-X), 1xPCI-E3.0x1 slots*** M.2 M.2 Interface: PCI-E 3.0 x4 Form Factor: 2280, 22110 Key: M-Key (RAID 0,1 support) M-Key for SSD and Optane System BIOS BIOS Type UEFI 128Mb Management Software SuperDoctor® 5, Watchdog PC Health Monitoring Voltage +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT FAN 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors Temperature N/A LED N/A Other Features ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, Voltage and Frequency Overclocking, WOL Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-C9X299-PGF 1 C9X299-PGF Motherboard IO shield MCP-260-00117-0N 1 C9X299-PG IO Shield SATA cable CBL-0044L 2 57.5CM SATA FLAT S-S PBF Optional Parts List Name Part Number Qty Description TPM security module (optional, not included) AOM-TPM-9655V 1 TPM security module (optional, not included) AOM-TPM-9655V-C 1 TPM security module (optional, not included) AOM-TPM-9665V-FC 1 TPM security module (optional, not included) AOM-TPM-9665V 1 TPM security module (optional, not included) AOM-TPM-9665V-C 1 Chassis (Optimized for C9X299-PGF) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SCGS5A-754K = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU Server (Optimized for C9X299-PGF) Server Name SYS-5039AD-I
