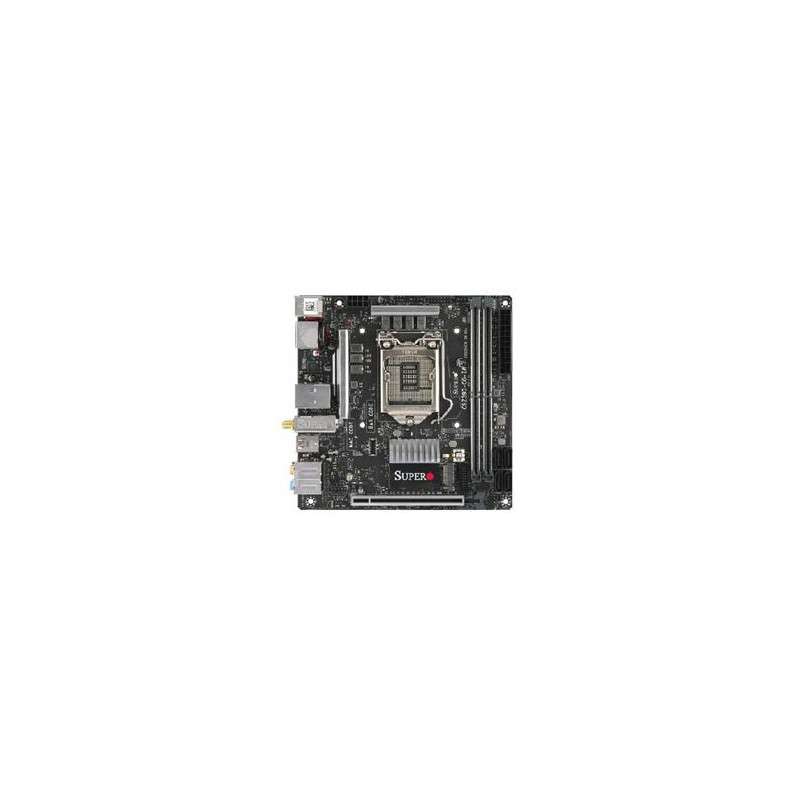

SUPERMICRO MB 1xLGA1151 8 9g 120W, Z390, 2x DDR4,4xSATA3, PCIe 3.0 x16, M.2, LAN+WiFi, DP+HDMI, Audio, mini-ITX

Product SKUs MBD-C9Z390-CG-IW C9Z390-CG-IW Physical Stats Form Factor Mini-ITX Dimensions 6.7" x 6.7" (17.02cm x 17.02cm) Processor/Cache CPU Intel® 8th/9th Generation Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® series Processor. Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 120W TDP System Memory Memory Capacity , DDR4-up to 3866+ MHz(OC), in 2 DIMM slotsUp to 32GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 64GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 9th core i5/i7/i9) Memory Type 2666MHz/2400MHz DDR4 288-pin Non-ECC UDIMM DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V On-Board Devices Chipset Intel® Z390 Express SATA Intel® Z390 Express controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Network Controllers Single LAN with Intel® single Ethernet PHY i219V Audio ALC 1220 HD Audio Graphics HDMI up to 2.0a, DP up to 1.2 Input / Output SATA 4 SATA3 (6Gbps) ports LAN 1 RJ45 Gigabit Ethernet LAN ports USB 4 USB 3.0 ports (2 rear + 2 via headers) 4 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers) 5 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 1 via header) Video Output 1 HDMI port, 1 DP (DisplayPort) port, HDMI up to 2.0a, DP up to 1.2 Expansion Slots PCI-E 1 PCI-E 3.0 x16 M.2 M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 and 1 CNVi Form Factor: 2260/2280, 2230 Key: M-Key , E-Key (RAID 0,1 support) M.2-E1 port pre-installed one 802.11ac WiFi+BT5.0 module; One M.2 (M-Key) on Top side and One M.2 (M-key)on back side System BIOS BIOS Type AMI 32Mb SPI Flash ROM BIOS Features ACPI 6.0 SMBIOS 3.0 or later UEFI 2.4 Management Software SuperDoctor® 5, Watchdog System Management Software SuperDoctor 5 Power Configurations Power-on mode for AC power recovery Keyboard Wakeup from Soft-Off ACPI Power Management PC Health Monitoring Voltage +1.1V, +12V, +3.3V, +5V, 1.05 (PCH), 2 fans with tachometer status monitoring, 3+2 Phase-switching voltage regulator, HT, VBAT FAN 2x 4-pin fan headers (up to 2 fans), Fan speed control, Low noise fan speed control, PWM fan speed control Temperature CPU thermal trip support LED Suspend static indicator LED Other Features Chassis intrusion detection, Chassis intrusion header, Voltage and Frequency Overclocking, WOL Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-C9Z390-CG-IW 1 C9Z390-CG-IW Motherboard Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-C9Z390-CG-IW 1 C9Z390-CG-IW Motherboard IO shield MCP-260-00129-0N 1 C9Z390-CG-IW IO shield Quick Reference Guide MNL-2018-QRG 1 C9Z390-CG-IW Quick Reference Guide SATA cable CBL-0044L 2 57.5CM SATA FLAT S-S PBF Driver CD 1 C9 Driver CD Metal badge 1 SuperO metal badge Cable sticker 1 SuperO cable sticker WiFi+BT Antenna CBL-ANTDB-SMA 2 C9Z390-CG-IW WiFi+BT Antenna Front panel extension cable 1 C9Z390-CG-IW front panel extension cable Chassis (Optimized for C9Z390-CG-IW) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SCGS5A-754K SCGS5A-753B SC732D3-1200B SC732D3-903B SC732D4-500B
