MSI MB Sc LGA1851 PRO Z890-P WIFI, Intel Z890, 4xDDR5, 1xDP, 1xHDMI, WI-FI

Skladem > 5 ks

6 605 Kč bez DPH 5 459 Kč

Poptat zboží

Hlídat cenu

Přidat k porovnání

Přidat k oblíbeným

Značka MSI

Kód 2342381

P/N PRO Z890-P WIFI 4711377257701

Záruka 36 měsíců

Poradna a návody
Vhodné pro
Parametry

Technické parametry

Wi-Fi

Ano

Bluetooth

Ano

Počet LAN portů

Konektor HDMI

Ano

Model

MSI PRO Z890-P WIFI

Patice

LGA 1851

Výrobce chipsetu

Intel

Chipset

Z890

Podpora pro paměti typu

DDR5

Počet paměťových slotů

Maximální frekvence pamětí

9200+

Max. velikost op. paměti (GB)

256

XMP

Ano

Podpora pro paměti typu ECC

Velikost základní desky

ATX

WiFi

Ano

HDMI

Ano

DisplayPort / miniDisplayPort

Ano

Počet pinů USB 2.0 (interní)

Počet USB 2.0 (externí)

Počet pinů USB 3.x (interní)

Počet USB 3.x (externí)

USB Typ C (interní)

Počet USB Typ C (externí)

ThunderBolt (interní)

ThunderBolt (externí)

Ano

COM port (interní)

COM port (externí)

LPT port (interní)

LPT port (externí)

Počet slotů PCIe x16

Počet slotů PCIe x1

Počet slotů PCI

Počet slotů M.2

Počet konektorů SATA 6Gb/s

Počet konektorů SATA 3Gb/s

Počet LAN výstupů

1x LAN konektor

Typ síťové karty

Realtek

Rychlost LAN

5Gb/s

RAID řadič

Ano

TPM Header

Ano

RGB LED Header

Ano

ARGB LED Header

Ano

M.2 v režimu PCIe 3.0 x4

M.2 v režimu PCIe 4.0 x4

Ano

M.2 v režimu PCIe 5.0 x4

Ano

PCIe 5.0 x16

Ano

Popis produktu

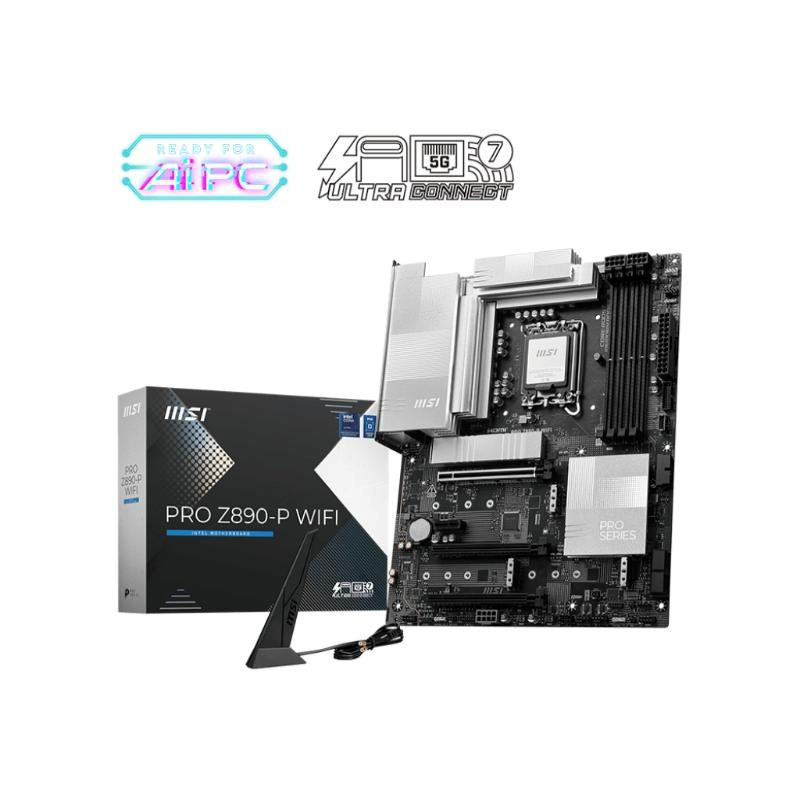

MSI PRO Z890-P WIFI

PRO Z890-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the Intel Core™ Ultra processors.

Chipset

INTEL Z890

CPU

Supports Intel Core™ Ultra Processors (Series 2)
LGA 1851

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

Audio

Realtek ALC897 Codec
7.1-Channel High Definition Audio

Storage

4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
*Please refer to the manual for M.2 SSD heatsink restrictions.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Onboard Thunderbolt

1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)

LAN

Realtek 8126 5Gbps LAN

Internal IO

1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH

Intel Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

DisplayPort
Mouse / Keyboard
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
Thunderbolt™ 4 40Gbps (Type-C)
HDMI™
USB 2.0
USB 5Gbps Type-A
USB 10Gbps Type-C
USB 10Gbps Type-A

OPERATING SYSTEM

Support for Windows 11 64-bit

BOX CONTENT

FORM Factor

ATX
24.4 x 30.5 cm
