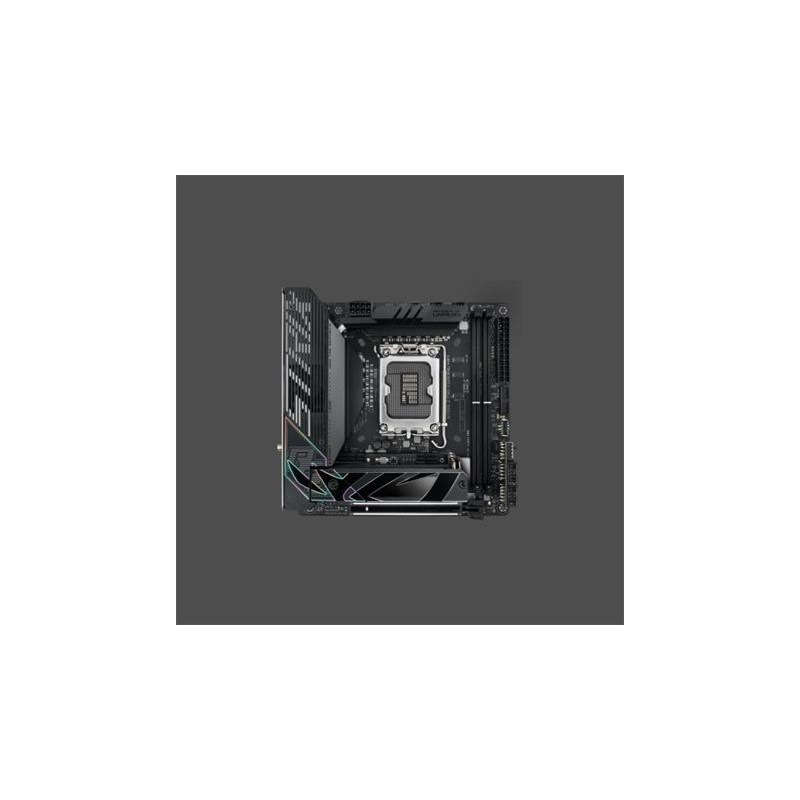

ASUS ROG STRIX Z790-I GAMING WIFI
CPU Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU s
12 169 Kč bez DPH 10 057 Kč
Technické parametry
Model
ASUS ROG STRIX Z790-I GAMING WIFI
Patice
LGA 1700
Výrobce chipsetu
Intel
Chipset
Z790
Grafická karta
Ano (v závislosti na CPU)
Podpora generace CPU
12. a 13. gen. Intel
Integrované CPU na MB
Ne
Podpora pro paměti typu
DDR5
Počet paměťových slotů
2
Maximální frekvence pamětí
7600
Max. velikost op. paměti (GB)
64
XMP
Ano
Podpora pro paměti typu ECC
Ne
Velikost základní desky
Mini ITX
BlueTooth
Ano
WiFi
Ano
HDMI
Ano
DisplayPort / miniDisplayPort
Ne
DVI
Ne
VGA
Ne
Počet pinů USB 2.0 (interní)
3
Počet USB 2.0 (externí)
2
Počet pinů USB 3.x (interní)
1
Počet USB 3.x (externí)
4
USB Typ C (interní)
1
Počet USB Typ C (externí)
3
ThunderBolt (interní)
Ano
ThunderBolt (externí)
Ano
COM port (interní)
Ne
COM port (externí)
Ne
LPT port (interní)
Ne
LPT port (externí)
Ne
Počet slotů PCIe x16
1
Počet slotů PCIe x1
0
Počet slotů PCI
0
Počet slotů M.2
2
Počet konektorů SATA 6Gb/s
2
Počet konektorů SATA 3Gb/s
0
Počet LAN výstupů
1x LAN konektor
Typ síťové karty
Intel
Rychlost LAN
2,5Gb/s
IEEE 1394
Ne
RAID řadič
Ano
TPM Header
Ne
ARGB LED Header
Ano
Revize
Bez
Herní provedení
Ano
Popis produktu
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® Z790 Chipset
Memory
2 x DIMM, Max. 96GB, DDR5
7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile
(XMP)
OptiMem II
* We recommend active airflow to ensure beter memory performance
* Supported memory types, data rate(Speed),
and number of DRAM modules vary depending on the CPU and memory configuration,
for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics
1 x HDMI® port***
2 x Intel® Thunderbolt™ 4 ports (USB
Type-C®) support DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between
CPU types. Please refer to www.intel.com for any updates.
*** Supports 4K@60Hz as specified in HDMI
2.1.
**** VGA resolution support depends on
processors' or graphic cards' resolution.
Expansion Slots
Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
A resolution support depends on processors'
or graphic cards' resolution.
Storage
Total supports 2 x M.2 slots and 2 x SATA
6Gb/s ports
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2280 (supports
PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)***
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports****
*** M.2_1 comes from Intel® Z790 Chipset
when switched to PCIe 4.0 x4 mode
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports.
2 x SATA 6Gb/s ports****
*AMD RAIDXpert2 Technology supports both
NVMe RAID 0/1 and SATA RAID 0/1.
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3
* WiFi 6E 6GHz regulatory may vary between
countries, and function will be ready in Windows 11 or later.
USB
Rear USB (Total 9 ports)
2 x Thunderbolt™ 4 port(s) (2 x USB
Type-C®)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB
Type-C®)
3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB (Total 3 ports)
1 x USB 3.2 Gen 2x2 connector supports 1
USB Type-C®
1 x USB 3.2 Gen 1 header(s) support(s) 2
additional USB 3.2 Gen 1 ports
ROG STRIX HIVE (Total 2 ports)
1 x USB 3.2 Gen 2 port ( 1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A)
ROG FPS-II Card (Total 3 ports)
2 x USB 2.0 header(s) additional 3 USB 2.0
ports**
Audio
ROG High Definition Audio CODEC ALC4050
- Supports: Jack-detection
- High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- ROG Hyper-Grounding Technology
- ESS® SABRE9260Q DAC
- Silver-plated audio jacks
- Optical S/PDIF out port & USB Type-C® port with indepent power solution
*** All audio functions on ROG STRIX Z790-I GAMING WIFI are supported through the ROG STRIX HIVE.
Back Panel I/O Ports
2 x Thunderbolt™ 4 USB Type-C® port(s)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB
Type-C®)
3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
(supports ROG STRIX HIVE)
1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
USB
1 x USB 3.2 Gen 2x2 connector (support(s)
USB Type-C® )
1 x USB 3.2 Gen 1 header(s) support(s) 2
additional USB 3.2 Gen 1 ports
Miscellaneous
1 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Thermal Sensor header
2 x USB Type-C® connectors to Install ROG
FPS-II card
ROG FPS-II card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Thermal Sensor header
1 x Front Panel header
1 x Alternative PCIe Mode switch
2 x USB 2.0 header(s) support(s) additional
3 USB 2.0 ports
Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header(s)
- Addressable Gen 2 header(s)
ROG STRIX HIVE
1 x USB Type-C® connects to Motherboard
1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A with BIOS
FlashBack™)
1 x Headphone jack with Mic in
1 x Mic in jack with Optical S/PDIF out
1 x AI OC button
1 x FlexKey button
1 x BIOS FlashBack™ button
1 x Volume Control Knob with Mute Button
Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
Software Features
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel Cable
ROG FPS-II Card
1 x ROG FPS-II Card
ROG STRIX HIVE
1 x ROG STRIX HIVE
1 x USB Type-C® power connection cable
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
Mini-ITX Form Factor
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® Z790 Chipset
Memory
2 x DIMM, Max. 96GB, DDR5
7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile
(XMP)
OptiMem II
* We recommend active airflow to ensure beter memory performance
* Supported memory types, data rate(Speed),
and number of DRAM modules vary depending on the CPU and memory configuration,
for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics
1 x HDMI® port***
2 x Intel® Thunderbolt™ 4 ports (USB
Type-C®) support DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between
CPU types. Please refer to www.intel.com for any updates.
*** Supports 4K@60Hz as specified in HDMI
2.1.
**** VGA resolution support depends on
processors' or graphic cards' resolution.
Expansion Slots
Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
A resolution support depends on processors'
or graphic cards' resolution.
Storage
Total supports 2 x M.2 slots and 2 x SATA
6Gb/s ports
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2280 (supports
PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)***
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports****
*** M.2_1 comes from Intel® Z790 Chipset
when switched to PCIe 4.0 x4 mode
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports.
2 x SATA 6Gb/s ports****
*AMD RAIDXpert2 Technology supports both
NVMe RAID 0/1 and SATA RAID 0/1.
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3
* WiFi 6E 6GHz regulatory may vary between
countries, and function will be ready in Windows 11 or later.
USB
Rear USB (Total 9 ports)
2 x Thunderbolt™ 4 port(s) (2 x USB
Type-C®)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB
Type-C®)
3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB (Total 3 ports)
1 x USB 3.2 Gen 2x2 connector supports 1
USB Type-C®
1 x USB 3.2 Gen 1 header(s) support(s) 2
additional USB 3.2 Gen 1 ports
ROG STRIX HIVE (Total 2 ports)
1 x USB 3.2 Gen 2 port ( 1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A)
ROG FPS-II Card (Total 3 ports)
2 x USB 2.0 header(s) additional 3 USB 2.0
ports**
Audio
ROG High Definition Audio CODEC ALC4050
- Supports: Jack-detection
- High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- ROG Hyper-Grounding Technology
- ESS® SABRE9260Q DAC
- Silver-plated audio jacks
- Optical S/PDIF out port & USB Type-C® port with indepent power solution
*** All audio functions on ROG STRIX Z790-I GAMING WIFI are supported through the ROG STRIX HIVE.
Back Panel I/O Ports
2 x Thunderbolt™ 4 USB Type-C® port(s)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB
Type-C®)
3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
(supports ROG STRIX HIVE)
1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
USB
1 x USB 3.2 Gen 2x2 connector (support(s)
USB Type-C® )
1 x USB 3.2 Gen 1 header(s) support(s) 2
additional USB 3.2 Gen 1 ports
Miscellaneous
1 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Thermal Sensor header
2 x USB Type-C® connectors to Install ROG
FPS-II card
ROG FPS-II card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Thermal Sensor header
1 x Front Panel header
1 x Alternative PCIe Mode switch
2 x USB 2.0 header(s) support(s) additional
3 USB 2.0 ports
Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header(s)
- Addressable Gen 2 header(s)
ROG STRIX HIVE
1 x USB Type-C® connects to Motherboard
1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A with BIOS
FlashBack™)
1 x Headphone jack with Mic in
1 x Mic in jack with Optical S/PDIF out
1 x AI OC button
1 x FlexKey button
1 x BIOS FlashBack™ button
1 x Volume Control Knob with Mute Button
Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
Software Features
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel Cable
ROG FPS-II Card
1 x ROG FPS-II Card
ROG STRIX HIVE
1 x ROG STRIX HIVE
1 x USB Type-C® power connection cable
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
Mini-ITX Form Factor
- Model
- ASUS ROG STRIX Z790-I GAMING WIFI
- Patice
- LGA 1700
- Výrobce chipsetu
- Intel
- Chipset
- Z790
- Grafická karta
- Ano (v závislosti na CPU)
- Podpora generace CPU
- 12. a 13. gen. Intel
- Integrované CPU na MB
- Ne
- Podpora pro paměti typu
- DDR5
- Počet paměťových slotů
- 2
- Maximální frekvence pamětí
- 7600
- Max. velikost op. paměti (GB)
- 64
- XMP
- Ano
- Podpora pro paměti typu ECC
- Ne
- Velikost základní desky
- Mini ITX
- BlueTooth
- Ano
- WiFi
- Ano
- HDMI
- Ano
- DisplayPort / miniDisplayPort
- Ne
- DVI
- Ne
- VGA
- Ne
- Počet pinů USB 2.0 (interní)
- 3
- Počet USB 2.0 (externí)
- 2
- Počet pinů USB 3.x (interní)
- 1
- Počet USB 3.x (externí)
- 4
- USB Typ C (interní)
- 1
- Počet USB Typ C (externí)
- 3
- ThunderBolt (interní)
- Ano
- ThunderBolt (externí)
- Ano
- COM port (interní)
- Ne
- COM port (externí)
- Ne
- LPT port (interní)
- Ne
- LPT port (externí)
- Ne
- Počet slotů PCIe x16
- 1
- Počet slotů PCIe x1
- 0
- Počet slotů PCI
- 0
- Počet slotů M.2
- 2
- Počet konektorů SATA 6Gb/s
- 2
- Počet konektorů SATA 3Gb/s
- 0
- Počet LAN výstupů
- 1x LAN konektor
- Typ síťové karty
- Intel
- Rychlost LAN
- 2,5Gb/s
- IEEE 1394
- Ne
- RAID řadič
- Ano
- TPM Header
- Ne
- ARGB LED Header
- Ano
- Revize
- Bez
- Herní provedení
- Ano
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU s
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU s
