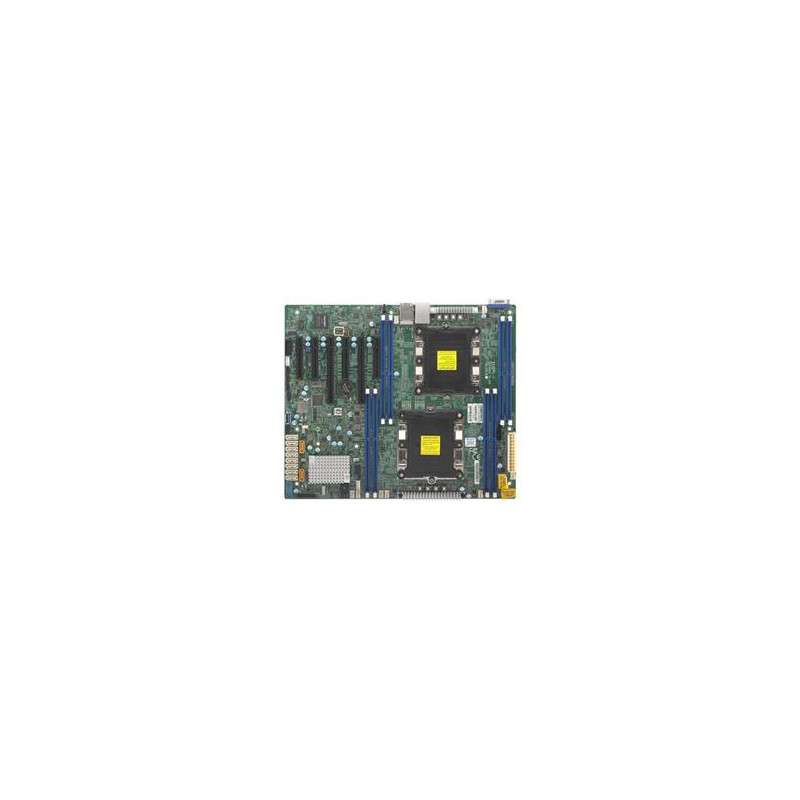

SUPERMICRO MB 2xLGA3647s, iC621, 8x DDR4 ECC, 10xSATA3, 1xM.2, PCI-E 3.0 4,2(x16,x8),2x LAN,IPMI, bulk

Product SKUs MBD-X11DPL-i X11DPL-i Physical Stats Form Factor ATX Dimensions 12.076" x 10.15" (30.67cm x 25.78cm) Processor/Cache CPU 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 140W TDP, 2 UPI up to 10.4 GT/s System Memory Memory Capacity Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes RDIMM: 64GB LRDIMM: 128GB 3DS LRDIMM: 128GB, 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C621 SATA Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512 Graphics Aspeed AST2500 BMC Input / Output SATA 10 SATA3 (6Gbps) port LAN 2 RJ45 Gigabit Ethernet LAN ports USB 4 USB 2.0 ports (2 rear + 2 via headers) 3 USB 3.2 Gen1 ports (2 via headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header) TPM 1 TPM Header Expansion Slots PCI-E 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2260, 2280 Key: M-Key System BIOS BIOS Type AMI UEFI Management Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility FAN 8x 4-pin fan headers (up to 8 fans), Overheat LED indication, PWM fan speed control Temperature CPU thermal trip support, PECI LED CPU / System Overheat LED, UID/Remote UID Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, SDDC, UID Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11DPL-i 1 X11DPL-i Motherboard I/O Cables CBL-0044L 2 SATA CABLE 61CM FLAT S-S PBF I/O Shield MCP-260-00110-0N 1 Standard I/O Shield for X11DPL-i with EMI Gasket Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11DPL-i 1 X11DPL-i Motherboard I/O Cables CBL-0044L 6 SATA CABLE 61CM FLAT S-S PBF I/O Shield MCP-260-00110-0N 1 Standard I/O Shield for X11DPL-i with EMI Gasket Optional Parts List Name Part Number Qty Description Heat Sink (optional, not included) SNK-P0067PD -- 1U Passive Proprietary CPU Heat Sink for X11DPL Motherboard Equipped with a Square Retention Mechanism Heat Sink (optional, not included) SNK-P0068AP4 -- 2U Active CPU Heat Sink Supporting Square Bolster Plate Mounting Mechanism for X11DPL in 2U and Above Systems TPM security module (optional, not included AOM-TPM-9670V -- SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor 1U I/O Shield MCP-260-00111-0N -- 1U I/O Shield for X11DPL-i with EMI Gasket Chassis (Optimized for X11DPL-i) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC813MF2TQC-505CB SC113MFAC2-605CB SC113MFAC2-R804CB SC813MF2TQC-R804CB SC825TQC-R740LPB SCLA25TQC-R609LP SCLA26E1C4-R609LP SC825MBTQC-R802LPB SC835TQC-R802B SC732i-865B SC842XTQ-R606B SC842TQC-865B
