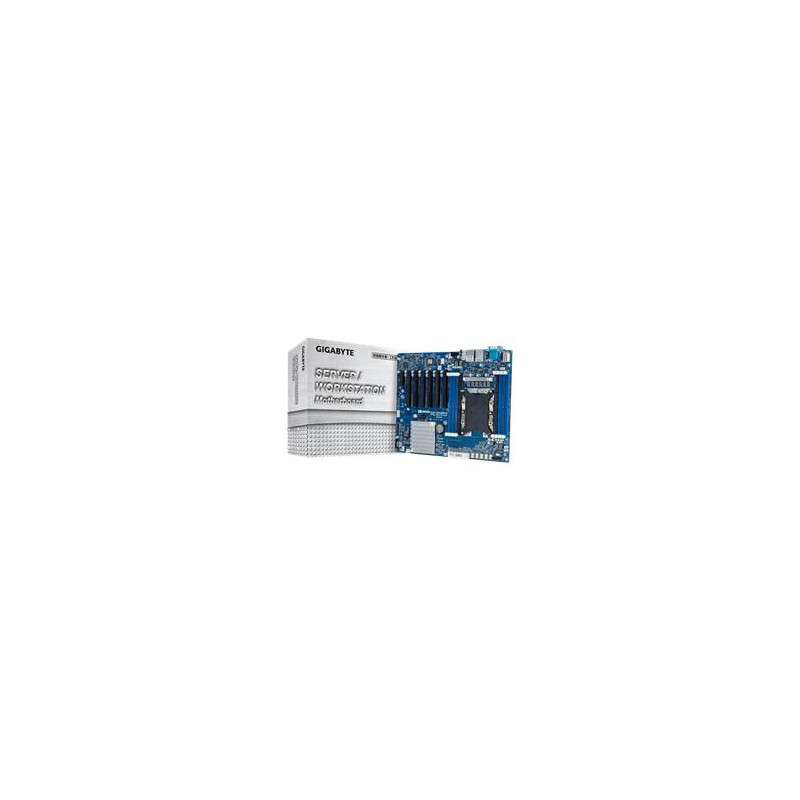

Gigabyte MB WS SRV MD71-HB1, 2x s3647, C622, 12x DDR4r, 14x SATA, 7xPCIe, 2x 10Gb + 2x 1Gb LAN, IPMI

Form Factor E-ATX 305W x 330D (mm) CPU 2nd Generation Intel® Xeon® Scalable Processors Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable Socket 2 x LGA 3647 Socket P Recommended Fan module: Dynatron B5 CPU TDP up to 205W Chipset Intel® C622 Express Chipset Memory 12 x DIMM slots DDR4 memory supported only 6-channel memory architecture RDIMM modules up to 128GB supported LRDIMM modules up to 128GB supported 1.2V modules: 2933/2666/2400 MHz NOTE: Memory frequency 2933MHz is for 2nd Generation Intel® Xeon® Scalable Processors only LAN 2 x 10Gb/s BASE-T LAN ports (1 x Intel® X557-AT2) 2 x 1Gb/s LAN ports 1 x 10/100/1000 management LAN Video Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM Audio - SAS - SATA 3 x SlimSAS for 12 x SATA III 6Gb/s ports 2 x 7-pin SATA III 6Gb/s with SATA DOM supported RAID Intel® SATA RAID 0/1/10/5 Expansion Slots Slot_7: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1 Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1 Slot_5: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1 Slot_4: 1 x PCIe x8 (Gen3 x8 bus) slot from CPU_1, shared with Slot_5 Slot_3: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_0 Slot_2: 1 x PCIe x8 (Gen3 x8 bus) slot from CPU_0, shared with M.2 PCIe x4 bus Slot_1: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_0 2 x M.2 slots: - M-key - PCIe Gen3 x4 per slot - Supports NGFF-22110/2280 cards - From CPU_0 Internal I/O 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 2 x SATA DOM power pin headers 3 x SlimSAS connectors 2 x 7-pin SATA connectors 2 x M.2 slots 2 x CPU fan headers 5 x System fan headers 1 x USB 3.0 header 1 x COM header 1 x LPC TPM header 1 x VROC connector 1 x Front panel header 1 x HDD back plane board header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper 1 x Case open header Rear I/O 2 x USB 3.0 1 x VGA 4 x RJ45 1 x MLAN 1 x ID button with LED TPM 1 x TPM header with LPC interface Optional TPM2.0 kit: CTM000 OS Compatibility For Skylake processors: Windows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 6.9 (x64) or later Red Hat Enterprise Linux 7.3 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 11.4 (x64) or later SUSE Linux Enterprise Server 12.2 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 16.04.1 LTS (x64) or later Ubuntu 18.04 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.0 Update3 or later VMware ESXi 6.5 or later VMware ESXi 6.7 or later VMware ESXi 7.0 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.4.0 or later Citrix Hypervisor 8.0.0 or later For Cascade Lake processors: Windows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 7.6 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 12.3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 18.04 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.0 Update3 or later VMware ESXi 6.5 Update2 or later VMware ESXi 6.7 Update1 or later VMware ESXi 7.0 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.5.0 or later Citrix Hypervisor 8.0.0 or later Board Management Aspeed® AST2500 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Dashboard JAVA Based Serial Over LAN HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings PSU Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors Operating Properties Operating temperature: 10°C to 40°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) Retail Packaging Content 1 x MD71-HB1 1 x I/O shield 1 x Quick Installation Guide 1 x SlimSAS for 8 x SATAIII 6Gb/s cables 2 x Non-Fabric CPU carrier Single Box dimensions: 409 x 355 x 78 mm (TBD) Carton dimension: 729 x 415 x 432 mm(TBD) Quantity: 10 x single box with one carton Bulk Packaging Content 10 x MD71-HB1 10 x I/O shields Carton dimensions: 600 x 473 x 495 mm Reference Numbers Retail: 9MD71HB1MR-00 Bulk: 9MD71HB1NR-00
