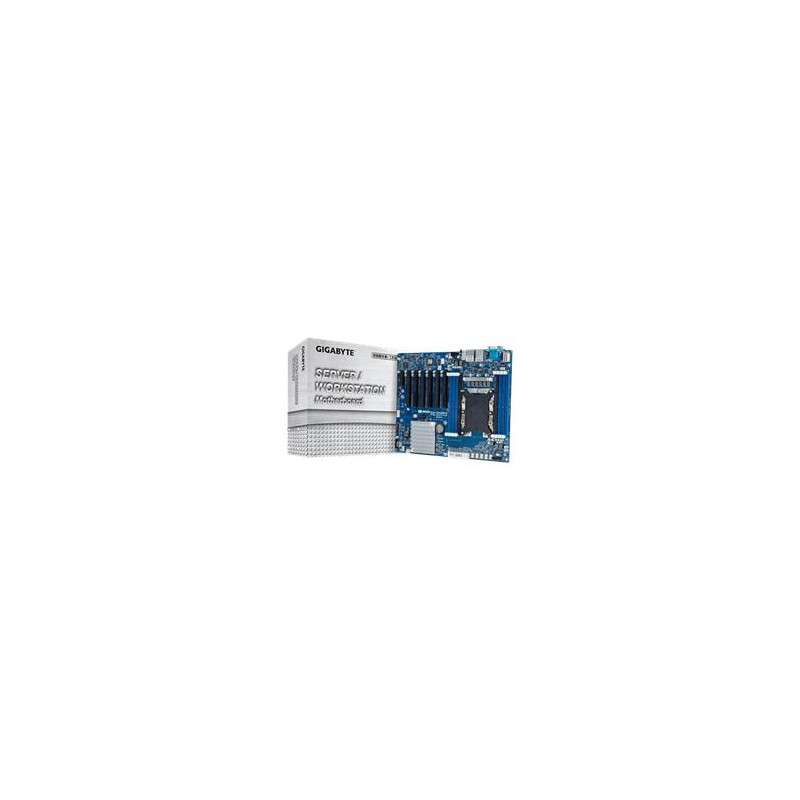

Gigabyte MB WS SRV MU71-SU0, 1x s3647, C621, 8x DDR4r, 8x SATA, 7xPCIe, 2x 1Gb LAN, IPMI

Form Factor ATX 305W x 254D (mm) CPU 2nd Generation Intel® Xeon® Scalable Processors Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor Intel® Xeon® W-3200 Processor Family CPU TDP up to 205W Socket 1 x LGA 3647 Socket P Chipset Intel® C621 Express Chipset Memory 8 x DIMM slots DDR4 memory supported only 6-channel memory architecture RDIMM modules up to 128GB supported LRDIMM modules up to 128GB supported Supports Intel® Optane™ DC Persistent Memory (DCPMM) 1.2V modules: 2933/2666/2400/2133 MHz LAN 2 x 1Gb/s LAN ports ( Intel® I210-AT) 1 x 10/100/1000 management LAN Video Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM Audio N/A SAS N/A SATA 2 x SlimSAS for 8 x SATA III 6Gb/s ports RAID Intel® SATA RAID 0/1/10/5 Expansion Slots Slot_7: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot Slot_6: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_7 Slot_5: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot Slot_4: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_5 Slot_3: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot Slot_2: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_3 Slot_1: 1 x PCIe x4 (Gen3 x4 bus) slot 1 x M.2 slot: - M-key - PCIe Gen3 x4 per slot - Supports NGFF-2280 cards Internal I/O 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 6-pin ATX 12V power connector ( for PCIe slot) 2 x SlimSAS connectors 1 x M.2 slot 1 x CPU fan header 6 x System fan headers 1 x USB 3.0 header 1 x TPM header 1 x VROC connector 1 x Front panel header 1 x Buzzer Rear I/O 4 x USB 3.0 1 x VGA 1 x COM 2 x RJ45 1 x MLAN 1 x ID button with LED TPM 1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 OS Supported For Skylake processors: Windows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 6.9 (x64) or later Red Hat Enterprise Linux 7.3 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 11.4 (x64) or later SUSE Linux Enterprise Server 12.2 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 16.04.1 LTS (x64) or later Ubuntu 18.04 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.0 Update3 or later VMware ESXi 6.5 or later VMware ESXi 6.7 or later VMware ESXi 7.0 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.4.0 or later Citrix Hypervisor 8.0.0 or later For Cascade Lake processors: Windows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 7.6 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 12.3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 18.04 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.0 Update3 or later VMware ESXi 6.5 Update2 or later VMware ESXi 6.7 Update1 or later VMware ESXi 7.0 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.5.0 or later Citrix Hypervisor 8.0.0 or later Board Management Aspeed® AST2500 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Dashboard JAVA Based Serial Over LAN HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings PSU Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connectors 1 x 6-pin ATX 12V power connectors ( for PCIe slot) Operating Properties Operating temperature: 10°C to 40°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) Retail Packaging Content 1 x MU71-SU0 1 x I/O shield 1 x Quick start guide 2 x SlimSAS for 8 x SATAIII 6Gb/s cables Single Box dimensions: 360 x 330 x 80 mm Carton dimension: 674 x 424 x 385 mm Quantity: 10 x single box with one carton Bulk Packaging Content 10 x MU71-SU0 10 x I/O shields Carton dimensions: 600 x 473 x 495 mm Reference Numbers Retail: 9MU71SU0MR-00 Bulk: 9MU71SU0NR-00
