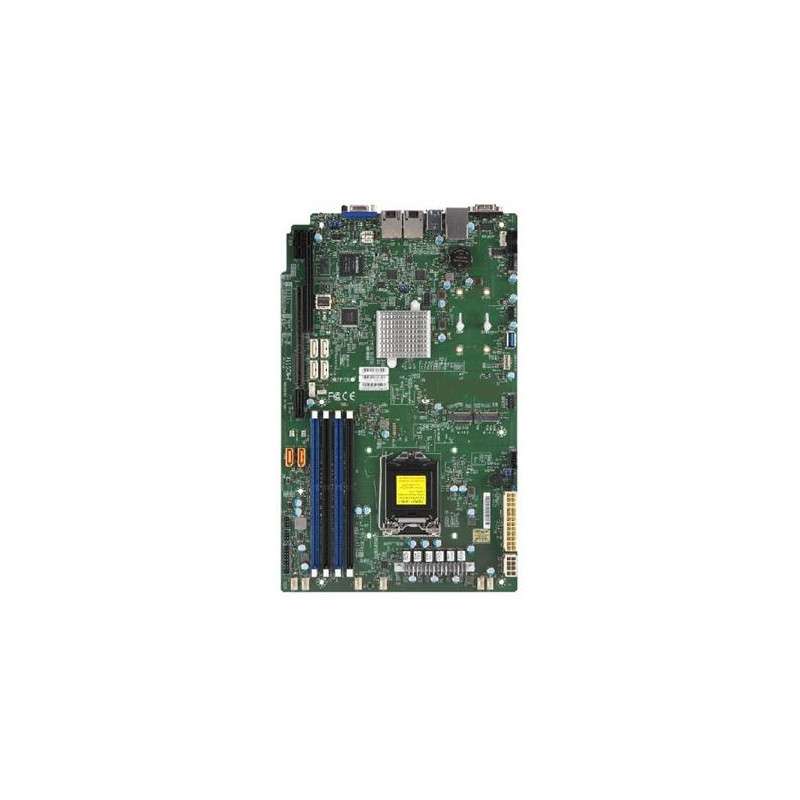

SUPERMICRO MB 1xLGA1151 (Xeon E3-21xx,i3), C246, 4xDDR4, 6xSATA3, 2xM.2, 2xPCIe3.0 (x16 x4), VGA, 2x LAN,IPMI
Jednodesková základní deska s procesorovým socketem LGA-1151 podporující Intel Xeon E3-21xx a Core i3. Nabízí 4 sloty pro DDR4 RAM s kapacitou až 128GB, 6 SATA3 portů, 2 M.2 sloty a dvojí LAN. Integrovaný chipset C246 zajišťuje vysoký výkon a spolehlivost v datových centrech.
7 170 Kč bez DPH 5 925 Kč
Popis produktu
Product SKUs
MBD-X11SCW-F X11SCW-F
Physical Stats
Form Factor Proprietary WIO
Dimensions 8"" x 13"" (20.32cm x 33.02cm)
Processor/Cache
CPU 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
Cores / Cache 8 cores, 16 threads
Note BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core? i3/Pentium®/Celeron® Processors
System Memory
Memory Capacity Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes 4GB, 8GB, 16GB, 32GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C246
SATA Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2500
Network Controllers Dual LAN with Intel® Ethernet Controller I210-AT
Graphics ASPEED AST2500 BMC
Input / Output
SATA 6 SATA3 (6Gbps) ports
LAN 2 RJ45 Gigabit Ethernet LAN ports
USB 6 USB 2.0 ports (2 rear + 4 via headers)
1 USB 3.1 Gen1 ports, 1 Type A)
4 USB 3.1 Gen2 ports (2 rears, 2 via headers)
Video Output 1 VGA port
Serial Port / Header 2 COM Ports (1 rear, 1 header)
TPM 1 TPM Header
Expansion Slots
PCI-E 1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4 (in x8 slot)
M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
Form Factor: 2260/2280/22110
Key: M-Key
Double Height Connector
System BIOS
BIOS Type UEFI 256Mb
BIOS Features ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0
Management
Software Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations ACPI Power Management
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED UID/Remote UID, CPU / System Overheat LED
Other Features ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, Node Manager Support, UID, WOL
Operating Environment
Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
