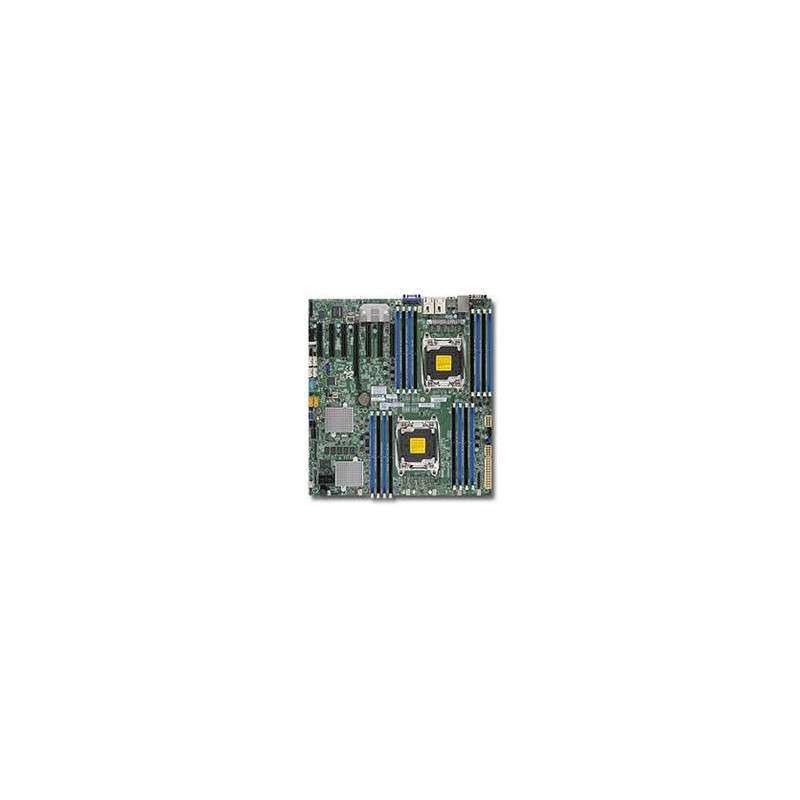

SUPERMICRO MB 2xLGA2011-3, iC612 16x DDR4 ECC R,10xSATA3 8xSAS3 LSI 3108 2GB(PCI-E 3.0 1,6(x16,x8),2x 1GbE LAN,IPMI

Product SKUs MBD-X10DRH-C X10DRH-C Physical Stats Form Factor E-ATX Dimensions 12 " x 13" (30.48cm x 33.02cm) Processor/Cache CPU Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W Cores / Cache Up to 22 cores † / Up to 55MB† cache Note † BIOS version 2.0 or above is required Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support. System Memory Memory Capacity 1TB Registered ECC RDIMM, DDR4-2133MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots Memory Type 2400?/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 128GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C612 SATA Intel® C612 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 SAS Broadcom 3108 SAS3 (12Gbps) controller; 2GB cache; HW RAID 0, 1, 5, 6, 10, 50, 60 Supports up to 16 devices as default, more HDD devices support is also available as an option * For special SKU, please contact your Supermicro Sales. AHCI SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 SCU SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers Dual LAN with Intel® Ethernet Controller I350-AM2 Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) Graphics Aspeed AST2400 BMC Input / Output SATA 10 SATA3 (6Gbps) port LAN 2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Gigabit Ethernet LAN ports USB 4 USB 2.0 ports (2 rear + 2 headers) 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header) 2 fast UART 16550 serial TPM 1 TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8 System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1 Management Software Intel® Node Manager, IPMI2.0, NMI, SPM, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, VBAT FAN 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI LED CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID Other Features Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
