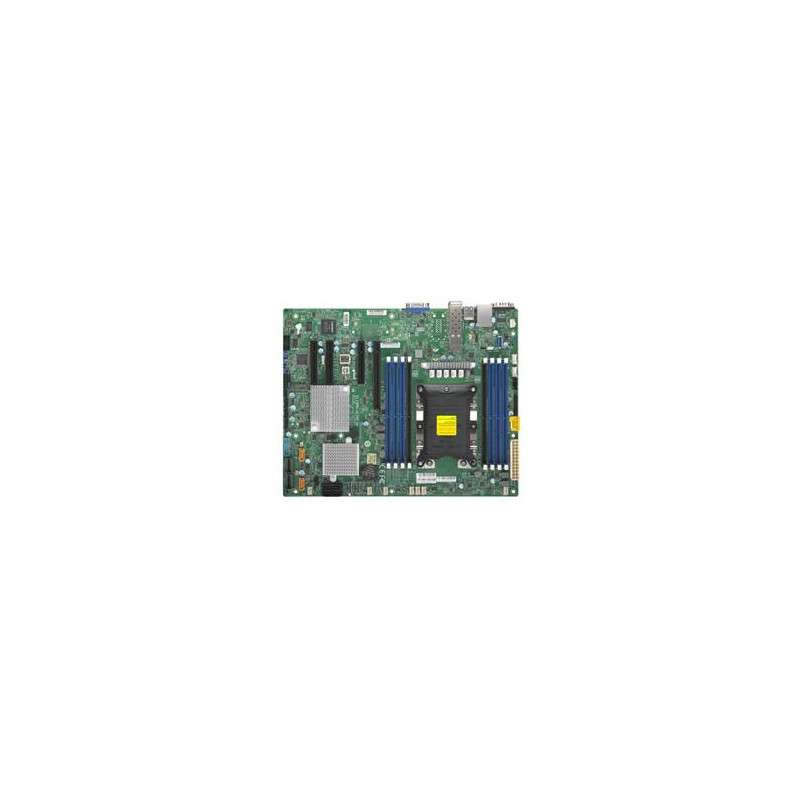

SUPERMICRO MB 1xLGA3647, iC622, 8x DDR4 ECC, 10xSATA3+8xSAS3, 1xM.2, 2xNVMe, PCI-E 3.0 1,2,1(x16,x8,x4),2x 10Gb SFP+, IP

Product SKUs MBD-X11SPH-nCTPF X11SPH-nCTPF Physical Stats Form Factor ATX Dimensions 12" x 9.6" (30.48cm x 24.38cm) Processor/Cache CPU 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP Cores / Cache Up to 28 cores Note BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) System Memory Memory Capacity Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes RDIMM: 8GB, 16GB, 32GB, 64GB LRDIMM: 32GB, 64GB, 128GB 3DS LRDIMM: 64GB, 128GB, 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C622 SATA Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Broadcom® 3008 SW controller for 8 SAS3 (12Gbs) ports; RAID 0,1,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with 10G SFP+ with Intel® X722 + Inphi CS4227 Graphics Aspeed AST2500 BMC Input / Output SATA 10 SATA3 (6Gbps) port LAN 2 10G SFP+ LAN ports USB 8 USB 2.0 ports (2 rear + 6 via headers) 5 USB 3.0 ports (2 rear + 2 via headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x16 (x16 or x8 ), 1 PCI-E 3.0 x8 (x0 or x8 ), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) M.2 M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2280 Key: M-Key Double Height Connector System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.0 RTC (Real Time Clock) Wakeup SMBIOS 3.0 or later Management Software Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage N/A FAN 8x 4-pin fan headers (up to 8 fans) Temperature CPU thermal trip support, PECI LED CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED Other Features N/A Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SPH-nCTPF 1 X11SPH-nCTPF Motherboard I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF I/O Shield MCP-260-00109-0N 1 STD I/O Shield for X11SPH-nCTPF with EMI Gasket Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SPH-nCTPF 1 X11SPH-nCTPF Motherboard QRG MNL-1949-QRG 1 Motherboard Quick Reference Guide I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF I/O Shield MCP-260-00109-0N 1 STD I/O Shield for X11SPH-nCTPF with EMI Gasket Optional Parts List Name Part Number Qty Description 1U I/O Shield MCP-260-00114-0N 1 1U I/O Shield for X11SPH-nCTPF with EMI Gasket TPM security module AOM-TPM-9670H 1 SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor TPM security module AOM-TPM-9671H 1 SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor Chassis (Optimized for X11SPH-nCTPF) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC826BE1C-R802LPB SC216BE1C4-R1K23LPB SC823MTQC-R802LPB SC825MBTQC-R802LPB SCLA26E1C4-R609LP 2U Heatsink:SNK-P0068APS4 SC836BE1C-R1K23B SC847BE1C4-R1K23LPB SC846BE1C-R1K23B 2U Heatsink:SNK-P0068APS4
