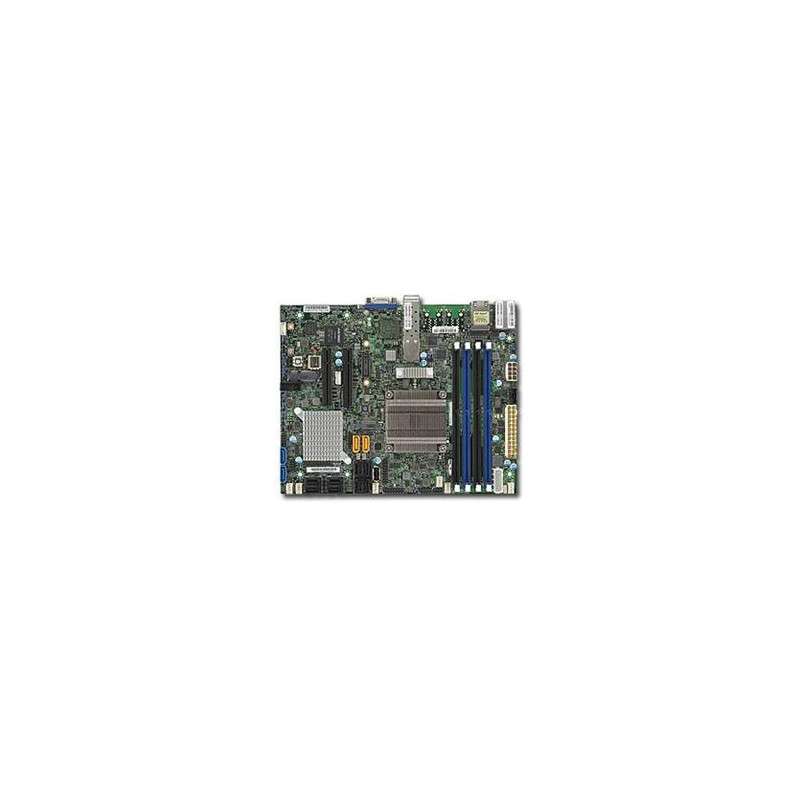

SUPERMICRO FlexATX MB Xeon D-1518 (4-core), 4x DDR4 ECC DIMM,6xSATA,16xSAS3,2x PCI-E 3.0 x8, 2x10Gb SFP+ LAN,IPMI

FlexATX základní deska s procesorem Intel® Xeon® D-1518 (4 jádra, 8 vláken) a podporou až 128GB ECC DDR4 RAM. Nabízí 6 SATA3, 16 SAS3 portů, 2 PCI-E 3.0 x8 sloty a 2 10Gb SFP+ LAN. Integrované IPMI pro pokročilou správu a monitorování. Rozměry 22,86 x 17,78 cm.
Na objednávku
19 394 Kč bez DPH 16 028 Kč

SUPERMICRO
44917
MBD-X10SDV-4C-7TP4F-O
36 měsíců

Popis produktu
Product SKUs MBD-X10SDV-4C-7TP4F X10SDV-4C-7TP4F Physical Stats Form Factor Flex ATX Dimensions 9.0" x 7,25" (22.86cm x 17.78cm) Processor/Cache CPU Intel® Xeon® Processor D-1518. Socket FCBGA1667 supported, CPU TDP support 35W Cores / Cache 4 cores, 8 threads / 6MB cache System Memory Memory Capacity Up to 128GB Registered ECC RDIMM, DDR4-2133MHz Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots Memory Type 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset System on Chip SATA SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Broadcom 2116 SW controller for 16 SATA3 (6Gbps) ports; SAS2 and SATA3 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Network Controllers Dual LAN with 10G SFP+ from D-1500 SoC Dual LAN with 1GbE with Intel® I210 Graphics Aspeed AST2400 BMC Input / Output SATA 4 SATA3 (6Gbps) port LAN 2 10G SFP+ LAN ports 2 1GbE LAN ports 1 RJ45 Dedicated IPMI LAN port USB 5 USB 2.0 ports (4 headers, 1 Type A) 2 USB 3.0 ports (2 rear) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header) TPM TPM Header Expansion Slots PCI-E 2 PCI-E 3.0 x8 Interface: PCI-E 2.0 x1 Mini-PCI-E with mSATA support M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2242, 2280, 22110 Key: M-Key System BIOS BIOS Type 128Mb SPI Flash with AMI BIOS BIOS Features PCI 3.0 ACPI 5.0 USB Keyboard support RTC (Real Time Clock) Wakeup SMBIOS 2.8 UEFI 2.4 Management Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management +12V DC Power Input Control of power-on for recovery from AC power loss CPU thermal trip support for processor protection M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL ATX Power connector PC Health Monitoring Voltage +12V, +3.3V, +5V, 1.2V (VDIMM), 6 -fan status, Chassis intrusion header, System level control, VBAT FAN 6x 4-pin fan headers (up to 6 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI LED CPU / System Overheat LED Other Features 12V DC or ATX Power Source, Chassis intrusion detection, Chassis intrusion header, RoHS Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
