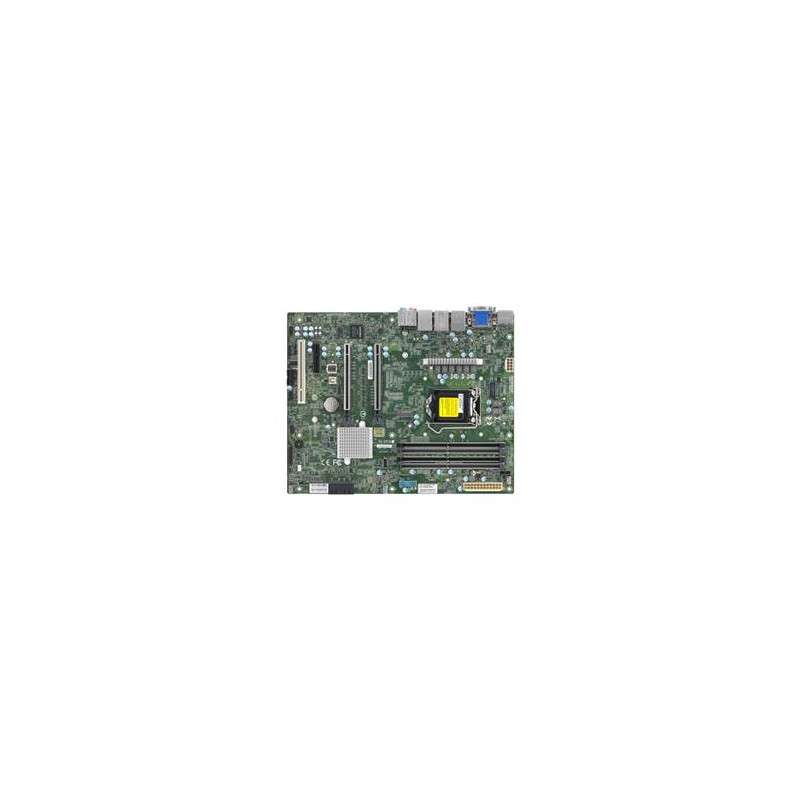

SUPERMICRO MB LGA1200 (Xeon W-12xx, core), W480,4xDDR4,4xSATA3,2xM.2,3xPCIe3.0 (x16 8 4),HDMI,DP,DVI,Audio,2x LAN,IPMI

Product SKUs MBD-X12SCA-F X12SCA-F Physical Stats Form Factor ATX Dimensions 12" x 9.6" (30.48cm x 24.38cm) Processor/Cache CPU 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® W-1200 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP Cores / Cache Up to 10 cores System Memory Memory Capacity 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots Memory Type Up to 128GB of Unbuffered (UDIMM) ECC/non-ECC memory, with speeds of up to 2933MHz (2DPC) DIMM Sizes 2GB, 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V On-Board Devices Chipset Intel® W480 SATA Intel® W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Dedicated IPMI LAN Port Network Controllers Single LAN with Intel® PHY I219LM LAN controller for AMT/vPro Single LAN with Intel® Ethernet i225LM Audio ALC 888S HD Audio Graphics VGA port is dedicated for IPMI Input / Output LAN 1 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port 1 RJ45 2.5 Gigabit Ethernet LAN port USB 2 USB 2.0 ports (2 via headers) 3 USB 3.2 Gen1 ports (1 via header + 2 Type A) 5 USB 3.2 Gen2 ports (3 Rear Type A + 1 Rear Type C, 1 via header) Video Output 1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port, 1 VGA port, VGA port is dedicated for IPMI Serial Port / Header 1 COM Port (1 header) TPM 1 TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x4, 2 PCI-E 3.0 x16 slots (16/NA or 8/8) 1 - 5V PCI 32bit M.2 M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 Form Factor: 2280/22110 Key: M-Key System BIOS BIOS Type 256Mb SPI Flash with AMI BIOS BIOS Features ACPI 6.0 Plug and Play (PnP) BIOS rescue hot keys Riser card auto-detection support SMBIOS 3.0 or later Management Software AMT, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SSM, SUM, SuperDoctor® 5, vPro, Watchdog System Management Software SuperDoctor 5 IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support *** OOB Bios refresh is not supported on X12SCA-F Power Configurations ACPI Power Management Power-on mode for AC power recovery Power button override mechanism Wake-on-LAN Power supply monitoring PC Health Monitoring Voltage +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, CPU temperature, CPU thermal trip support, LAN temperature, Memory temperature, PCH temperature, System temperature, VBAT, VRM temperature Temperature N/A LED BMC/IPMI Heartbeat LED, UID/Remote UID, Power LED, Catastrophic Error LED Other Features 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, UID, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X12SCA-F 1 X12SCA-F Motherboard SATA Cables CBL-0044L 2 SATA Cables I/O Shield MCP-260-00151-0N 1 IO shield Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X12SCA-F 1 X12SCA-F Motherboard Quick Reference Guide MNL-2263-QRG 1 Quick Reference Guide SATA Cables CBL-0044L 4 SATA Cables I/O Shield MCP-260-00151-0N 1 IO shield Chassis (Optimized for X12SCA-F) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SCGS5A-754K SC732D3-903B SC732D4-903B SC732D4-668B SC842TQC-668B
