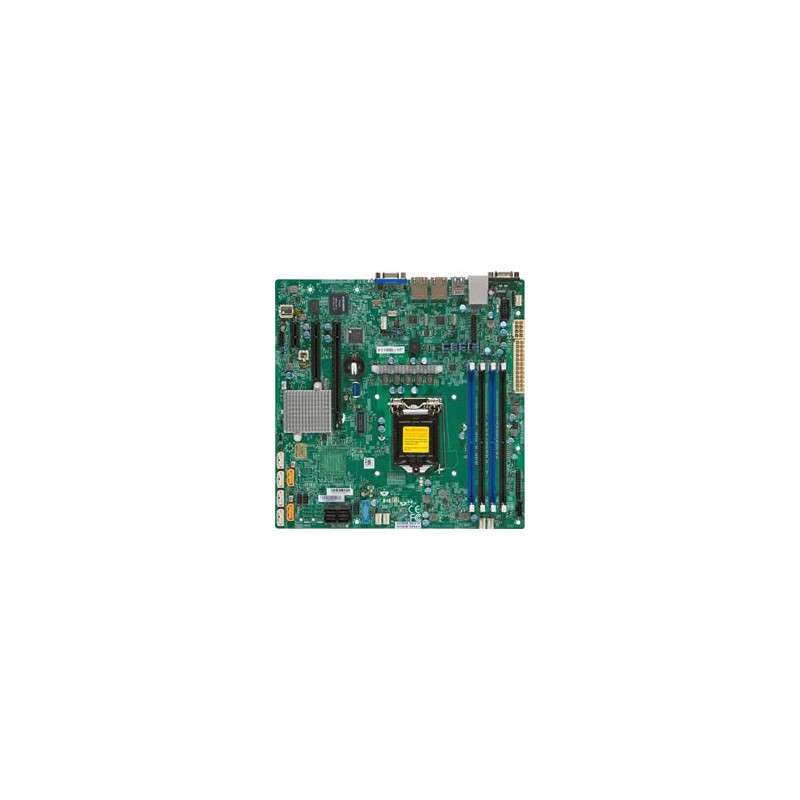

SUPERMICRO MB 1xLGA1151, iC232,DDR4,6xSATA3,PCIe 3.0 (1 x8 (in x16), 1 x4 (in x8) , 1 x1 (in x2)), 2xNVMe, No IPMI

Product SKUs MBD-X11SSL-nF X11SSL-nF Physical Stats Form Factor Micro-ATX Dimensions 9.6" x 9.6" (24.38cm x 24.38cm) Processor/Cache CPU Intel® 7th/6th Generation Core i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5. Single Socket H4 (LGA 1151) supported, CPU TDP support 80W Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? i3 Processors and Intel® Xeon® Processor E3-1200 v6 series System Memory Memory Capacity 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes 4GB, 8GB, 16GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C232 SATA Intel® C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2400 BMC Network Controllers Dual LAN with Intel® Ethernet Controller I210-AT Graphics Aspeed AST2400 BMC Input / Output USB 6 USB 2.0 ports (2 rear + 4 headers) 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x8 (in x16 slot), 1 PCI-E 3.0 x4 (in x8 slot), 1 PCI-E 3.0 x1 System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features ACPI 1.0 / 2.0 / 3.0 / 4.0 APM 1.2 DMI 2.3 Hardware BIOS Virus protection PCI 2.3 Plug and Play (PnP) SMBIOS 2.7.1 USB Keyboard support UEFI 2.3.1 Management Software IPMI2.0, NMI, SSM, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT FAN 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI LED UID/Remote UID, CPU / System Overheat LED Other Features Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
