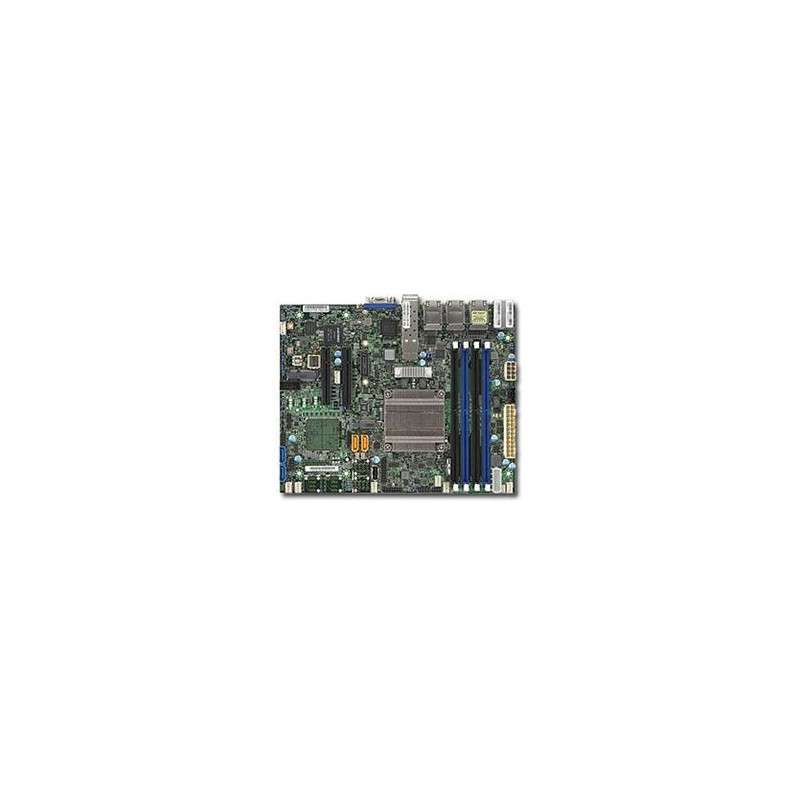

SUPERMICRO FlexATX MB Xeon D-1518 (4-core), 4x DDR4 ECC reg DIMM,4xSATA,2x PCI-E 3.0 x8, M.2, 6x1GbE+2x10GbE SFP+, IPMI

Product SKUs MBD-X10SDV-TP8F X10SDV-TP8F Physical Stats Form Factor Flex ATX Dimensions 9.0" x 7.25" (22.86cm x 18.42cm) Processor/Cache CPU Intel® Xeon® Processor D-1518. Single Socket FCBGA1667 supported, CPU TDP support 35W Cores / Cache 4 cores, 8 threads / 6MB cache System Memory Memory Capacity Up to 128GB Registered ECC RDIMM, DDR4-2133MHz Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots Memory Type 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset System on Chip SATA SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 RSTe IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Network Controllers Dual LAN with 10G SFP+ from D-1500 SoC Quad LAN with 1GbE with Inte® I350-AM4 Dual LAN with 1GbE with Intel® I210 Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) Graphics Aspeed AST2400 BMC Input / Output SATA 4 SATA3 (6Gbps) port LAN 1 RJ45 Dedicated IPMI LAN port 2 10G SFP+ LAN ports 6 1GbE LAN ports USB 5 USB 2.0 ports (4 headers, 1 Type A) 2 USB 3.0 ports (2 rear) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header) TPM 1 TPM Header Expansion Slots PCI-E 2 PCI-E 3.0 x8 M.2 PCI-E 3.0x4, M Key 2242/2280/22110, Mini-PCI-E with mSATA support M.2 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280/22110 System BIOS BIOS Type 128Mb SPI Flash with AMI BIOS BIOS Features PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection RTC (Real Time Clock) Wakeup SMBIOS 2.8 UEFI 2.4 Management Software Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management ATX Power connector +12V DC Power Input Control of power-on for recovery from AC power loss CPU thermal trip support for processor protection M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, 1.2V (VDIMM), 6 -fan status, Chassis intrusion header, HT, Memory, Memory Voltages, Supports system management utility, System level control, System temperature, VBAT FAN 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for on/off control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI LED CPU / System Overheat LED, UID/Remote UID Other Features 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Hyper-Speed Technology hardware acceleration, Intel Smart Response Technology, M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control, UID, WOL Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
