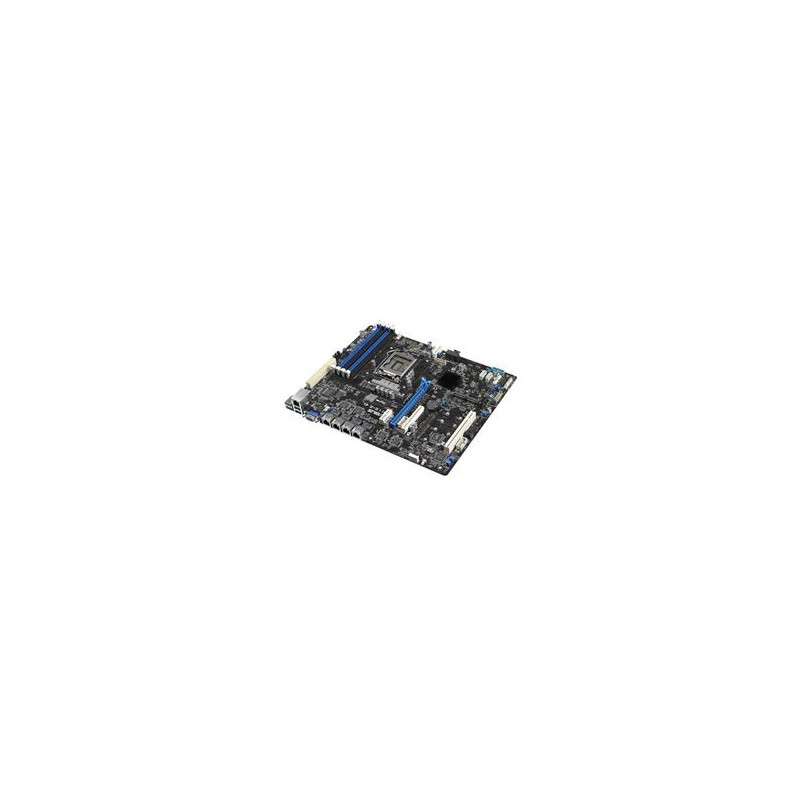

ASUS MB P11C-C 4L 1x 11551 (Xeon E), 4x DDR4 ECC, 6x SATA, 2x M.2(22110), 4x LAN, IPMI

Processor / System Bus 1 x Socket LGA1151 Intel® Xeon® processor E-2100 family Intel® Xeon® processor E-2200 family The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor Core Logic Intel® C242 Chipset Memory Total Slots : 4 (2-channel) Capacity : Maximum up to 128GB UDIMM Memory Type : DDR4 2666/2400 UDIMM non ECC and with ECC Memory Size : 32GB, 16GB, 8GB, 4GB * Refer to support page for more information Expansion Slots Total Slot : 3 Slot Location 1 : PCI 32bit/33MHz Slot Location 5 : PCI-E x8 Slot Location 6 : PCI-E x16 Slot Location 7 : MIO Slot for Audio card Follow SSI Location# Form Factor ATX (12"x9.6", 305mm x 244mm) ASUS Features FAN speed control Rack Ready (Rack and Pedestal dual use) ASUS Control Center Storage SATA Controller : Intel® C242 Chipset 6 x SATA3 6Gb/s ports 2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *1 Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) Networking 4 x Intel® I210AT + 1 x Mgmt LAN Graphic Aspeed AST2500 with 32MB VRAM On Board I/O 1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 1 x COM port 1 x USB 3.0 pin header 1 x USB 2.0 pin header 1 x USB connector*2 6 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 4 x Front LAN LED 2 x Serial Port Header 1 x VGA Header 2 x M.2 Connector 1 x Onboard header for optional management card Back I/O Ports 1 x External Serial Port 2 x USB 3.1 Gen 2 2 x USB 3.1 Gen 1 1 x VGA Port 4 x GbE LAN + 1 x Mgmt LAN Management Solution ASUS Control Center Enterprise (Optional) Optional ASMB9-iKVM for KVM-over-Internet Environment Operation temperature: 10? ~ 35? Non operation temperature: -40? ~ 70? Non operation humidity: 20% ~ 90% ( Non condensing) Weight Gift Box (1-in-1) Net Weight : 0.76 KG Gross Weight : 1.3 KG Bulk Pack (10-in-1) Net Weight : 6.9 KG Gross Weight : 9.5 KG Accessories Gift Box (1-in-1) 2 x Support CD 1 x I/O shield 6 x SATA 6G cables 1 x Plate for LGA1151 Bulk Pack (10-in-1) 2 x Support CD 1 x I/O shield 1 x Plate for LGA1151 Monitoring CPU Temperature Fan RPM Note *1 2 x M.2 (NGFF 22110/2280/2260/2242, support PCIE or SATA signal, gray SATA port will disable when M.2 is SATA signal) *2 1 x USB 3.0 connector (Type A USB socket)
