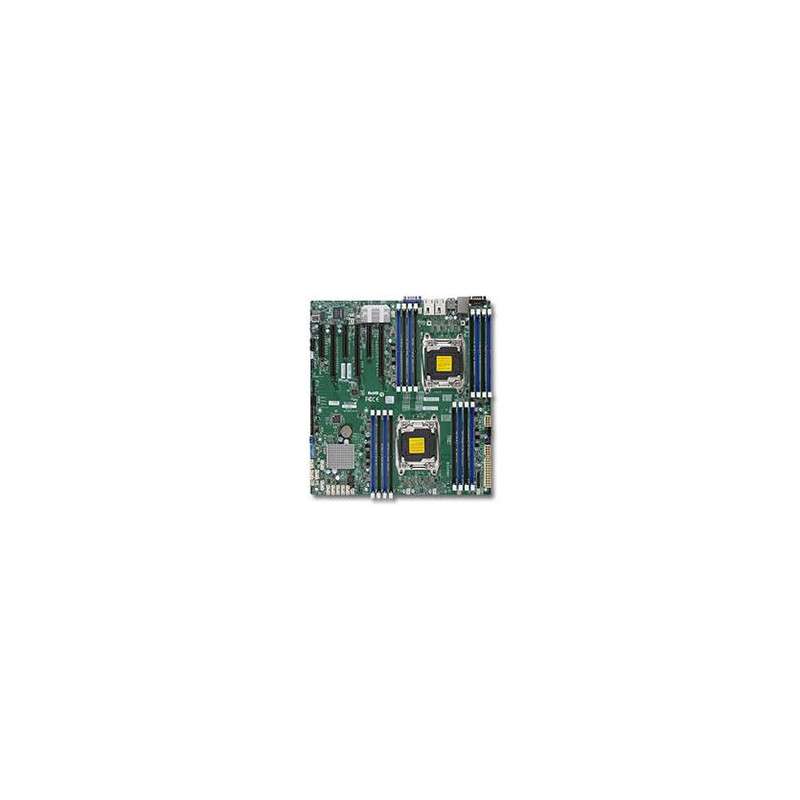

SUPERMICRO MB 2xLGA2011-3, iC612 16x DDR4 ECC R,10xSATA3,(PCI-E 3.0 3,3(x16,x8),2x 10GbE LAN,IPMI

Product SKUs MBD-X10DRi-T X10DRi-T Physical Stats Form Factor E-ATX Dimensions 12" x 13" (30.5cm x 33.0cm) Processor/Cache CPU Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s Cores / Cache Up to 22 cores † / Up to 55MB† cache Note † BIOS version 2.0 or above is required Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support. System Memory Memory Capacity ; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots16x 288-pin DDR4 DIMM slots Memory Type 2400?/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 128GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C612 SATA Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 AHCI SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 SCU SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers Dual LAN with Intel® X540 10GBase-T Ethernet Controller Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Graphics Aspeed AST2400 BMC Input / Output SATA 10 SATA3 (6Gbps) port LAN 2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port USB 6 USB 2.0 ports (2 rear + 4 headers) 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header) 2 fast UART 16550 serial TPM 1 TPM Header Expansion Slots PCI-E 3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1 Management Software Intel® Node Manager, NMI, SPM, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +3.3V, +5V, +5V standby, 3.3V standby, 5 Phase-switching voltage regulator, Memory Voltages, Monitors for CPU Cores, VBAT FAN 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support LED CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID Other Features Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
