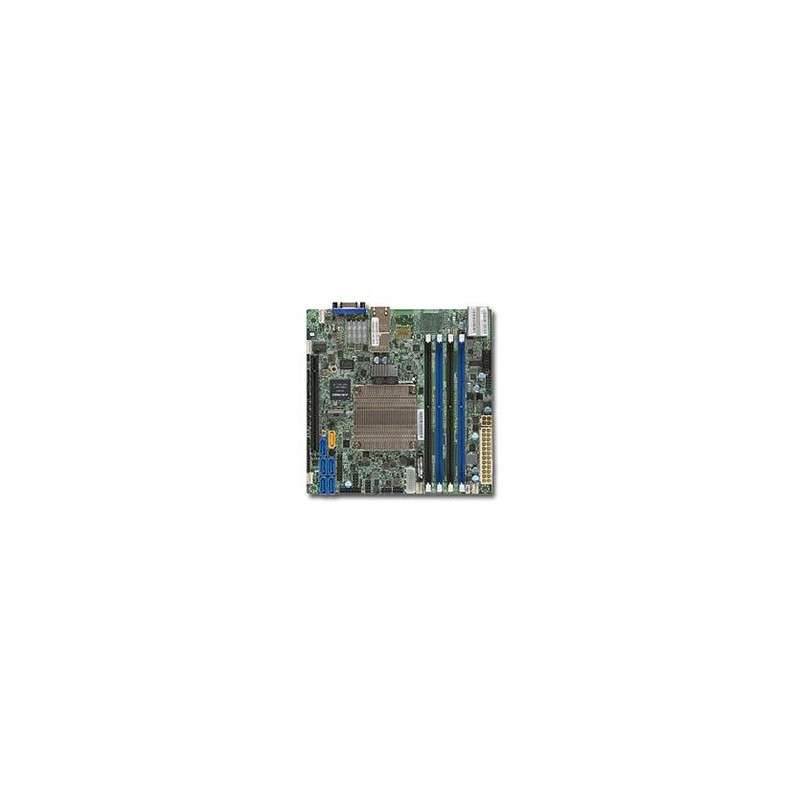

SUPERMICRO mini-ITX MB Xeon D-1520 1521 (4-core), 4x DDR4 ECC DIMM,6xSATA1x PCI-E 3.0 x16, 2x10GbE LAN,IPMI

Product SKUs MBD-X10SDV-4C-TLN2F X10SDV-4C-TLN2F Physical Stats Form Factor Mini-ITX Dimensions 6.7" x 6.7" (17.02cm x 17.02cm) Processor/Cache CPU Intel® Xeon® Processor D-1521. Single Socket FCBGA1667 supported, CPU TDP support 45W Cores / Cache 4 cores, 8 threads / 6MB cache System Memory Memory Capacity Up to 128GB Registered ECC RDIMM, DDR4-2133MHz Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots Memory Type 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset System on Chip SATA SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 RSTe IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Network Controllers Dual LAN with 10Gbase-T Dual LAN with SoC Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) Graphics Aspeed AST2400 BMC Input / Output SATA 6 SATA3 (6Gbps) port LAN 2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port USB 4 USB 2.0 ports (4 headers, Type A)) 2 USB 3.0 ports (2 rear) Video Output 1 port Serial Port / Header 1 COM Port (1 header) TPM TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x16 M.2 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280 System BIOS BIOS Type 128Mb SPI Flash with AMI BIOS BIOS Features PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection RTC (Real Time Clock) Wakeup SMBIOS 2.8 UEFI 2.4 Management Software Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management CPU Fan auto-off in sleep mode Power-on mode for AC power recovery PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, Chassis intrusion header, HT, Memory, Memory Voltages, Monitors for CPU Cores, Supports system management utility, System level control, System temperature FAN 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, System level control, Thermal control tachometer fan connectors Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI LED CPU / System Overheat LED Other Features 12V DC or ATX Power Source, 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Hyper-Speed Technology hardware acceleration, M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control, UID, WOL Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
