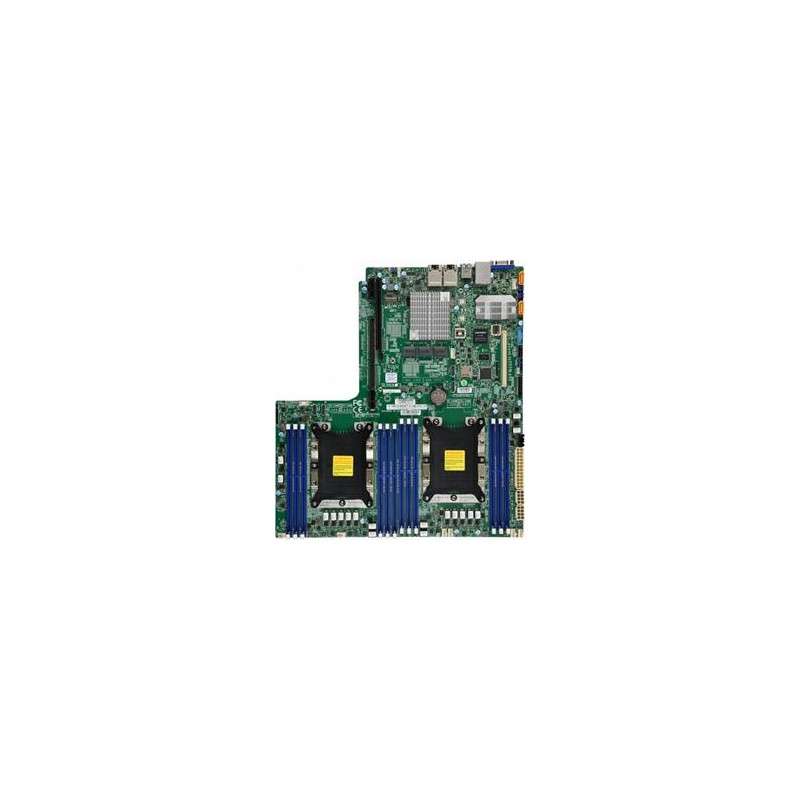

SUPERMICRO MB 2xLGA3647, iC621, 12x DDR4 ECC, 14xSATA3, 4x NVMe, 1xM.2, PCI-E 3.0 1,1,1(x32,x16,AOM),2x 10GLAN,IPMI, WIO

Product SKUs MBD-X11DDW-NT X11DDW-NT Physical Stats Form Factor Proprietary WIO Dimensions 12.3" x 13.4" (31.24cm x 34.04cm) Processor/Cache CPU 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) System Memory Memory Capacity Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, in 12 DIMM slots; Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only). Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes RDIMM: 64GB, 128GB LRDIMM: 64GB, 128GB 3DS LRDIMM: 128GB, 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C622 SATA Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with 10Gbase-T from C622 Graphics Aspeed AST2500 BMC Input / Output LAN 2 RJ45 10GBase-T ports USB 6 USB 3.0 ports (4 rear + 2 via headers) Video Output 1 VGA port TPM 1 TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x32 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot, 1 PCI-E 3.0 x16 for Add-On-Module (AOM) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) M.2 M.2 Interface: PCI-E 3.0 x4 Form Factor: 2242, 2260, 2280, 22110 Key: M-Key System BIOS BIOS Type UEFI 256Mb Management Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, Memory Voltages, Monitors CPU voltages FAN 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, PWM fan speed control, Status monitoring for speed control Temperature CPU thermal trip support, Monitoring for CPU and chassis environment LED CPU / System Overheat LED, UID/Remote UID, BMC/IPMI Heartbeat LED, Power LED Other Features Chassis intrusion detection, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, RoHS, UID Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
