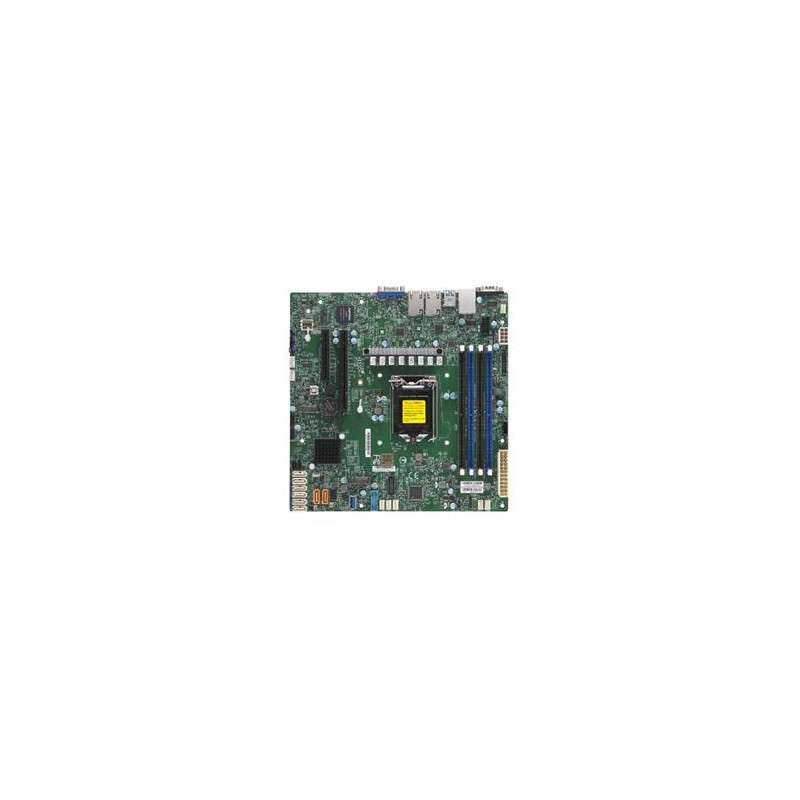

SUPERMICRO MB 1xLGA1151 (Xeon E3-21xx,i3), C246, 4xDDR4, 8xSATA3, 2x M.2, 2xPCIe3.0 x8, VGA, 2x LAN, IPMI

Product SKUs MBD-X11SCH-F X11SCH-F Physical Stats Form Factor Micro-ATX Dimensions 9.6" x 9.6" (24.38cm x 24.38cm) Processor/Cache CPU 8th/9th Generation Intel® Core?i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor. Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP Cores / Cache 8 cores, 16 threads Note BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core? i3/Pentium®/Celeron® Processors System Memory Memory Capacity Up to 128GB DDR4 ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM 72-bit DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C246 SATA Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with Intel® Ethernet Controller I210 Graphics Aspeed AST2500 BMC Input / Output USB 6x USB 2.0 ports (2 rear, 4 via headers); 2x USB 3.1 Gen2 ports (rear); 3x USB 3.1 Gen1 ports (1 Type-A, 2 via header) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM 1 TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x8 (in x16 slot), 1 PCI-E 3.0 x8 M.2 M.2 Interface: PCI-E 3.0 x4 Form Factor: 2280, 22110 Key: M-Key Double Height Connector System BIOS BIOS Type UEFI 256Mb BIOS Features ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0 Management Software Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT FAN 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors Temperature N/A LED CPU / System Overheat LED, UID/Remote UID Other Features ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, UID, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SCH-F 1 X11SCH-F Motherboard I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SCH-F with EMI Gasket Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SCH-F 1 X11SCH-F Motherboard QRG MNL-2105-QRG 1 Motherboard Quick Reference Guide I/O Cables CBL-0044L 6 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SCH-F with EMI Gasket Optional Parts List Name Part Number Qty Description TPM security module AOM-TPM-9670H SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor TPM security module AOM-TPM-9670V SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor TPM security module AOM-TPM-9671H SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor TPM security module AOM-TPM-9671V SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor Chassis (Optimized for X11SCH-F) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC813MFTQC-R407CB SC514-R407C SC515-R407
