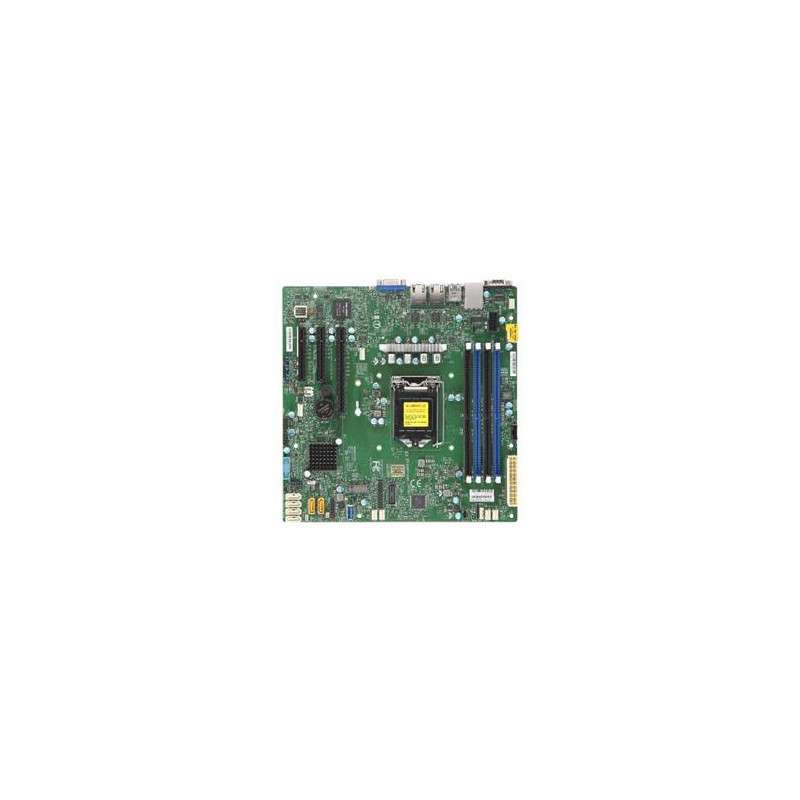

SUPERMICRO MB 1xLGA1151 (Xeon E3-21xx,i3), C242, 4xDDR4, 6xSATA3, M.2, 3xPCIe3.0 (x8, 2 x4), VGA, 2x LAN, IPMI

Product SKUs MBD-X11SCL-F X11SCL-F Physical Stats Form Factor microATX Dimensions 9.6" x 9.6" (24.38cm x 24.38cm) Processor/Cache CPU 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP Cores / Cache 6 cores, 12 threads Note BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core? i3/Pentium®/Celeron® Processors System Memory Memory Capacity Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots Memory Type 2667/2400/2133MHz ECC DDR4 SDRAM 72-bit DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C242 SATA Intel® C242 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with 1GbE with Intel® I210 Graphics ASPEED AST2500 BMC Input / Output USB 6 USB 2.0 ports (2 rear + 4 via headers) 5 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers, 1 Type A) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM 1 TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x8 (in x16 slot), 2 PCI-E 3.0 x4 (in x8 slot) M.2 M.2 Interface: 1 PCI-E 3.0 x4 Form Factor: 2280/22110 Key: M-Key Double Height Connector System BIOS BIOS Type UEFI 256Mb BIOS Features ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0 Management Software IPMI2.0, KVM with dedicated LAN, SSM, SUM, SuperDoctor® 5 Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT Temperature Thermal Monitor 2 (TM2) support, CPU thermal trip support, PECI, Monitoring for CPU and chassis environment LED CPU / System Overheat LED, UID/Remote UID Other Features ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, UID, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SCL-F 1 X11SCL-F Motherboard I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SCL-F with EMI Gasket Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SCL-F 1 X11SCL-F Motherboard QRG MNL-2063-QRG 1 Motherboard Quick Reference Guide I/O Cables CBL-0044L 6 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SCL-F with EMI Gasket Optional Parts List Name Part Number Qty Description TPM security module AOM-TPM-9670H 1 SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor TPM security module AOM-TPM-9671H 1 SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor Chassis (Optimized for X11SCL-F) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC813MFTQC-R407CB SC514-R407C SC515-R407 SC113MTQ-R400CB SCLA25TQC-R609LP SC731i-403B SC731i-404B = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU Server (Optimized for X11SCL-F) Server Name SYS-5039C-I
