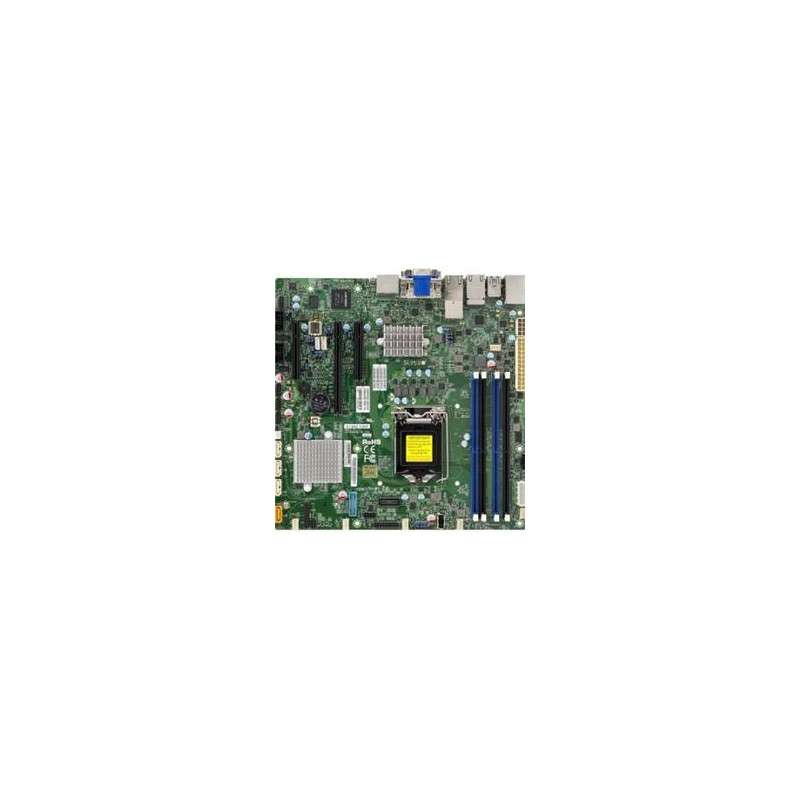

SUPERMICRO MB 1xLGA1151 (i7 do 1U), iC236,DDR4,4xSATA3,PCIe 3.0 (1 x16, 2 x4),HDMI,DP,DVI,Audio,12v DC, IPMI

Product SKUs MBD-X11SSZ-F X11SSZ-F Physical Stats Form Factor Micro-ATX Dimensions 9.6" x 9.6" (24.38cm x 24.38cm) Processor/Cache CPU Intel® 6th Generation Core? i3 series Intel® 6th Generation Core? i5 series Intel® 6th Generation Core? i7 series Intel® 7th Generation Core? i3 series Intel® 7th Generation Core? i5 series Intel® 7th Generation Core? i7 series Intel® Celeron® Intel® Pentium® Intel® Xeon® processor E3-1200 v5 series Intel® Xeon® Processor E3-1200 v6 series Socket H4 (LGA 1151) supported; CPU TDP support Up to 91W Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? Processors and Intel® Xeon® Processor E3-1200 v6 series System Memory Memory Capacity Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots Memory Type 2400/2133/1866MHz ECC DDR4 SDRAM 72/64-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes 4GB, 8GB, 16GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C236 SATA Intel® C236 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Intel RSTe Network Controllers Single Intel® PHY I219LM LAN controller Single Intel® Ethernet Controller I210-AT Audio ALC 888S HD Audio Graphics Intel® HD Graphics, Aspeed AST2400 BMC 3 Independent Displays, VGA is from BMC A CPU with processor graphics is required for Intel HD Graphics (DVI/DP). Example: E3-1275 v5 Input / Output USB 9 USB 2.0 ports (2 rear, 6 via header(s), 1 Type A) 4 USB 3.0 ports (2 rear, 2 via header(s)) Video Output 2 DP (DisplayPort) port(s), 1 DVI - I port(s), 1 VGA port(s) Serial Port / Header 2 COM Ports (2 header(s)) TPM 1 TPM 2.0 Header Expansion Slots PCI-E 1 PCI-E 3.0 x16 (in x16 slot) 2 PCI-E 3.0 x4 (in x8 slot) System BIOS BIOS Type AMI UEFI BIOS Features Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 Hardware BIOS Virus protection USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1 Management Software AMT IPMI2.0 KVM with dedicated LAN NMI SuperDoctor® 5 vPro Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 1.2V (VDIMM), 6 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT FAN 6x 4-pin fan headers (up to 6 fans) 6 fans with tachometer status monitoring Fan speed control Overheat LED indication Pulse Width Modulated (PWM) fan connectors PWM fan speed control System level control Thermal control tachometer fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI LED CPU / System Overheat LED UID/Remote UID Other Features 8-pin 12v DC power connector ACPI power management ATX Power connector Chassis intrusion header Control of power-on for recovery from AC power loss CPU thermal trip support for processor protection Intel Smart Response Technology RoHS System level control UID WOL Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
