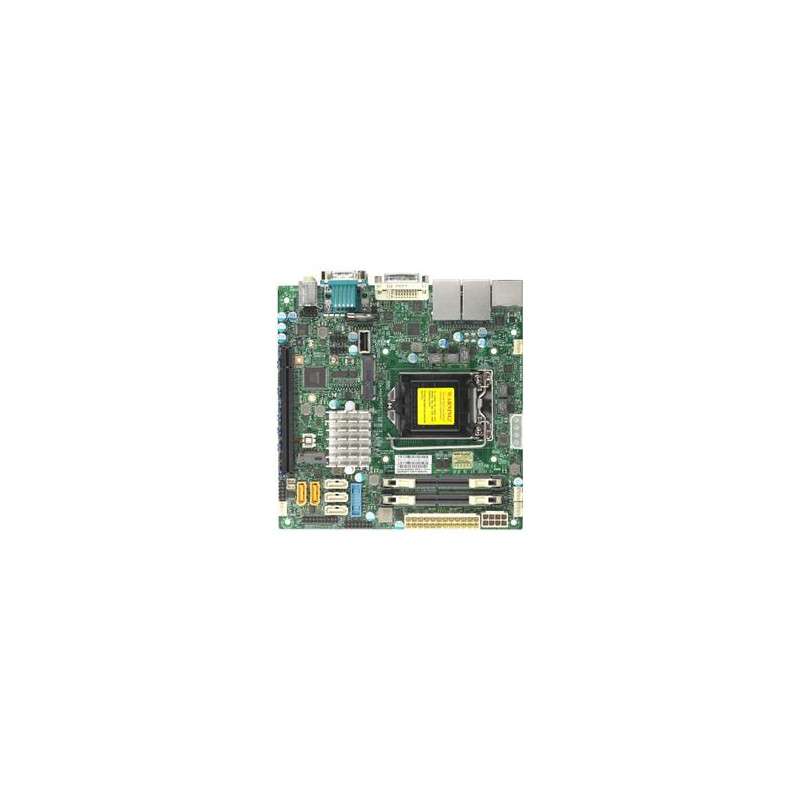

SUPERMICRO MB 1xLGA1151 (i7), Q170,DDR4,5xSATA3,PCIe 3.0 (1 x16),1xM.2,HDMI,DP,DVI,Audio

Product SKUs MBD-X11SSV-Q X11SSV-Q Physical Stats Form Factor Mini-ITX Dimensions 6.7" x 6.7" (17.02cm x 17.02cm) Processor/Cache CPU Intel® 6th Generation Core? i3 series Intel® 6th Generation Core? i5 series Intel® 6th Generation Core? i7 series Intel® 7th Generation Core? i3 series Intel® 7th Generation Core? i5 series Intel® 7th Generation Core? i7 series Intel® Celeron® Intel® Pentium® Socket LGA 1151 supported; CPU TDP support Up to 91W Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? Processors System Memory Memory Capacity Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2400MHz, in 2 DIMM slots Memory Type 2400/2133/1866MHz Non-ECC DDR4 SDRAM 72-bit, 260-pin gold-plated SODIMMs DIMM Sizes 4GB, 8GB, 16GB Memory Voltage 1.2V On-Board Devices Chipset Intel® Q170 Express SATA Intel® Q170 Express controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Intel RST Network Controllers Single Intel® PHY I219LM LAN controller Single Intel® Ethernet Controller I210-AT Audio ALC 888S HD Audio Graphics Intel® HD Graphics 3 Independent Displays Input / Output USB 5 USB 2.0 ports (4 via header(s), 1 Type A) 6 USB 3.0 ports (4 rear, 2 via header(s)) Video Output 1 HDMI port(s), 1 DP (DisplayPort) port(s), 1 DVI - I port(s) Serial Port / Header 2 COM Ports (2 rear) TPM TPM Header Others SGPIO Header, SMbus header, GPIO Expansion Slots PCI-E 1 PCI-E 3.0 x16 Mini-PCIe with mSATA support, M.2 PCI-E 3.0 x4 with SATA support, M Key M.2 Form Factor: 2242, 2280 System BIOS BIOS Type AMI UEFI BIOS Features ACPI 5.0 DMI 2.3 PCI 3.0 Plug and Play (PnP) SMBIOS 3.0 UEFI 2.3.1 USB Keyboard support Management Software AMT NMI SuperDoctor® 5 vPro Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 4 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT FAN 4x 4-pin fan headers (up to 4 fans) Pulse Width Modulated (PWM) fan connectors PWM fan speed control System level control Thermal control tachometer fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI LED CPU / System Overheat LED Standby alert LED Other Features 8-pin 12v DC power connector ACPI power management ATX Power connector Chassis intrusion header Control of power-on for recovery from AC power loss CPU thermal trip support for processor protection Intel Smart Response Technology M.2 NGFF connector RoHS System level control WOL Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
