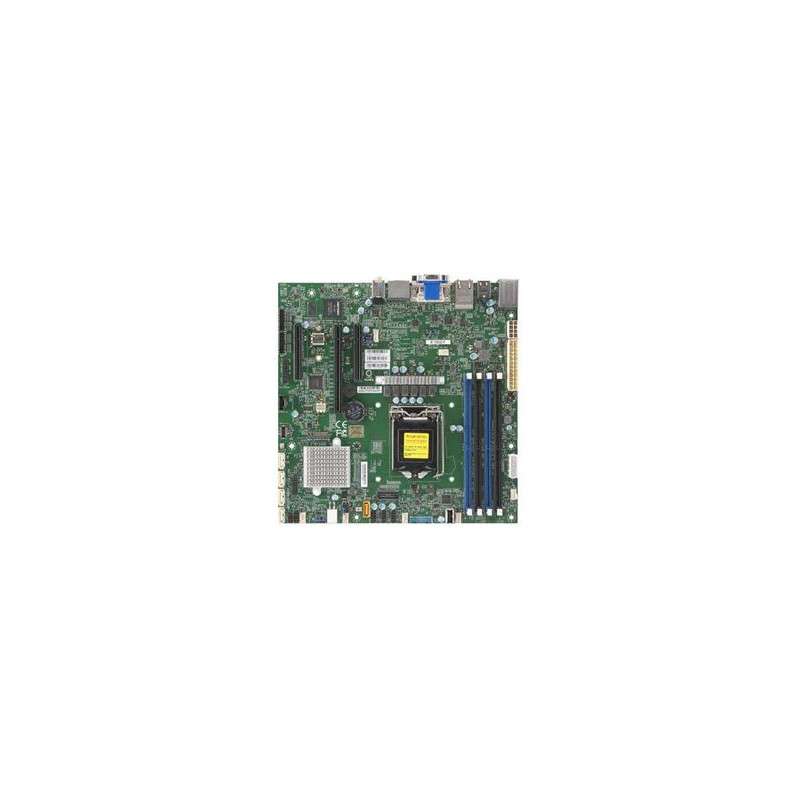

SUPERMICRO MB 1xLGA1151 (Xeon E3-21xx,i3), C246,4xDDR4,5xSATA3,M.2,3xPCIe3.0 (x16 2 x4),2xDP,DVI,VGA,Audio,2x LAN,IPMI

Product SKUs MBD-X11SCZ-F X11SCZ-F Physical Stats Form Factor uATX Dimensions 9.6" x 9.6" (24.38cm x 24.38cm) Processor/Cache CPU 8th/9th Generation Intel® Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor. Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP A graphic integrated CPU is required to have onboard video from the DVI and DP ports System Memory Memory Capacity Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots Memory Type 2666/2400/2133/1866/1600MHz ECC/Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C246 SATA Intel® C246 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Intel® PHY I219LM LAN controller Audio ALC 888S HD Audio Graphics Aspeed AST2500 BMC, Intel® HD Graphics 3 Independent Displays Input / Output LAN 2 RJ45 Gigabit Ethernet LAN ports USB 7 USB 2.0 ports (6 via headers, 1 Type A) 2 USB 3.1 Gen1 ports(2 via headers) 6 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 2 via headers) Video Output 1 VGA D-Sub Connector port, 1 DVI - I port, 2 DP (DisplayPort) ports, 3 Independent Displays Serial Port / Header 4 COM Ports (4 headers) TPM TPM Header & Chip both Expansion Slots PCI-E 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x4 (in x8 slot) M.2 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110 System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.1 SMBIOS 3.1 PCI FW 3.0 UEFI 2.6 RTC (Real Time Clock) Wakeup Management Software IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SuperDoctor® 5, Watchdog System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support Power Configurations +12V DC Power Input ATX Power connector ACPI Power Management PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 6 -fan status, Chassis intrusion header, Memory Voltages, Monitors CPU voltages, System temperature, VBAT FAN 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control Temperature Thermal Control for 6 Fan Connectors LED UID/Remote UID Other Features 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Dual Cooling Zones, M.2 NGFF connector, RoHS, UID Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SCZ-F 1 X11SCZ-F Motherboard I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00126-0N 1 Standard I/O Shield for X11SCZ with EMI Gasket Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SCZ-F 1 X11SCZ-F Motherboard QRG MNL-2086-QRG 1 Motherboard Quick Reference Guide I/O Cables CBL-0044L 5 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00126-0N 1 Standard I/O Shield for X11SCZ with EMI Gasket Optional Parts List Name Part Number Qty Description 1U I/O Shield MCP-260-00128-0B -- 1U I/O Shield for X11SCZ with EMC Gasket in SC510 Chassis 1U I/O Shield MCP-260-00127-0N -- 1U I/O Shield for X11SCZ with EMC Gasket in SC813 Chassis USB3.1 Cable CBL-CUSB-0835 -- Dual USB3.1 Type A Cable with Bracket Serial Port Cable CBL-CUSB-0984 -- Dual Serial Port Breakout Cable 20cm Chassis (Optimized for X11SCZ-F) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower #22 SC813MFTQC-350CB2 #22 SC510FT-203B SC512F-350B1 SC512F-350B1 SC731i-300B SC731i-403B SC731D-300B SC732D3-1200B SC733TQ-668B SC743AC-1200B-SQ SC745BAC-R1K28B2 = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU Server (Optimized for X11SCZ-F) Server Name SYS-1019C-HTN2 SYS-5019C-MHN2
