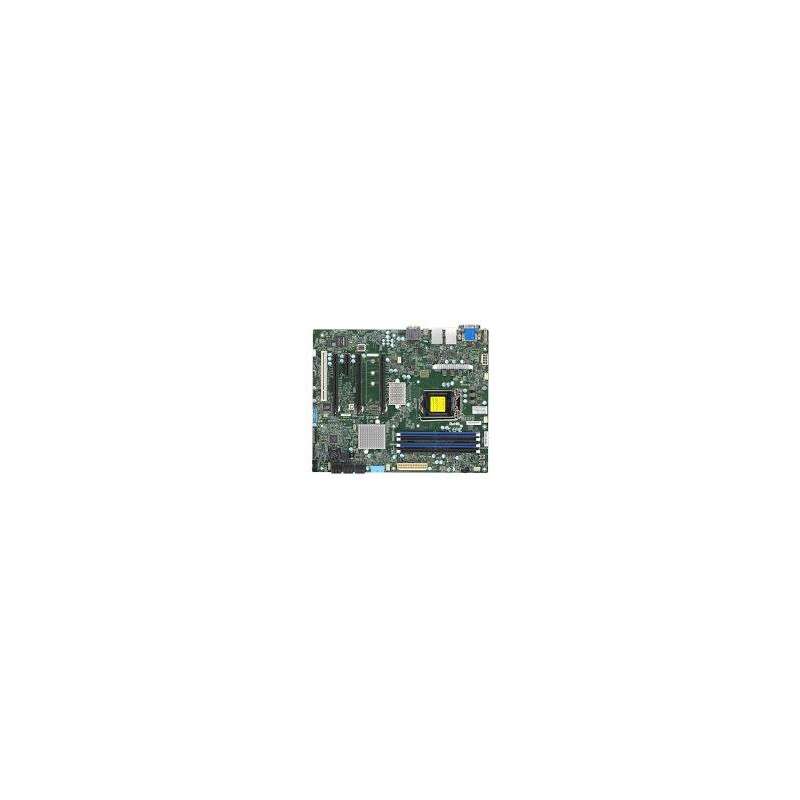

SUPERMICRO MB 1xLGA1151 (E3,i7), iC236,DDR4,6xSATA3,PCIe 3.0 (3 x16, 1 x1(in x4),1xPCI-32,1xM.2, HDMI,DP,DVI,Audio

Product SKUs MBD-X11SAT X11SAT Physical Stats Form Factor ATX Dimensions 12" x 9.6" (30.48cm x 24.38cm) Processor/Cache CPU Intel® 6th/7th Generation Core? i3 series, Intel® 6th/7th Generation Core? i5 series, Intel® 6th/7th Generation Core? i7 series, Intel® Xeon® processor E3-1200 v6/v5. Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? i3 Processors and Intel® Xeon® Processor E3-1200 v6 series System Memory Memory Capacity Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes 4GB, 8GB, 16GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C236 SATA Intel® C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 + 1 PCI-E M.2(PCI-E x4, 2242/2260/2280)(No Raid Support) Network Controllers Single LAN with Intel® Ethernet Controller I210-AT + Single Intel Ethernet PHY i219LM Audio ALC 888S HD Audio Graphics ***Display Port is Type C connector , support up to DP1.2, HDMI support up to HDMI2.0*** Input / Output USB 4 USB 2.0 ports (2 rear + 2 headers) 6 USB 3.1 Gen1 ports(2 rears, 4 headers) 1 USB 3.1 Gen2 ports + 1 Rear Type C) Video Output 1 DVI - D port, 1 DP (DisplayPort) port, 1 HDMI port, ***Display Port is Type C connector , support up to DP1.2, HDMI support up to HDMI2.0*** Serial Port / Header 1 COM Port (1 header) TPM 1 TPM Header Expansion Slots PCI-E 3 PCI-E 3.0 x16, 1 PCI-E 3.0 x11 - 5V PCI 32bit ***3 PCI-Ex16 slots are running at 16/NA/16 or 16/8/8.*** ***PCI-E x1 is in x4 slot*** M.2 M.2 Interface: 1 PCI-E 3.0 x4 Form Factor: 2242/2260/2280 Key: M-Key System BIOS BIOS Type AMI UEFI BIOS Features Plug and Play (PnP) DMI 2.3 PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 3.0 UEFI 2.3.1 RTC (Real Time Clock) Wakeup Management Software AMT, SuperDoctor® 5, vPro, Watchdog Power Configurations ACPI Power Management Keyboard Wakeup from Soft-Off CPU Fan auto-off in sleep mode Power-on mode for AC power recovery PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, VBAT FAN 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication Temperature CPU thermal trip support, I2C temperature sensing logic, PECI, Thermal Monitor 2 (TM2) support LED CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID Other Features 8-pin 12v DC power connector, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
