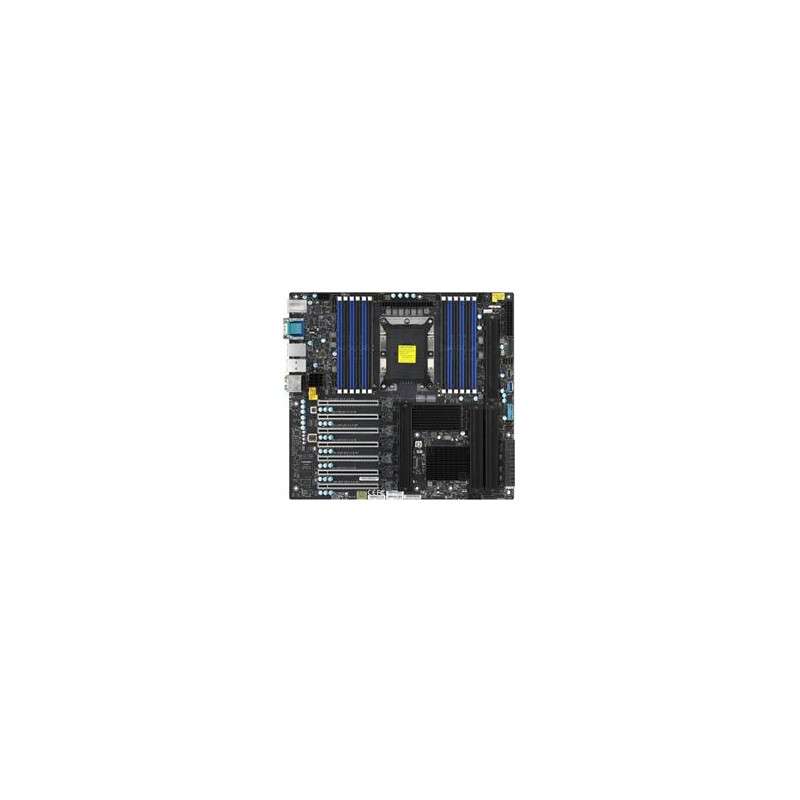

SUPERMICRO WS MB 1xLGA3647, iC621, 12x DDR4 ECC, 8xSATA3, 4xM.2, PCI-E 3.0 4,3(x16,x8),2x 10Gb LAN,IPMI

Product SKUs MBD-X11SPA-TF X11SPA-TF Physical Stats Form Factor E-ATX Dimensions 12" x 13" (30.48cm x 33.02cm) Processor/Cache CPU 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP Cores / Cache Up to 28 cores System Memory Memory Capacity Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz Up to 3TB Intel® Optane™ Persistent Memory 200 Series, DDR4-2666MHz, in 12 DIMM slots Memory Type N/A DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB Memory Voltage 1.2V On-Board Devices Chipset Intel® C621 SATA Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Aquantia® AQC107 10G Ethernet Controller Single LAN with Realtek RTL8211E PHY (dedicated IPMI) Audio ALC 888S HD Audio Graphics ASPEED AST2500 BMC VGA connector is dedicated for IPMI. Input / Output LAN 1 RJ45 Gigabit Ethernet LAN ports 1 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port USB 2 USB 2.0 ports (2 via headers) 6 USB 3.1 Gen1 ports (4 Rears Type A, 2 via headers) 4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 Type A + 1 Type C) Video Output 1 VGA port, VGA connector is dedicated for IPMI. Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM 1 TPM Header Expansion Slots PCI-E 4 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 (in x16 slot), PCI-Ex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8) M.2 M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1 Form Factor: 2242/2260/2280/22110 Key: M-Key M.2 support RAID 0,1(up to RAID 5, 10), VROC key is required for Raid. System BIOS BIOS Type 256Mb SPI Flash with AMI BIOS BIOS Features ACPI 3.0 / 4.0 SMBIOS 2.7 PCI FW 3.0 RTC (Real Time Clock) Wakeup Management Software IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SPM, SUM, SuperDoctor® 5, Watchdog System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support SuperDoctor 5 Power Configurations ACPI Power Management Main Switch Override Mechanism Power-on mode for AC power recovery CPU thermal trip support for processor protection PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT Temperature CPU thermal trip support, Monitoring for CPU and chassis environment, PECI LED CPU / System Overheat LED, Suspend static indicator LED Other Features Chassis intrusion header, CPU thermal trip support for processor protection, Dual Cooling Zones, Intel Smart Response Technology, RoHS, UID, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SPA-TF 1 X11SPA-TF Motherboard X11SPA series IO Shield MCP-260-00142-0N 1 SATA cable CBL-0044L 2 CPU-GPU power connector adapter CBL-PWEX-0663 1 M.2 Heatsink SNK-C0121L-1 4 Probably on motherboard Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SPA-TF 1 X11SPA-TF Motherboard X11SPA series IO Shield MCP-260-00142-0N 1 SATA cable CBL-0044L 6 CPU-GPU power connector adapter CBL-PWEX-0663 1 X11SPA-TF/X11SPA-T Quick Reference Guide MNL-2173-QRG 1 M.2 Heatsink SNK-C0121L-1 4 Probably on motherboard Optional Parts List Name Part Number Qty Description 4U CPU Heat Sink SNK-P0071APS4 1 4U Active CPU Heat Sink for SYS-5049A-T. TPM security module (optional, not included) AOM-TPM-9671V 1 TPM for X11SPA-TF TPM security module (optional, not included) AOM-TPM-9671V-S 1 TPM for X11SPA-TF TPM security module (optional, not included) AOM-TPM-9670V 1 TPM for X11SPA-TF TPM security module (optional, not included) AOM-TPM-9670V-S 1 TPM for X11SPA-TF Chassis (Optimized for X11SPA-TF) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC743AC-1200B-SQ SC743AC-668B SC743TQ-903B SC745BAC-R1K28B2 SC745BTQ-R1K28B-SQ SC842XTQC-R804B SC842TQC-865B SC842TQC-668B SC747BTQ-R1K62B = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU Server (Optimized for X11SPA-TF) Server Name SYS-5049A-T
