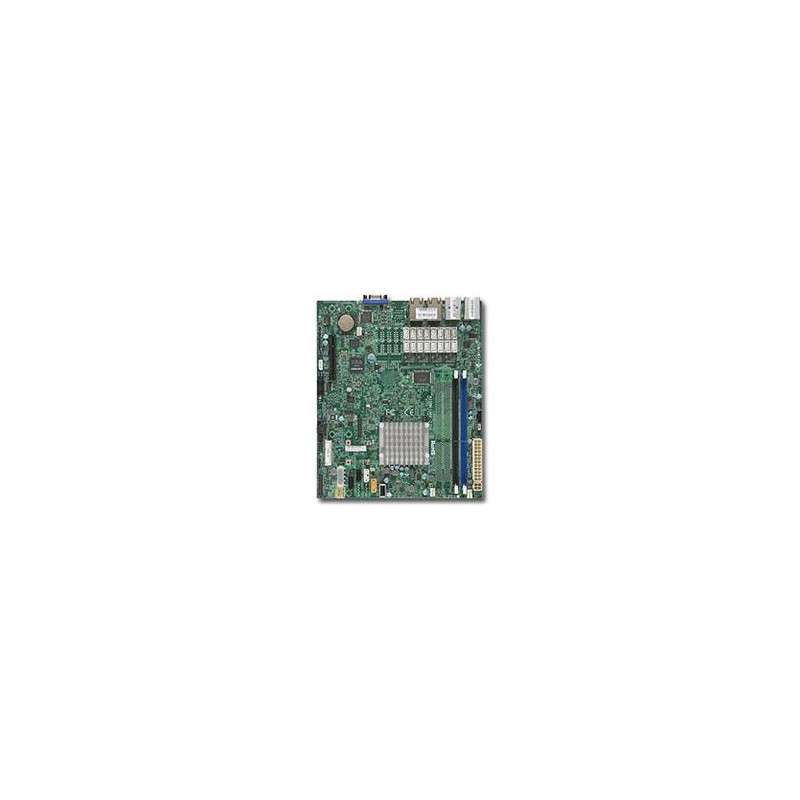

SUPERMICRO uATX MB Atom C2358 2-core (7W), 2x DDR3 ECC nECC, 2xSATA3, 2xSATA2, 1x PCI-E x4(in x8), 5xLAN, IPMI

Product SKUs MBD-A1SRM-LN5F-2358 -O ##A1SRM-LN5F-2358 (Retail Pack) MBD-A1SRM-LN5F-2358 -B ##A1SRM-LN5F-2358 (Bulk Pack) Physical Stats Form Factor ##mATX Dimensions ##8.0" x 9.6" (20.32cm x 24.38cm) Processor/Cache CPU ##Intel® Atom™ Processor C2358 (formerly Rangeley) ##CPU TDP 7W (2-Core), 1.7-2.0GHz ##FCBGA 1283 ##System-on-Chip System Memory Memory Capacity ##2x 240-pin DDR3 UDIMM slot ##Supports up to 16GB DDR3 ECC or non-ECC memory Memory Type ##1333MHz ECC or non-ECC DDR3 SDRAM, 240-pin gold-plated DIMMs, x8 width only DIMM Sizes ##8GB, 4GB, 2GB Memory Voltage ##1.5 V, 1.35 V On-Board Devices SATA ##SoC SATA3 (6Gbps), SATA2 (3Gbps) Network Controllers ##Quad GbE LAN w/ Intel C2000 SoC i354 - 2 pairs LAN bypass ##Single GbE LAN w/ Intel i210-AT IPMI ##Support for Intelligent Platform Management Interface v.2.0 ##IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ##Aspeed AST 2400 BMC USB 2.0 ##C2000 SoC Video ##BMC integrated Aspeed AST2400 Input / Output Serial ATA ##2x SATA3 (6Gbps) ports ##2x SATA2 (3Gbps) ports LAN ##5x RJ45 Gigabit Ethernet LAN ports with shared LAN IPMI 2.0 USB ##7x USB 2.0 ports (4 rear, 1 Type A, 2 via header) Serial Port ##2x Fast UART 16550 Serial Port (1 rear with RJ45, 1 via header) DOM ##1x SATA DOM (Disk on Module) power connector ##1x SuperDOM Supermicro SATA DOM with built-in power connector VGA ##1x VGA Port Others ##TPM header Chassis (Optimized for A1SRM-LN5F-2358 ) 1U Chassis: ## SC813MTQ-350CB ## SC512L-200B ## SC512L-260-LCD-Archived ## SC510T-203B ## SC510-203B Important Chassis Notes ##To support the new generation Intel® Xeon® processor-based motherboards, Revision N chassis is recommended. Please talk to your sales representative for details. Expansion Slots PCI-Express ##1x PCI-E 2.0 x4 (in x8) slot System BIOS BIOS Type ##128Mb SPI Flash EEPROM with AMI UEFI BIOS BIOS Features ##Plug and Play (PnP) ##DMI 2.3 ##ACPI 5.0 ##USB Keyboard support ##SMBIOS 2.7.1 ##UEFI Management Software ##IPMI (Intelligent Platform Management Interface) v2.0 ##SuperDoctor® 5 ##Watch Dog ##NMI ##SUM Power Configurations ##ACPI / ACPM Power Management ##Main Switch Override Mechanism ##Power-on mode for AC power recovery PC Health Monitoring Voltage ##Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +5V Standby, VBAT, Memory Voltages. FAN ##Total of 3x 4-pin fan headers ##3x fans with tachometer status monitoring ##Status monitor for speed control ##Status monitor for on/off control ##Low noise fan speed control ##Pulse Width Modulated (PWM) fan connectors Temperature ##Monitoring for CPU and chassis environment ##CPU thermal trip support LED ##System Overheat LED Other Features ##Chassis intrusion detection ##Chassis intrusion header ##Intel® QuickAssist Technology ##Intel® Turbo Boost Technology ##3x pairs software programmable GbE LAN Bypass ports ##12V DC or ATX power option Operating Temperature • 0°C to 60°C
