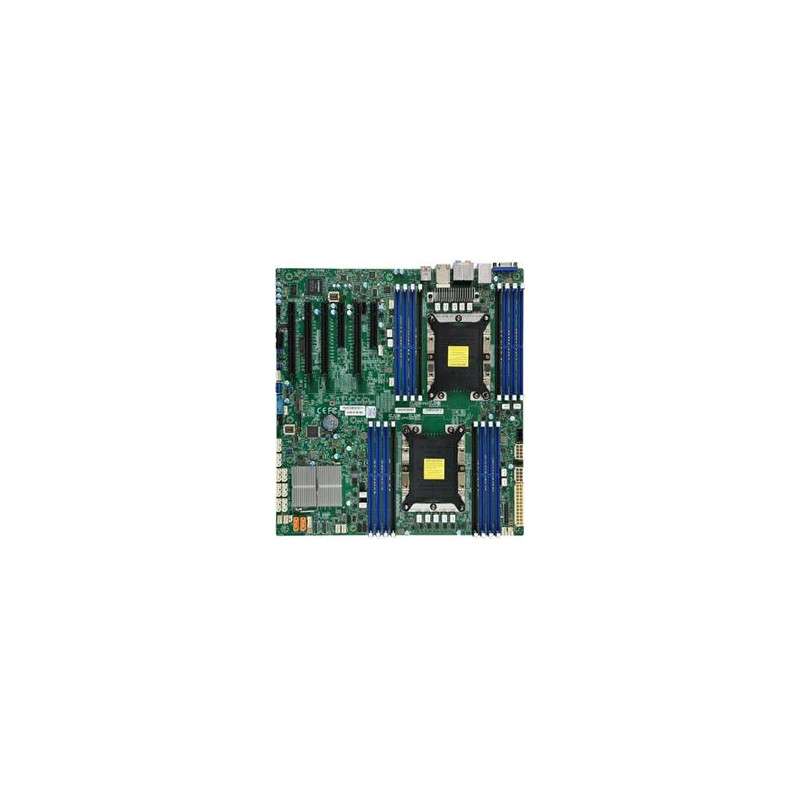

SUPERMICRO MB 2xLGA3647, iC621, 16x DDR4 ECC, 10xSATA3, 1xM.2, PCI-E 3.0 4,2(x16,x8),2x LAN

Product SKUs MBD-X11DAi-N X11DAi-N Physical Stats Form Factor E-ATX Dimensions 12" x 13" (30.48cm x 33.02cm) Processor/Cache CPU 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s System Memory Memory Capacity Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots; Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only). Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes RDIMM: 64GB, 128GB LRDIMM: 64GB, 128GB 3DS LRDIMM: 128GB, 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C621 SATA Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with GbE from C621 Audio 7.1 HD Audio Graphics Aspeed AST2500 BMC Input / Output USB 7 USB 3.2 Gen1 ports (4 rear + 2 via headers + 1 Type A)2 USB 3.2 Gen2 ports (2 rears (1 Rear Type A + 1 Rear Type C) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header) TPM 1 TPM Header Expansion Slots PCI-E 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 M.2 M.2 Interface: PCI-E 3.0 x4 Form Factor: 2260, 2280, 22110 Key: M-Key System BIOS BIOS Type AMI 32Mb SPI Flash ROM Management Software Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, Memory Voltages, Monitors CPU voltages FAN 7x 4-pin fan headers (up to 7 fans), 7 fans with tachometer status monitoring, PWM fan speed control, Status monitoring for speed control Temperature CPU thermal trip support, Monitoring for CPU and chassis environment LED CPU / System Overheat LED, Suspend static indicator LED, BMC/IPMI Heartbeat LED, Power LED Other Features Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
