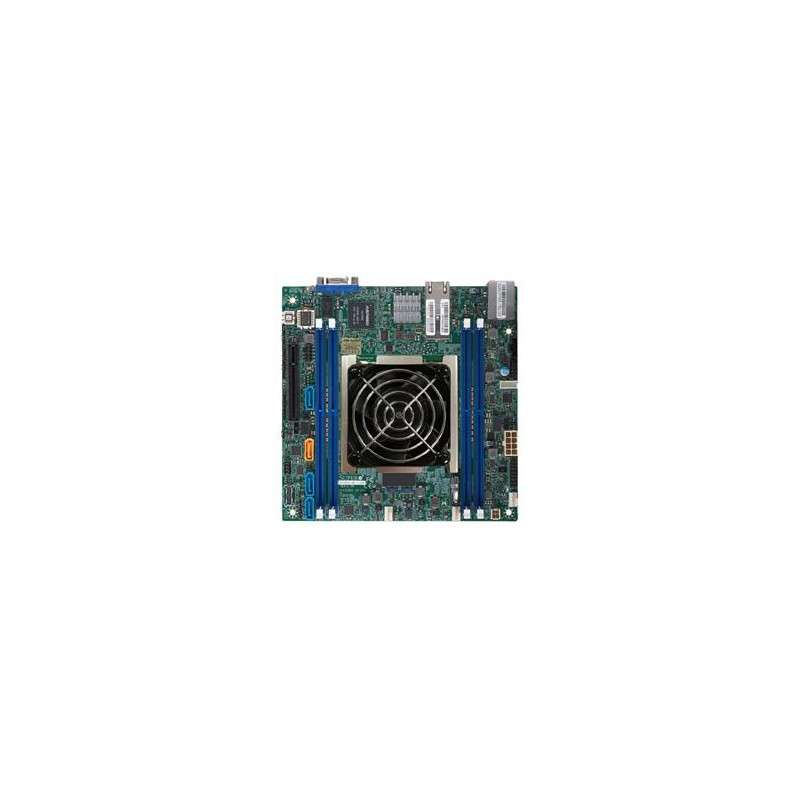

SUPERMICRO mini-ITX MB Xeon D-2141I (8C 16T), 4x DDR4 ECC rDIMM,8xSATA1x PCI-E 3.0 x8, 2x10GbE LAN,IPMI

Product SKUs MBD-X11SDV-8C+-TLN2F X11SDV-8C+-TLN2F Physical Stats Form Factor Mini-ITX Dimensions 6.75" x 6.75" (17.15cm x 17.15cm) Processor/Cache CPU Intel® Xeon® Processor D-2141I. Single Socket FCBGA-2518 supported, CPU TDP support 65W TDP Cores / Cache 8 cores, 16 threads / 11MB cache System Memory Memory Capacity Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB ECC LRDIMM, DDR4-2133MHz, in 4 DIMM slots Memory Type 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM (Operating speed up to 2133MHz) DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB LRDIMM: 16GB, 32GB, 64GB, 128GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset System on Chip SATA SoC controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe) IPMI ASPEED AST2500 Network Controllers Dual LAN with 10Gbase-T Graphics Aspeed AST2500 BMC Input / Output LAN 2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port USB 2 USB 2.0 ports (2 via headers, Type A)) 2 USB 3.0 ports (2 rear) Video Output 1 VGA port TPM TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x8 1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.1 SMBIOS 3.1 UEFI 2.6 PCI FW 3.2 Management Software Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SPM, SSM, SUM, SuperDoctor® 5, Watchdog Power Configurations +12V DC Power Input ACPI Power Management PC Health Monitoring Voltage +1.5V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3 -fan status, Memory Voltages, Monitors CPU voltages, Supports system management utility, VBAT FAN 3x 4-pin fan headers (up to 3 fans), 3 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control) Temperature Thermal Control for 3 Fan Connectors LED UID/Remote UID, BMC/IPMI Heartbeat LED, Power LED Other Features 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Dual Cooling Zones, Node Manager Support, RoHS, UID Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SDV-8C+-TLN2F 1 X11SDV-8C+-TLN2F Motherboard SATA Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF ATX Power Cable CBL-PWEX-1063 1 6CM ATX Power Signal Cable I/O Shield MCP-260-00084-0N 1 Standard I/O Shield for X11SDV-TLN2F Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SDV-8C+-TLN2F 1 X11SDV-8C+-TLN2F Motherboard SATA Cables CBL-0044L 4 57.5CM SATA FLAT S-S PBF U.2 Cable CBL-SAST-0956 1 55CM OCuLink to U.2 Cable with Molex Power Header ATX Power Cable CBL-PWEX-1063 1 6CM ATX Power Signal Cable QRG MNL-2019-QRG 1 Motherboard Quick Reference Guide I/O Shield MCP-260-00084-0N 1 Standard I/O Shield for X11SDV-TLN2F Optional Parts List Name Part Number Qty Description OCuLink to 4x SATA Cable CBL-SAST-0933 -- 50CM OCuLink to 4x SATA Cable Oculink to NVMe + power cable CBL-SAST-0955 -- OcuLink to PCIe, w/ Power, 45CM, SATA Power Cable CBL-SAST-0886 -- SATA 15pin x2 to 4pin 40CM --
