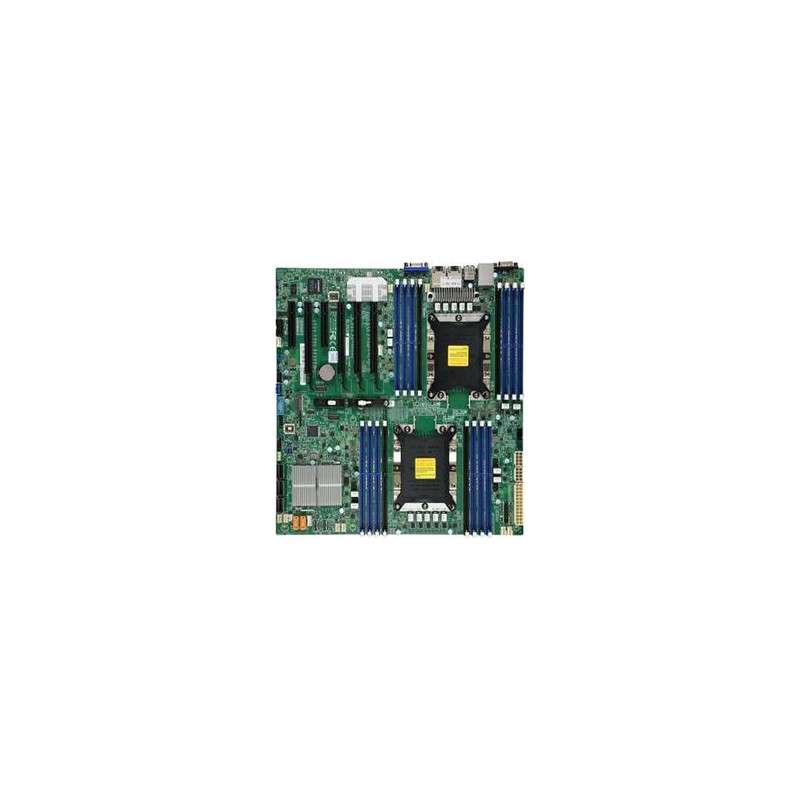

SUPERMICRO MB 2xLGA3647, iC621, 16x DDR4 ECC, 14xSATA3, 2xNVMe, 1xM.2, PCI-E 3.0 4,2(x16,x8),2x 10Gb LAN,IPMI, bulk

Product SKUs MBD-X11DPi-NT X11DPi-NT Physical Stats Form Factor E-ATX Dimensions 12" x 13" (30.48cm x 33.02cm) Processor/Cache CPU 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s Cores / Cache Up to 28 cores Note BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP System Memory Memory Capacity Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots; Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only); Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes RDIMM: 64GB LRDIMM: 128GB 3DS LRDIMM: 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C622 SATA Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with 10GBase-T with Intel® X722 + X557 Graphics ASPEED AST2500 BMC Input / Output SATA 14 SATA3 (6Gbps) port USB 4 USB 2.0 ports (2 rear + 2 via headers) 5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM 1 TPM Header Expansion Slots PCI-E 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 M.2 M.2 Interface: PCI-E 3.0 x4 Form Factor: 2260, 2280, 22110 Key: M-Key System BIOS BIOS Type AMI UEFI Management Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 3.3V standby, Monitors CPU voltages FAN 8x 4-pin fan headers (up to 8 fans), PWM fan speed control Temperature CPU thermal trip support, Monitoring for CPU and chassis environment, PECI LED CPU / System Overheat LED, UID/Remote UID, BMC/IPMI Heartbeat LED, Power LED Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, NCSI header, Node Manager Support, RoHS, SDDC, UID Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11DPi-NT 1 X11DPi-NT Motherboard I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O SHIELD Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11DPi-NT 1 X11DPi-NT Motherboard Quick Reference Guide MNL-1773-QRG 1 I/O Cables CBL-0476L 1 IPASS to 4 SATA cable I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O SHIELD Optional Parts List Name Part Number Qty Description TPM security module (optional, not included) AOM-TPM-9670V-S SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor TPM security module (optional, not included) AOM-TPM-9671V-S SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor Chassis (Optimized for X11DPi-NT) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC213AC-R1K23LPB SC825TQC-R1K03LPB SCLA25TQC-R609LP SC825TQC-R802LPB SC835TQC-R802B SC835TQC-R1K03B SC745BAC-R1K28B2 SC842TQC-865B = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU Server (Optimized for X11DPi-NT) Server Name SYS-6029P-TRT SYS-7049P-TRT SYS-2029P-C1RT
