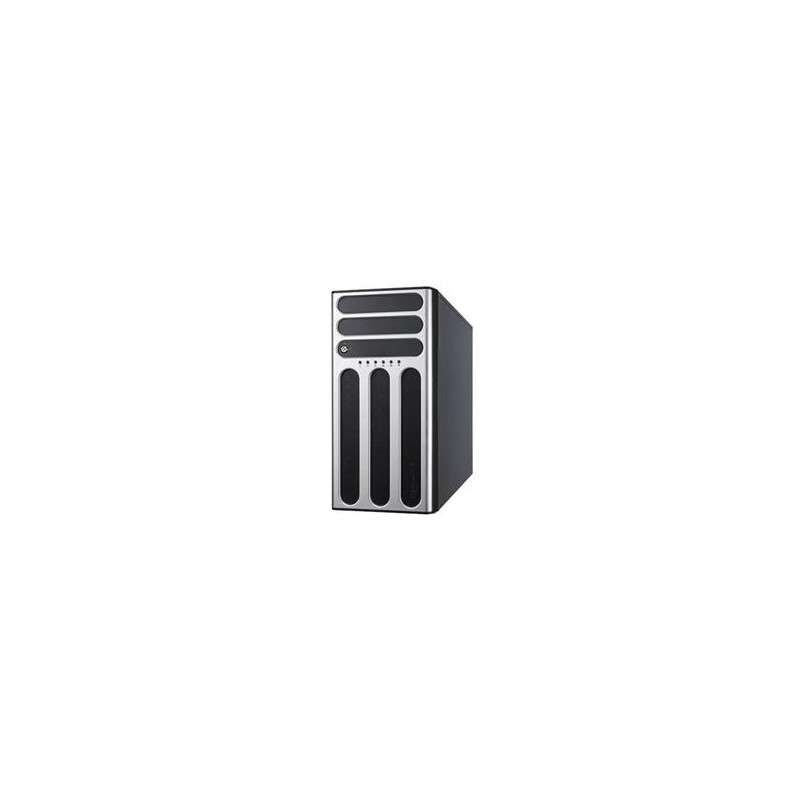

ASUS TS700-E9-RS8 DVD 2CEEUK EN WOC WOM WOS WOR IK9Intel Dual Socket P(LGA 3647) , C621, 12DIMM, 7PCIe, 8 Hotswap HDD

Processor / System Bus 2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family (205W) *Refer to support page for more information UPI (10.4 GT/s) Core Logic Intel® Lewisburg PCH C621 Memory Total Slots : 12 (6-channel per CPU, 6 DIMM per CPU) Capacity : Maximum up to 768GB RDIMM/Maximum up to 768GB LRDIMM/Maximum up to 1536GB LR-DIMM 3DS Memory Type : DDR4 2933/2666 RDIMM DDR4 2933/2666 LRDIMM DDR4 2933/2666 LR-DIMM 3DS Memory Size : 64GB, 32GB, 16GB, 8GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. Expansion Slots Total PCI-E Slots: 7 Slots 2 x PCIe 3.0 x16 slots (Gen3 x16 link), FH, FL 2 x PCIe 3.0 x16 slots (single Gen3 x16 link, dual Gen3 x8/x8 link), FH, FL 2 x PCIe 3.0 x16 slots (Gen3 x8 link), FH, FL 1 x PCIe 3.0 x16 slot (Gen3 x16 link), FH, HL Storage SATA Controller : Intel® C621 8 x SATA3 6Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) SATA Controller : ASMedia® SATA 6Gb/s controller 2 x SATA3 6Gb/s ports SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card ASUS PIKE II 3108 8-port SAS HW RAID card 12G SAS Support Drive Bays 8 x 3.5” Hot-swap Storage Bays 1 x M.2 Socket 3, supporting type 22110/2280/2260/2242 (PCIe Gen3 x4 and SATA mode) Auxiliary Storage FDD/CD/DVD 3 x 5.25" media bays (Options: No Device / DVD-RW / DVD-ROM) Networking 2 x Intel® I210AT Graphic Aspeed AST2500 with 64MB VRAM Front I/O Ports 1 x Headphone jack 1 x Microphone jack 2 x USB 2.0 ports 2 x USB 3.1 Gen 1 ports Rear I/O Ports 2 x USB 3.1 Gen2 ports (1 x Type-A and 1 x Type-C™) 4 x USB 3.1 Gen1 ports 2 x USB 2.0 ports (1 supports USB BIOS Flashback) 1 x USB BIOS Flashback button 1 x PS/2 and keyboard Mouse port 2 x RJ-45 LAN ports 1 x Optical S/PDIF Out port 5 x Audio Jacks Switch/LED Front Switch/LED: 1 x Power switch 1 x Location LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED 1 x Power LED LAN 1-2 LED OS Support Please find the latest OS support from http://www.asus.com/ Management Solution ASUS Control Center (Classic) ASMB9-iKVM for KVM-over-IP (optional) Regulatory Compliance BSMI, CE, RCM, FCC(Class A) Dimensions 455mm x 217.5mm x 545mm 17.91" x 8.54" x 21.45" Form Factor 5U/Tower Weight Net Weight: 18.33 Kg Gross Weight: 23.12 Kg Power Supply 800W 80PLUS Platinum Redundant Power Supply Module Rating: 100-127/200-240Vac,9A / 4.5A, 50 / 60Hz, Class I Environment Operating temperature: 10°C – 35°C Non operation temperature: -40°C – 70°C Non operation humidity: 20% – 90% (Non condensing) Note * Dual Intel® Socket P/LGA 3647 (Square) ** VROC (Virtual Raid on CPU) support, refer in the manual for detail. Part List MB WS C621E SAGE
