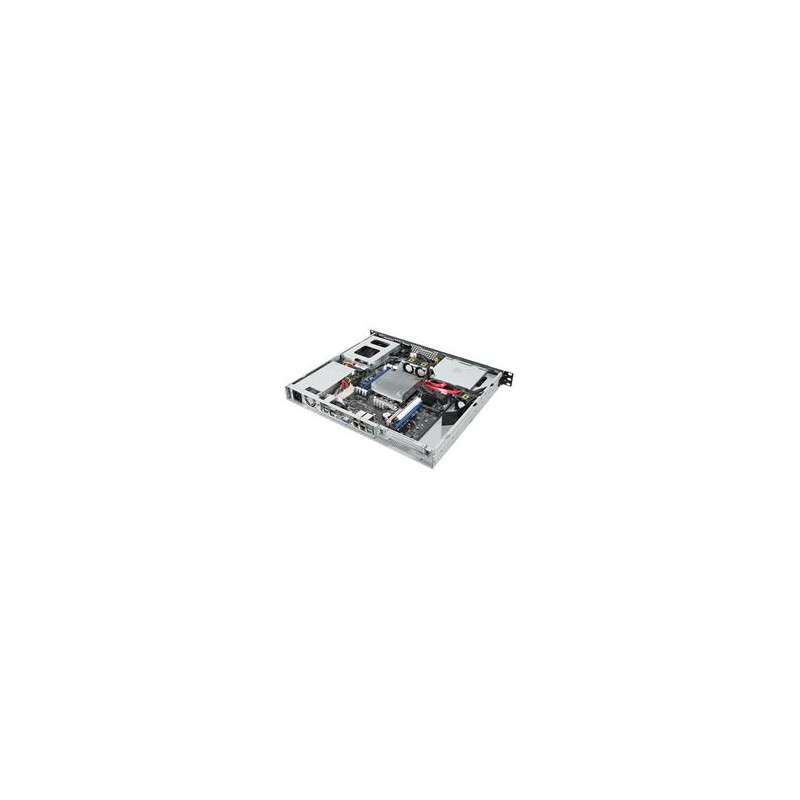

ASUS Intel Xeon E-21xx(95W), C242, 4DIMM, 1PCIe, 2x3.5" Internal HDD, 2M.2, 4xi210+1MgtLAN, 1 250W PSU Bronze

Specifications Processor / System Bus 1 x Socket LGA1151 Intel® Xeon® processor E-2100 family Intel® Xeon® processor E-2200 family The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor *Refer to support page for more information Generation E10 Core Logic Intel® C242 Chipset Memory Total Slots : 4 (2-channel) Capacity : Maximum up to 128GB UDIMM Memory Type : DDR4 2666/2400 UDIMM non ECC and with ECC Memory Size : 32GB, 16GB, 8GB, 4GB UDIMM * Refer to support page for more information Expansion Slots Total PCI/PCI-X/PCIe/PIKE Slots: 1 1 x PCIe x16 (x16 Gen3 Link) Storage SATA Controller : Intel® C242 Chipset 2 x Internal 3.5” HDD 2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode * Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1 ) Drive Bays with ODD, up to 2 x3.5" disk bay or option 1x3.5"+2x2.5" disk bay support without ODD, up to 2 x3.5" disk bay or option 1x3.5"+4x2.5" disk bay support Auxiliary Storage FDD/CD/DVD 1 x Slim-type Optical Drive Bay Options: No Device / DVD-RW Networking 4 x Intel® I210AT + 1 x Mgmt LAN Graphic Aspeed AST2500 with 32MB VRAM Front I/O Ports 2 x USB 3.0 ports 1 x VGA port Rear I/O Ports 1 x External Serial Port 4 x RJ-45 ports 2 x USB 3.1 ports 2 x USB 3.0 ports 1 x VGA port 1 x RJ-45 ports (One for ASMB9-iKVM)(Optional) Switch/LED Rear Switch/LED: 1 x Q-Code/Port 80 LED 1 x Power switch Front Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED LAN 1-4 LED OS Support Windows® Server 2016 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS *Subject to change without any notice Management Solution ASUS Control Center Enterprise (Optional) Optional ASMB9-iKVM for KVM-over-IP Regulatory Compliance BSMI, CE, RCM, FCC(Class B) Dimensions 380mm x 430mm x 44mm 14.96" x 16.93" x 1.73" Form Factor 1U Weight Net Weight: 7.5 Kg Gross Weight: 11.72 Kg Power Supply Single 250W 80 PLUS Bronze Power Supply Single 250W 80 PLUS Gold Power Supply Rating: 100-240Vac,4A ,50-60Hz, Class I Single 350W 80 PLUS Gold Power Supply Rating: 100-240Vac,6A-3A ,50-60Hz, Class I Environment Operating temperature: 10°C ~ 35°C Non operating temperature: -40°C ~ 70°C Non operating humidity: 20% ~ 90% ( Non condensing) Note * 2 x M.2 (NGFF 22110/2280/2260/2242) PCIE or SATA signal, gray SATA port will be disabled, when M.2 is used with SATA signal.
