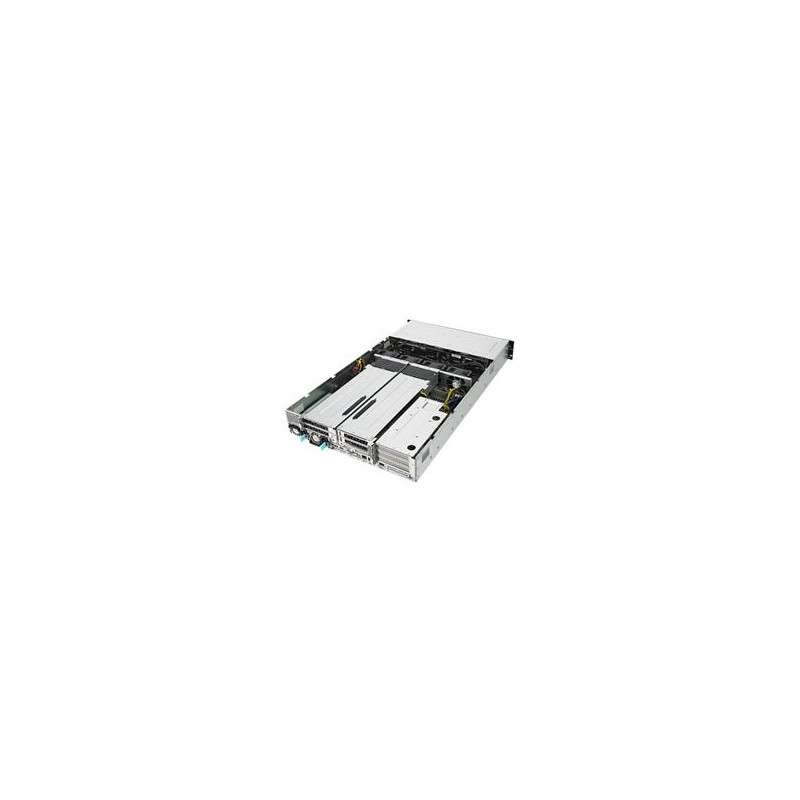

ASUS RS720-E9-RS8-G WOD 2CEE EN WOC WOM WOS WOR IK9(w o ODD, w o RAID Card, wo NVME, 1200W Platinum*2)Intel 2xSocket P(

Processor / System Bus 1st and 2nd Gen Xeon® Scalable Processor Family Generation E9 Core Logic Intel® C621 Chipset Memory Total Slots : 24 (6-channel per CPU, 12 DIMM per CPU) Capacity : Maximum up to 3072GB RDIMM Memory Type : DDR4 2933/2666 RDIMM DDR4 2933/2666 LRDIMM DDR4 2933/2666 LR-DIMM 3DS Intel® Optane™ DC Persistent Memory Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. * Intel® Optane™ DC Persistent Memory for 2nd Generation Intel Expansion Slots Total: 6+1 2 x PCI-E x16 (Gen3 x16 link) FH,FL (for GPU*2) 1 x PCI-E x16 (Gen3 x16 link) LP,HL 3 x PCI-E x16 (Gen3 x8 link) FH,HL 1 x OCP 2.0 Mezzanine (Gen3 x16 link) Storage SATA Controller : 10 x SATA3 6Gb/s ports + 1 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link) 9 x SATA3 6Gb/s ports + 2 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link) SATA Controller : Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) Intel®VROC (For Linux/Windows) (Support Software RAID 0/1/5/10 ) SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card(Optional) ASUS PIKE II 3108 8-port SAS HW RAID card(Optional) 12G SAS Support Drive Bays Front bays: 8 x 3.5" or 2.5" Hot-swap Storage Device Bays (4x SATA/SAS + 4x SATA/SAS/NVMe) 2 x M.2 (22110, 2280, 2260, 2242) (Support SATA/PCIe M.2,SATA RAID) Networking 2 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN Graphic Aspeed AST2500 with 64MB VRAM Multi-GPU Support Supports NVIDIA® 2-Way Geforce SLI™ technology NVIDIA Quadro VGA Series*2 Front I/O Ports 2 x USB 2.0 ports 1 x VGA port Rear I/O Ports 2 x USB 3.0 ports 1 x VGA port 2 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN port Switch/LED Rear Switch/LED: 1 x Power switch 1 x Q-Code/Port 80 LED 1xMessage LED 1xHDD LED 1x Location LED Front Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED LAN 1-4 LED * LAN3-4 for Mezzazine card use OS Support Management Solution ASUS Control Center (Classic) On-Board ASMB9-iKVM for KVM-over-IP Regulatory Compliance BSMI, CE, RCM, FCC(Class A) Dimensions 750mm x 444mm x 88mm 29.52" x 17.48" x 3.46" Form Factor 2U Weight Net Weight 15.98kg Gross Weight 23.25kg Power Supply 1+1 Redundant or 1+0 1300w 80 PLUS Platimun Power Supply (for CPU TDP above 165W, 205W CPU) 1200w 80 PLUS Platinum Power Supply(for CPU TDP 165W and below) Rating: 100-127Vac/200-240Vac,10A/5A ,50/60Hz, Class I (240Vdc Only for China) Environment Operation temperature: 10? ~ 35? *Operation temperature: 10? ~ 30? for CPU TDP 165W~205W Non operation temperature: -40? ~ 60? Non operation humidity: 20% ~ 90% (Non condensing)
