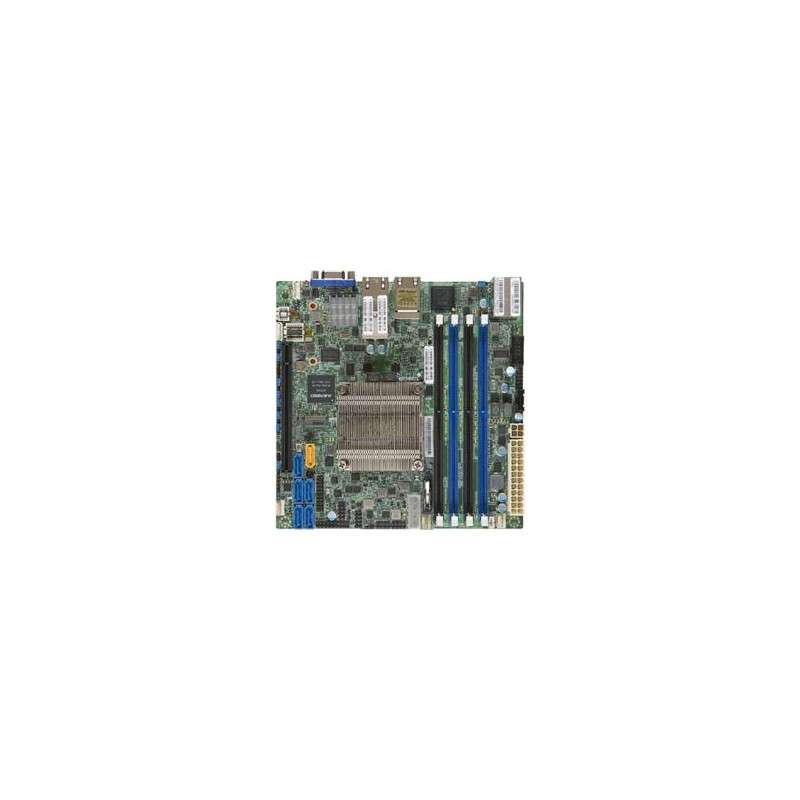

SUPERMICRO mini-ITX MB Xeon D-1557 (12-core), 4x DDR4 ECC DIMM,6xSATA1x PCI-E 3.0 x16, 2x10GbE+2x1GbE LAN,IPMI

Product SKUs MBD-X10SDV-12C-TLN4F X10SDV-12C-TLN4F Physical Stats Form Factor Mini-ITX Dimensions 6.7" x 6.7" (17.02cm x 17.02cm) Processor/Cache CPU Intel® Xeon® Processor D-1557. Single Socket FCBGA1667 supported, CPU TDP support 45W Cores / Cache 12 cores, 24 threads System Memory Memory Capacity Up to 128GB Registered ECC RDIMM Up to 64GB Unbuffered ECC/non-ECC UDIMM, in 4 DIMM slots Memory Type 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset System on Chip SATA SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 10 RSTe IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Network Controllers Dual LAN with Intel® Ethernet Controller I350-AM2 Dual LAN with 10Gbase-T Via D-1500 SoC Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) Graphics Aspeed AST2400 BMC Input / Output SATA 6 SATA3 (6Gbps) port LAN 2 RJ45 10GBase-T ports 2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port USB 4 USB 2.0 ports (4 headers, Type A)) 2 USB 3.0 ports (2 rear) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header) TPM TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x16 Support SATA devices M.2 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280 System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection RTC (Real Time Clock) Wakeup SMBIOS 2.8 UEFI 2.4 Management Software Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog System Management Software SUM Power Configurations ACPI Power Management CPU Fan auto-off in sleep mode Power-on mode for AC power recovery PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, Chassis intrusion header, HT, Memory, Memory Voltages, Supports system management utility, System level control, System temperature FAN 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for on/off control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI LED CPU / System Overheat LED Other Features 12V DC or ATX Power Source, Chassis intrusion detection, Chassis intrusion header, RoHS Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
