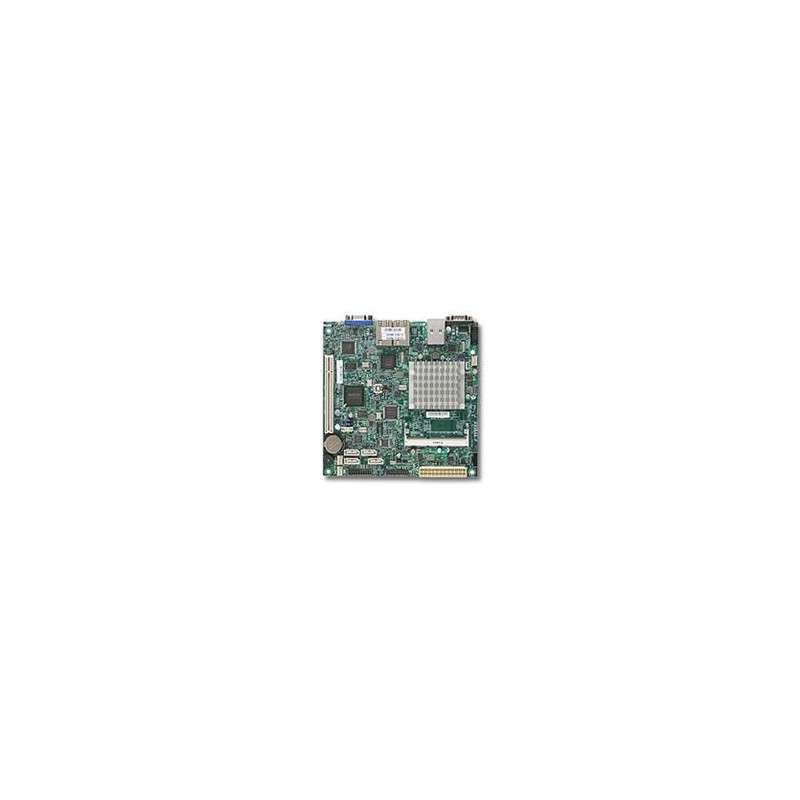

SUPERMICRO ITX MB Atom S1260, DDR3 ECC SODIMM,4xSATA3,1xPCI 32bit, RAID 0,1, 2xLAN,IPMI
Mini-ITX základní deska s procesorem Intel Atom S1260, až 8GB DDR3 ECC RAM a 4x SATA 3.0 porty. Nabízí RAID 0,1, dva Gigabit LAN porty a PCI 32-bit slot. Podpora IPMI pro vzdálenou správu a monitoring systému.
6 909 Kč bez DPH 5 710 Kč
Popis produktu
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
MBD-X9SBAA-F -O ##X9SBAA-F (Retail Pack)
MBD-X9SBAA-F -B ##X9SBAA-F (Bulk Pack)
Physical Stats
Form Factor ##Mini-ITX
Dimensions ##6.7" x 6.7" (17cm x 17cm)
Processor/Cache
CPU ##Intel® Atom™ S1260 (Centerton)
##System-on-Chip
##2.0GHz
##2C/4T, 64-bit, VT-x, HT
System Memory
Memory Capacity ##1x 204-pin DDR3 SO-DIMM socket
##Supports up to 8GB DDR3 ECC memory
Memory Type ##1333/1066/800MHz ECC DDR3 SDRAM, 204-pin gold-plated DIMMs
DIMM Sizes ##8GB, 4GB, 2GB
Memory Voltage ##1.5 V, 1.35 V
On-Board Devices
SATA ##Marvell 88SE9230
##SATA 3.0 (6Gb/s)
##Raid 0,1 support (Windows Only)
Network Controllers ##Intel i350AM2 Gigabit Ethernet
##Virtual Machine Device Queues reduce I/O overhead
##Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
##1x Realtek RTL8201N PHY (dedicated IPMI)s
USB ##Renesas uPD720201
IPMI ##Nuvoton WPCM450 BMC
Video ##Matrox G200eW
Input / Output
Serial ATA ##4x SATA 3.0 ports
LAN ##2x RJ45 Gigabit Ethernet LAN ports
##1x RJ45 Dedicated IPMI LAN port
USB ##2x USB 3.0 ports
Serial Port ##2 Fast UART 16550 Serial Port (1 via header and 1 at rear)
DOM ##DOM power connector support (Disk on Module)
VGA ##1x VGA Port
Others ##TPM header
Chassis (Optimized for X9SBAA-F)
1U Chassis ## CSE-504-203B
SuperServer(s) with X9SBAA-F
Model(s) ## SYS-5017A-EF
Expansion Slots
PCI ##1x 32-bit PCI slot (3.3V)
System BIOS
BIOS Type ##64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features ##Plug and Play (PnP)
##DMI 2.3
##PCI 2.3
##ACPI 1.0 / 2.0 / 3.0 / 4.0
##USB Keyboard support
##SMBIOS 2.7.1
##UEFI
Management
Software ##SuperDoctor® III
##Watch Dog
##NMI
Power Configurations ##ACPI / ACPM Power Management
##Main Switch Override Mechanism
PC Health Monitoring
Voltage ##Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
FAN ##Total of 3x 4-pin fan headers
##3x fans with tachometer status monitoring
##Status monitor for speed control
##Status monitor for on/off control
##Low noise fan speed control
##Pulse Width Modulated (PWM) fan connectors
Temperature ##Monitoring for CPU and chassis environment
##CPU thermal trip support
LED ##System Overheat LED
Other Features ##Chassis intrusion detection
##Chassis intrusion header
