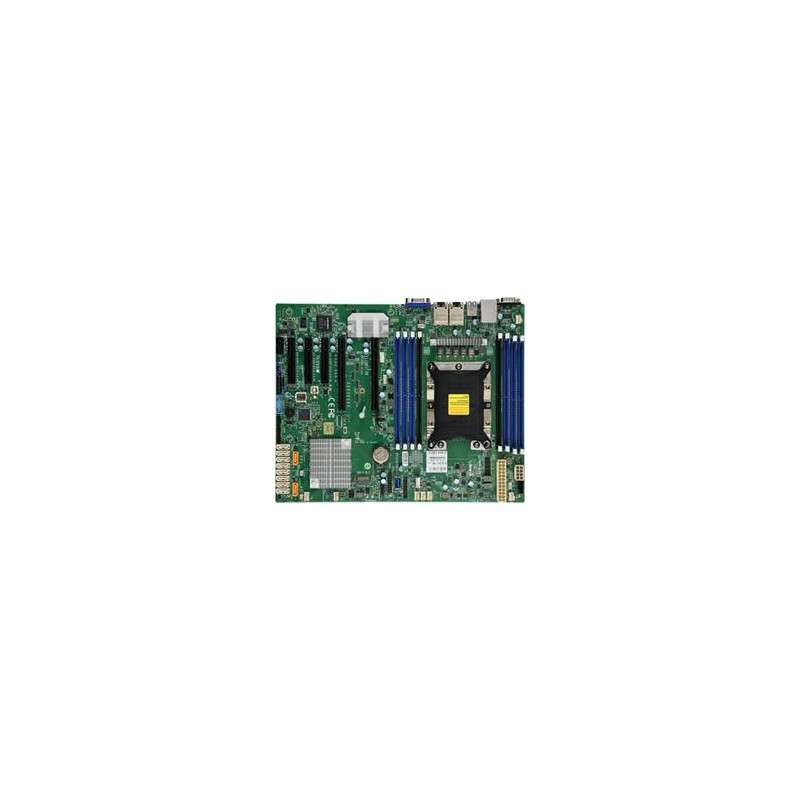

SUPERMICRO MB 1xLGA3647, iC622, 8x DDR4 ECC,10xSATA3, 1xM.2, PCI-E 3.0 2,2,1(x16,x8,x4),2x 10Gb LAN,IPMI

Product SKUs MBD-X11SPi-TF X11SPi-TF Physical Stats Form Factor ATX Dimensions 12" x 9.6" (30.48cm x 24.38cm) Processor/Cache CPU 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP Cores / Cache Up to 28 cores Note BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) System Memory Memory Capacity Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes RDIMM: 8GB, 16GB, 32GB, 64GB LRDIMM: 32GB, 64GB, 128GB 3DS LRDIMM: 64GB, 128GB, 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C622 SATA Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with 10GBase-T with Intel® X722 + X557 Graphics Aspeed AST2500 BMC Input / Output SATA 10 SATA3 (6Gbps) port LAN 2 RJ45 10GBase-T ports USB 6 USB 2.0 ports (2 rear + 4 headers) 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x16 (x16 or x8 ), 1 PCI-E 3.0 x8 (x0 or x8 ), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) M.2 M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2280, 22110 Key: M-Key Double Height Connector System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.0 RTC (Real Time Clock) Wakeup SMBIOS 3.0 or later Management Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT FAN 7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control Temperature CPU thermal trip support, PECI LED CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED Other Features ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SPi-TF 1 X11SPi-TF Motherboard I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SPi-TF with EMI Gasket Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SPi-TF 1 X11SPi-TF Motherboard QRG MNL-1900-QRG 1 Motherboard Quick Reference Guide I/O Cables CBL-0044L 6 57.5 cm SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SPi-TF with EMI Gasket Optional Parts List Name Part Number Qty Description TPM security module AOM-TPM-9670H SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor TPM security module AOM-TPM-9670V SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor TPM security module AOM-TPM-9671H SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor TPM security module AOM-TPM-9671V SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor Chassis (Optimized for X11SPi-TF) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC813MFTQC-350CB2 SC813MFTQC-R407CB SC113MFAC2-341CB SC113MFAC2-R606CB SC512F-350B1 SC113MFAC2-605CB SC515-350 SC515-R407 SC514-R407C SC823TQ-653LPB SC213LT-600LPB SC825TQC-R740LPB SC213A-R740LPB SC822T-333LPB 2U Heatsink:SNK-P0068APS4 SC833T-653B 2U Heatsink:SNK-P0068APS4 SC842TQC-668B = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU Server (Optimized for X11SPi-TF) Server Name SYS-5019P-MT SYS-5019P-MTR
