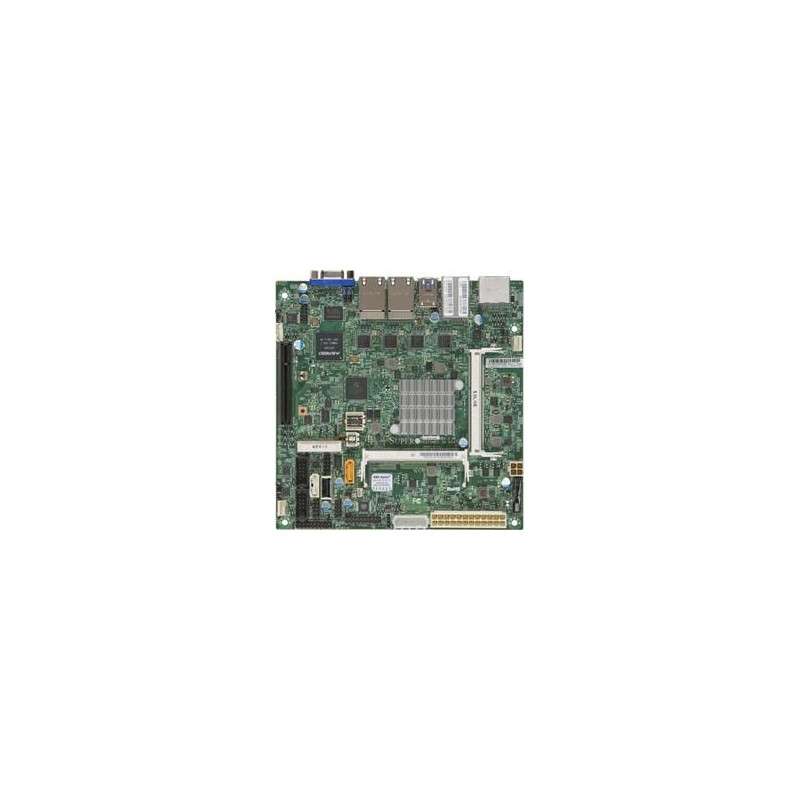

SUPERMICRO MB N3700 SoC, 2x ,SODIMM DDR3, 2x SATA3, PCIe 3.0 x1 in x8, IPMI , 4x LAN, audio

Product SKUs MBD-X11SBA-LN4F X11SBA-LN4F Physical Stats Form Factor Mini-ITX Dimensions 6.7" x 6.7" (17.02cm x 17.02cm) Processor/Cache CPU Intel® Pentium? Processor N3710. Single Socket FCBGA1170 supported, CPU TDP support 6W Cores / Cache 4 cores, 4 threads / 2MB L2 cache System Memory Memory Capacity Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3-1600MHz, in 2 DIMM slots Max total memory up to 8GB only Memory Type 1600/1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs DIMM Sizes 2GB, 4GB, 8GB Memory Voltage 1.35V On-Board Devices Chipset System on Chip SATA SoC controller for 2 SATA3 (6 Gbps) ports; IPMI IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Network Controllers Quad LAN with Intel® Ethernet Controller I210-AT Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) Audio ALC 888S HD Audio Graphics SoC, Aspeed AST2400 BMC Intel HD Graphics via SoC Input / Output SATA 2 SATA3 (6Gbps) port LAN 4 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port USB 7 USB 2.0 ports (2 rear + 4 headers + 1 Type A) 2 USB 3.0 ports (2 rear) Video Output 1 HDMI port, 1 DP (DisplayPort) port, 1 VGA port, Intel HD Graphics via SoC Serial Port / Header 2 COM Ports (2 headers) TPM 1 TPM Header Expansion Slots PCI-E 1 PCI-E 2.0 x1 (in x8 slot) 1 Mini-PCI-E with mSATA support System BIOS BIOS Type AMI UEFI BIOS Features ACPI 5.0 UEFI 2.3.1 Plug and Play (PnP) SMBIOS 2.7.1 DMI 2.3 USB Keyboard support RTC (Real Time Clock) Wakeup Management Software IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Memory, Memory Voltages, Supports system management utility, System level control, System temperature, VBAT FAN 2x 4-pin fan headers (up to 2 fans), Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, System level control, Thermal control tachometer fan connectors Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI LED Standby alert LED, CPU / System Overheat LED Other Features 12V DC or ATX Power Source, 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, System level control, UID, WOL Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
