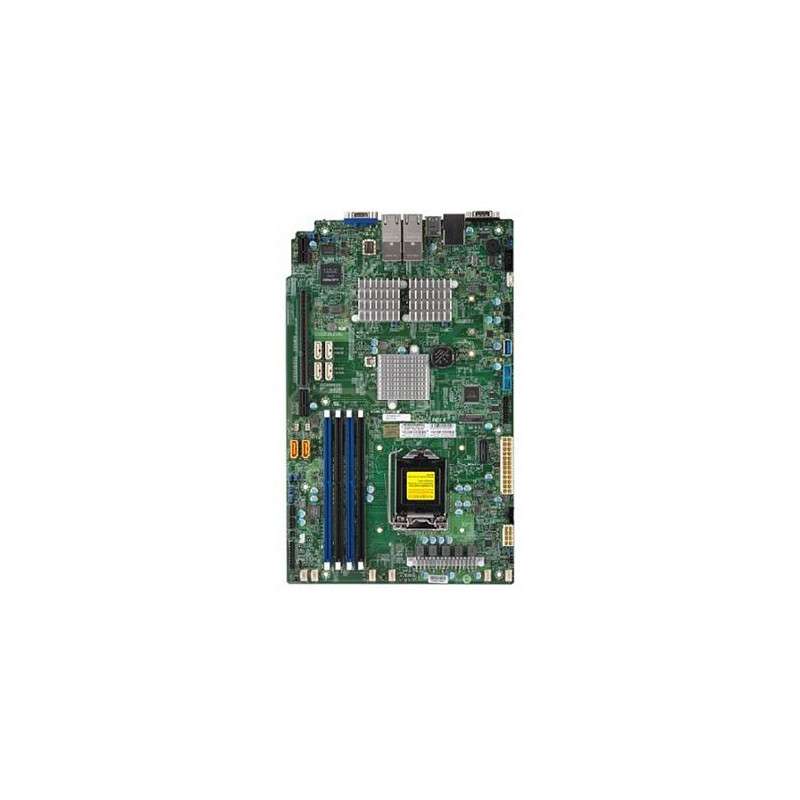

SUPERMICRO MB 1xLGA1151, iC236,DDR4,6xSATA3,PCIe 3.0 ((left:)1 x16(in WIO);(right:)1 x4(in x16)),1x M.2 NGFF,IPMI, 4xLAN

Product SKUs MBD-X11SSW-4TF X11SSW-4TF Physical Stats Form Factor Proprietary Dimensions 8" x 13" (20.32cm x 33.02cm) Processor/Cache CPU Intel® 6th/7th Generation Core? i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5. Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 80W TDP Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? i3 Processors and Intel® Xeon® Processor E3-1200 v6 series System Memory Memory Capacity 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes 4GB, 8GB, 16GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C236 SATA Intel® C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2400 BMC Network Controllers Quad LAN with Intel® X540 10GBase-T Ethernet Controller Graphics Aspeed AST2400 BMC Input / Output SATA 6 SATA3 (6Gbps) ports LAN 4 RJ45 10GBase-T ports USB 6 USB 2.0 ports (2 rear + 4 headers) 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x16 Left Riser Slot M.2 M.2 Interface: PCI-E 3.0 x4 Form Factor: 2260, 2280, 22110 Key: M-Key Double Height Connector System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features ACPI 1.0 / 2.0 / 3.0 / 4.0 APM 1.2 DMI 2.3 Hardware BIOS Virus protection PCI 2.3 Plug and Play (PnP) RTC (Real Time Clock) Wakeup SMBIOS 2.7.1 UEFI 2.3.1 USB Keyboard support Management Software Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT FAN 6x 4-pin fan headers (up to 6 fans), Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI LED UID/Remote UID, CPU / System Overheat LED Other Features Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, VHD, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
