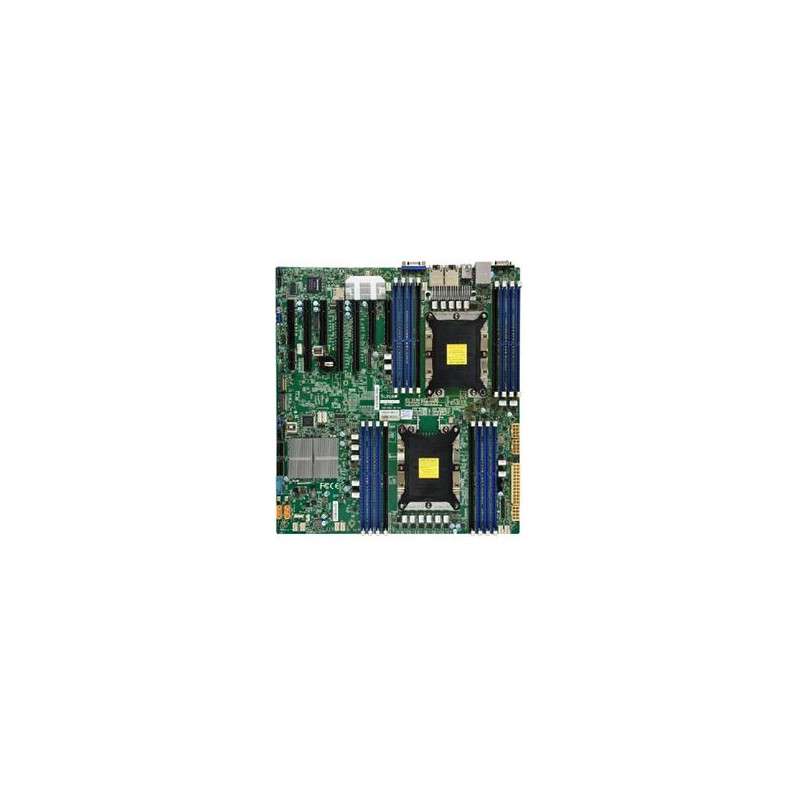

SUPERMICRO MB 2xLGA3647, iC621, 16x DDR4 ECC, 10xSATA3, 2x M.2 (NVMe), PCI-E 3.0 3,4(x16,x8), 2x 1Gb LAN, IPMI

Product SKUs MBD-X11DPH-i X11DPH-i Physical Stats Form Factor E-ATX Dimensions 12" x 13" (30.48cm x 33.02cm) Processor/Cache CPU 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s Note BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) System Memory Memory Capacity Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots; Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only); Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes RDIMM: 64GB LRDIMM: 64GB 3DS LRDIMM: 128GB, 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C621 SATA Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512 Input / Output SATA 10 SATA3 (6Gbps) ports LAN 2 1GbE LAN ports USB 7 USB 3.0 ports (4 rear + 2 headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 rear) TPM 1 TPM Header Expansion Slots PCI-E 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 M.2 M.2 Interface: 2 PCI-E 3.0 x4 Form Factor: 2242/2260/2280/22110 Key: M-Key (RAID 0,1 support) System BIOS BIOS Type AMI UEFI Management Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), Chipset Voltage, Memory Voltages, Monitors CPU voltages FAN 8x 4-pin fan headers (up to 8 fans), PWM fan speed control Temperature CPU thermal trip support, Monitoring for CPU and chassis environment, Thermal Control for 8 Fan Connectors LED Power LED, UID/Remote UID, BMC/IPMI Heartbeat LED Other Features 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, CPU thermal trip support for processor protection, NCSI header, RoHS, SDDC, UID, WOL Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11DPH-i 1 X11DPH-i Motherboard I/O Shield MCP-260-00042-0N 1 STD I/O SHIELD I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF Optional Parts List Name Part Number Qty Description TPM security module (optional, not included) AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor TPM security module (optional, not included) AOM-TPM-9670H 1 SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor TPM security module (optional, not included) AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor TPM security module (optional, not included) AOM-TPM-9671H 1 SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor Chassis (Optimized for X11DPH-i) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC826BE1C4-R1K23LPB SC829HE1C4-R1K62LPB SC216BE1C4-R1K23LPB SCLA26E1C4-R609LP SC836BE1C-R1K23B SC835TQC-R1K03B SC846BE1C-R1K23B SC847BE1C4-R1K23LPB
